Unhappy v8 roadster aluminum oil pan

So i just recieved my lsx V8 roadsters aluminum oil pan. i went to install it and the sump that comes with the kit is hitting to bottom of the oil pan not alowing the oil pan to seat almost a 1/4 inch. do i need to take off the studd/crank bolt and put the sump mount under it???? has anyone had this problem or did i maybe get the wrong part? there are no directions with these v8 roadster parts
boileropp is offline
Old 11-07-2015, 10:29 PM
  #2
V8 Miata Participant

ItsAllRigged's Avatar

Join Date: Sep 2014
Location: Central Florida
Posts: 256
Thanked 23 Times in 17 Posts
Default

You have to trim the ls windage tray so it will clear the new pan. You should also confirm the clearance between the oil pick up tube and pan. Do a google search but I seem to remember it being somewhere around 1/4 inch or less. My pick up tube needed one small washers worth of spacing to get it perfect.
ItsAllRigged is offline
Old 11-07-2015, 11:05 PM
  #3
V8 Miata Fan
Thread Starter

boileropp's Avatar

Join Date: Aug 2015
Location: Washington
Posts: 40
Thanked 0 Times in 0 Posts
Default

i took the windage tray out and the pick up tube was still hitting the bottom of the oil pan
boileropp is offline
Old 11-07-2015, 11:23 PM
  #4
V8 Miata Participant

ItsAllRigged's Avatar

Join Date: Sep 2014
Location: Central Florida
Posts: 256
Thanked 23 Times in 17 Posts
Default

Hmm, not sure then. Maybe bend the tube a bit more? My ls3 pick up didnt need any altering besides an extra washer.
ItsAllRigged is offline
Old 11-10-2015, 01:56 PM
  #5
Jim Stainer

charchri4's Avatar

Join Date: Jul 2011
Location: Sunny SW Minnesota
Posts: 2,462
Thanked 56 Times in 50 Posts
Default

Sorry your quota of questions is used up until you do a build thread with photos for us!
charchri4 is offline
Old 11-10-2015, 02:00 PM
  #6
Jim Stainer

charchri4's Avatar

Join Date: Jul 2011
Location: Sunny SW Minnesota
Posts: 2,462
Thanked 56 Times in 50 Posts
Default

OK I'll be nice I had to bend mine to fit right too but this is the perfect question to be asking in a build thread because you would probably get more responses. Photos of where it is hitting or what is happening would go a long way too.

If you have questions on how to do that or update your signature check this thread out. https://www.v8miata.net/site-tips-su...ps-tricks-329/
charchri4 is offline
Old 11-10-2015, 05:28 PM
  #7
V8 Miata Fan

dietcoke's Avatar

Join Date: Nov 2015
Location: Richmond Hill, GA
Posts: 35
Thanks: 0
Thanked 1 Time in 1 Post
Default

Originally Posted by ItsAllRigged View Post
You have to trim the ls windage tray so it will clear the new pan. You should also confirm the clearance between the oil pick up tube and pan. Do a google search but I seem to remember it being somewhere around 1/4 inch or less. My pick up tube needed one small washers worth of spacing to get it perfect.
Mine did not need any trimming at all, not sure why people think it needs a trim - the windage tray doesnt protrude enough to touch. Are you sure you aren't hitting a trapdoor? Put some grease in the pan or on the pickup and find out where its touching. If you are having issues, get in touch with Kevko, they make the pans.

dietcoke is offline
Old 11-10-2015, 07:12 PM
  #8
V8 Miata Fan
Thread Starter

boileropp's Avatar

Join Date: Aug 2015
Location: Washington
Posts: 40
Thanked 0 Times in 0 Posts
Default

Originally Posted by dietcoke View Post
Mine did not need any trimming at all, not sure why people think it needs a trim - the windage tray doesnt protrude enough to touch. Are you sure you aren't hitting a trapdoor? Put some grease in the pan or on the pickup and find out where its touching. If you are having issues, get in touch with Kevko, they make the pans.


I talked shandell from v8r I guess I have to put the mount for the suction tube bellow the stud/nut for the crank mount I'll post a pic when I try that
boileropp is offline
Old 11-10-2015, 07:15 PM
  #9
V8 Miata Participant

ItsAllRigged's Avatar

Join Date: Sep 2014
Location: Central Florida
Posts: 256
Thanked 23 Times in 17 Posts
Default

Originally Posted by dietcoke View Post
Mine did not need any trimming at all, not sure why people think it needs a trim - the windage tray doesnt protrude enough to touch. Are you sure you aren't hitting a trapdoor? Put some grease in the pan or on the pickup and find out where its touching. If you are having issues, get in touch with Kevko, they make the pans.

I used play-do during mock up. And it was the ls windage tray stopping the pan from bolting up.
ItsAllRigged is offline
Old 11-10-2015, 10:40 PM
  #10
V8 Miata Fan

dietcoke's Avatar

Join Date: Nov 2015
Location: Richmond Hill, GA
Posts: 35
Thanks: 0
Thanked 1 Time in 1 Post
Default

Originally Posted by ItsAllRigged View Post
I used play-do during mock up. And it was the ls windage tray stopping the pan from bolting up.

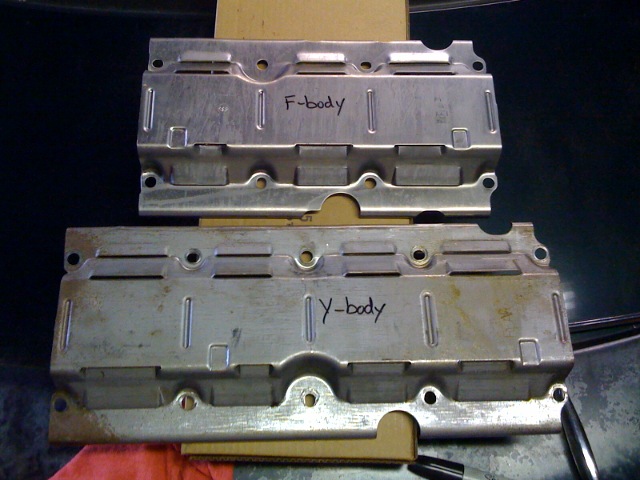

Get the correct tray. An LS3 tray will hit, an f body tray will not. This shows the difference - just one bank shorter. Same as cutting the ls3 tray.
Attached Thumbnails v8 roadster aluminum oil pan-fvsywindage.jpg
dietcoke is offline
Old 11-11-2015, 10:09 AM
  #11
V8 Miata Participant

ItsAllRigged's Avatar

Join Date: Sep 2014
Location: Central Florida
Posts: 256
Thanked 23 Times in 17 Posts
Default

Originally Posted by dietcoke View Post
Get the correct tray. An LS3 tray will hit, an f body tray will not. This shows the difference - just one bank shorter. Same as cutting the ls3 tray.
So this wouldve been the post to put up before saying you dont know why people trim pans.
ItsAllRigged is offline
Old 11-11-2015, 02:58 PM
  #12
Jim Stainer

charchri4's Avatar

Join Date: Jul 2011
Location: Sunny SW Minnesota
Posts: 2,462
Thanked 56 Times in 50 Posts
Default

+1 the F body tray doesn't have to be trimmed.
charchri4 is offline
Old 11-12-2015, 03:17 AM
  #13
V8 Miata Fan

dietcoke's Avatar

Join Date: Nov 2015
Location: Richmond Hill, GA
Posts: 35
Thanks: 0
Thanked 1 Time in 1 Post
Default

Originally Posted by ItsAllRigged View Post
So this wouldve been the post to put up before saying you dont know why people trim pans.
It's an ls1 swap pan, not an ls3 or an ls2 swap pan.

All ls1s have the short tray, and will never need to be trimmed. Potato potato, lol.

Truthfully if cutting a windage tray is the worst thing any of us have to do, its a good swap.
dietcoke is offline
