Default Help: Rear Boot recommendation - grease leak (7.5 diff)

Hi Team,

I'm nearly complete with my monster miata build but i'm having some grease leakage from the rear boots that were a part of Martin's Monster Miata kit.
I've put about 3k on the car .

I've read in some forums that going with a Ford Ranger or Ford Taurus set of boots (smaller) would work. Does anyone have any prior experience.
I"m running a 7.5 diff out of an Thunderbird.
I'm happy to provide pics or more details.

Thanks for the time.

If someone (moderator) can help direct me to the right thread. I'd be grateful.

R,
Chris
Old 07-07-2015, 08:48 PM
  #2
V8 Miata Protégé

SupaDupaSteve's Avatar

Join Date: Nov 2014
Location: South FL
Posts: 485
Received 37 Likes on 33 Posts
Default

I seem to recall some people using an Audi boot. Im not sure of the specifics behind it but I'm sure if you do a little searching you can find some info.
Old 07-07-2015, 10:14 PM
  #3
V8 Miata Enthusiast

.boB's Avatar

Join Date: Oct 2013
Location: Colorado Springs, CO
Posts: 421
Likes: 0
Received 33 Likes on 27 Posts
Default

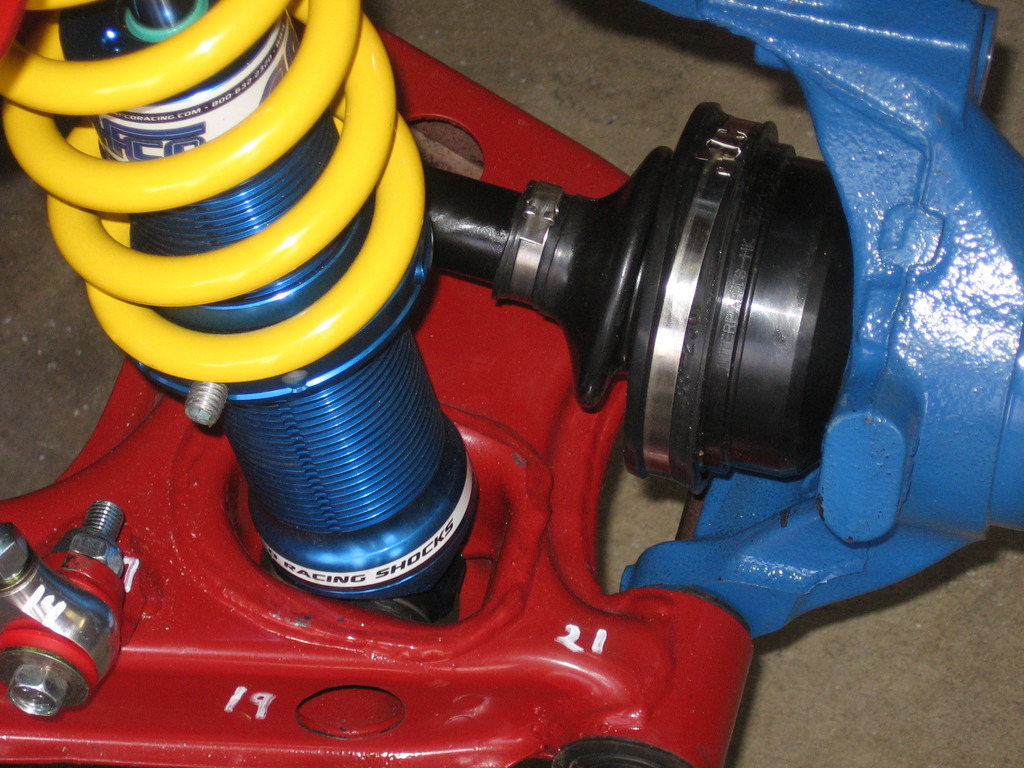

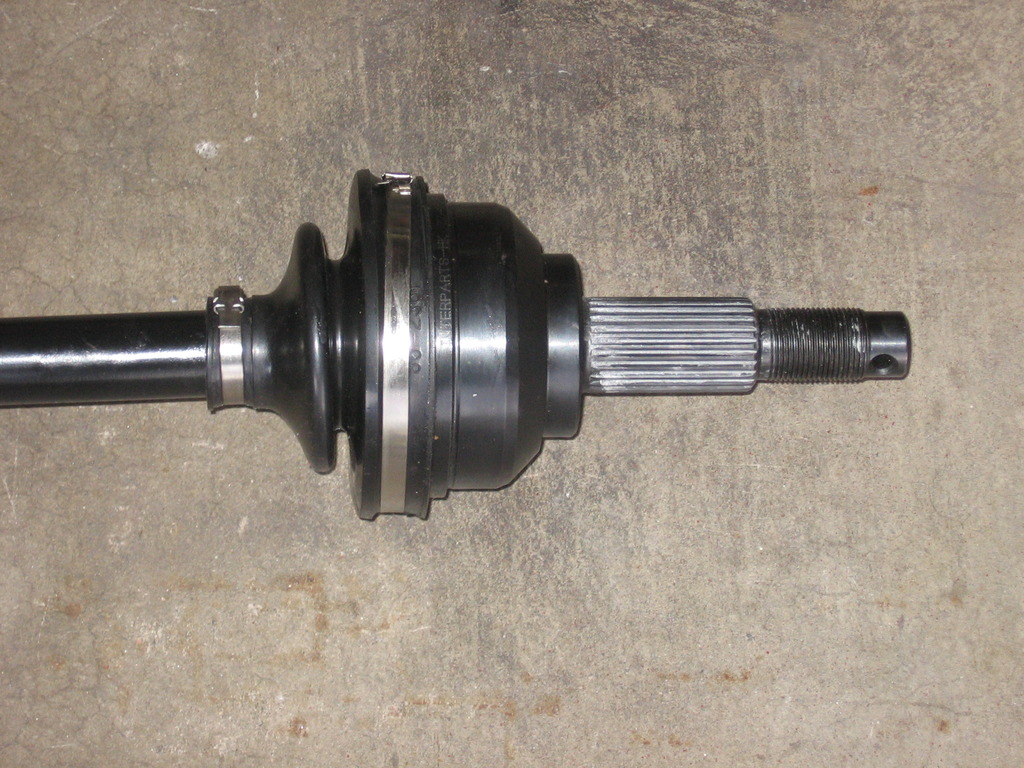

I'm using V8R heavy duty axles. The supplied boots just barely touched the shock body on one side only. I changed them over to Audi boots. The fit is much better.



Attached Thumbnails Help: Rear Boot recommendation - grease leak (7.5 diff)-img_7559_zpsecma8aml.jpg   Help: Rear Boot recommendation - grease leak (7.5 diff)-img_7560_zpsdqijggsz.jpg
Old 07-08-2015, 07:48 AM
  #4
V8 Miata Zealot

tbone heller's Avatar

Join Date: Mar 2010
Location: Canton, Georgia
Posts: 1,206
Received 48 Likes on 45 Posts
Default

I switched over to the Audi boot as well.
Old 07-08-2015, 08:04 AM
  #5
V8 Miata Fan

Casey's Avatar

Join Date: Nov 2009
Posts: 83
Likes: 0
Received 2 Likes on 2 Posts
Default

I just ordered two of these yesterday: http://www.amazon.com/gp/product/B00...ilpage_o00_s00

I believe they are the 'Audi boot'.
Old 07-08-2015, 01:37 PM
  #6
V8 Miata Zealot

tbone heller's Avatar

Join Date: Mar 2010
Location: Canton, Georgia
Posts: 1,206
Received 48 Likes on 45 Posts
Default

Got mine from Rockauto for $10.88.
Old 07-08-2015, 02:46 PM
  #7
Jim Stainer

charchri4's Avatar

Join Date: Jul 2011
Location: Sunny SW Minnesota
Posts: 2,462
Received 62 Likes on 55 Posts
Default

I just repacked my joints and Martin said to use this grease. http://www.amazon.com/gp/product/B00...ilpage_o08_s00
Personally I thought it a bit thin and like the Amzoil stuff better but whatever. Be sure and shield or wrap your exhaust where it runs under the joints. Yeah ask me how I know about that too...

Write up on the Audi boots is here. Jim and Jenna build diary, Miata LS1 Conversion: The 3rd half of the back half, 8.8 Ford axles in a Miata. Martin said he tried them and it didn't work but I've got 15,000 miles on mine with no issues at all.
Old 07-08-2015, 05:15 PM
  #8
Administrator

MRM331's Avatar

Join Date: Nov 2009
Location: Allentown, PA
Posts: 1,120
Likes: 0
Received 38 Likes on 32 Posts
Default

I just rebuilt mine using the Audi boots and Redline CV2. I also repacked my front hubs with the same stuff.

The Audi boots are the current "best" to use. In the past it was a Taurus outer boot.

-Jason
