jrmotorsports55

Pulled out the tranny that I had rebuilt myself as it was make my a whining/whirring noise in all gears and neutral, that I felt was one of the front bearings. I got the tranny out and was able to wiggle the input shaft a lot, so it appears the preload was set too loose. Tore it apart, and everything inside looks good, so I was just thinking of re-shimming the input shaft to correct the preload, and put it back in. Only has a few hundred miles on it since the rebuild. Think this sounds right, or should I replace the bearings? I put the race on the input bearing, and it spins freely, no binding. Thoughts?

jrmotorsports55

jrmotorsports55

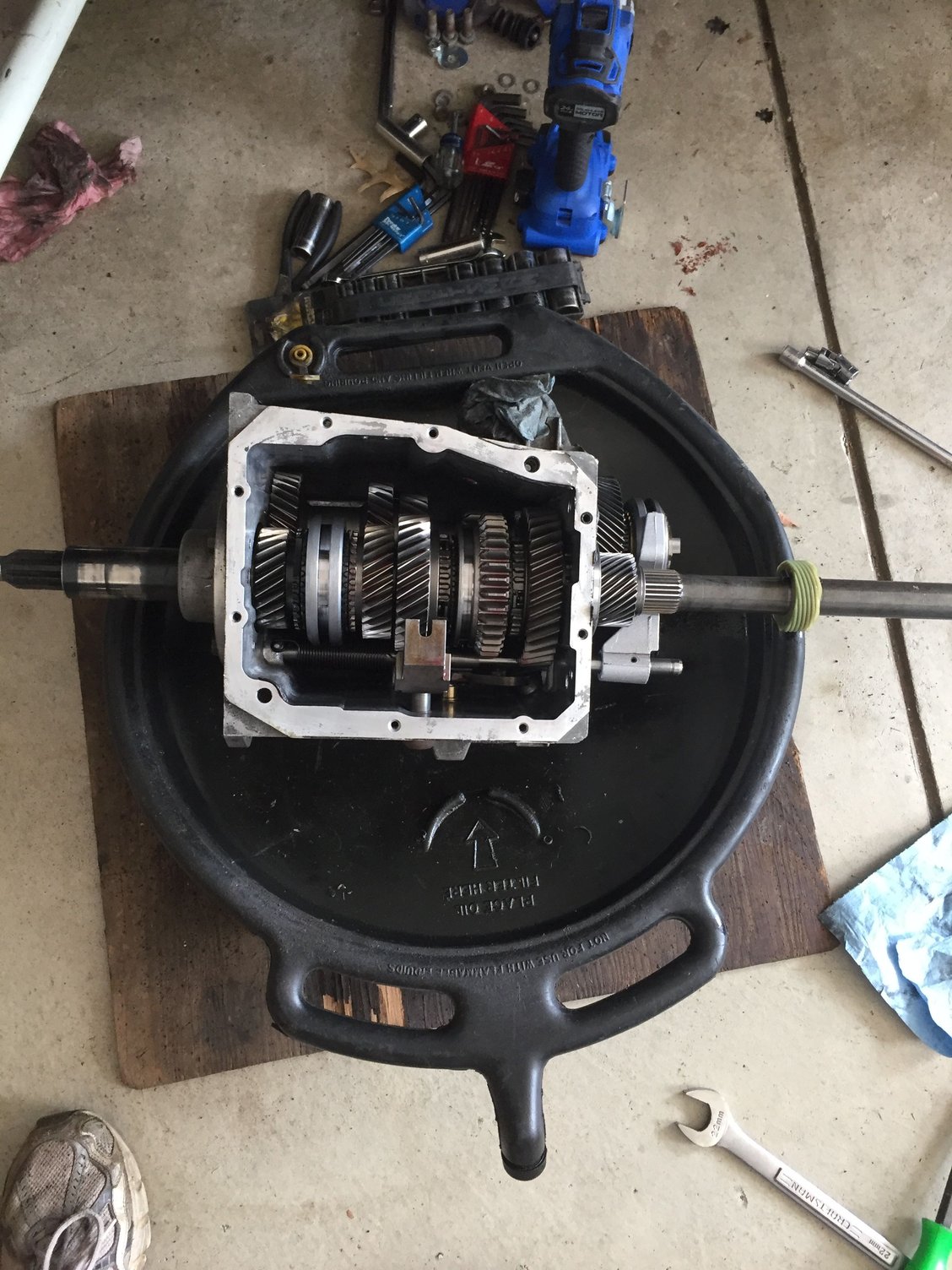

I keep looking at it, and still have not found any issues. Really leaning towards just re-setting endplay at .000 and buttoning it up.

tbone heller

What does the bearing look like on the end of the main shaft? The needle bearing that the input shaft slides over.

jrmotorsports55

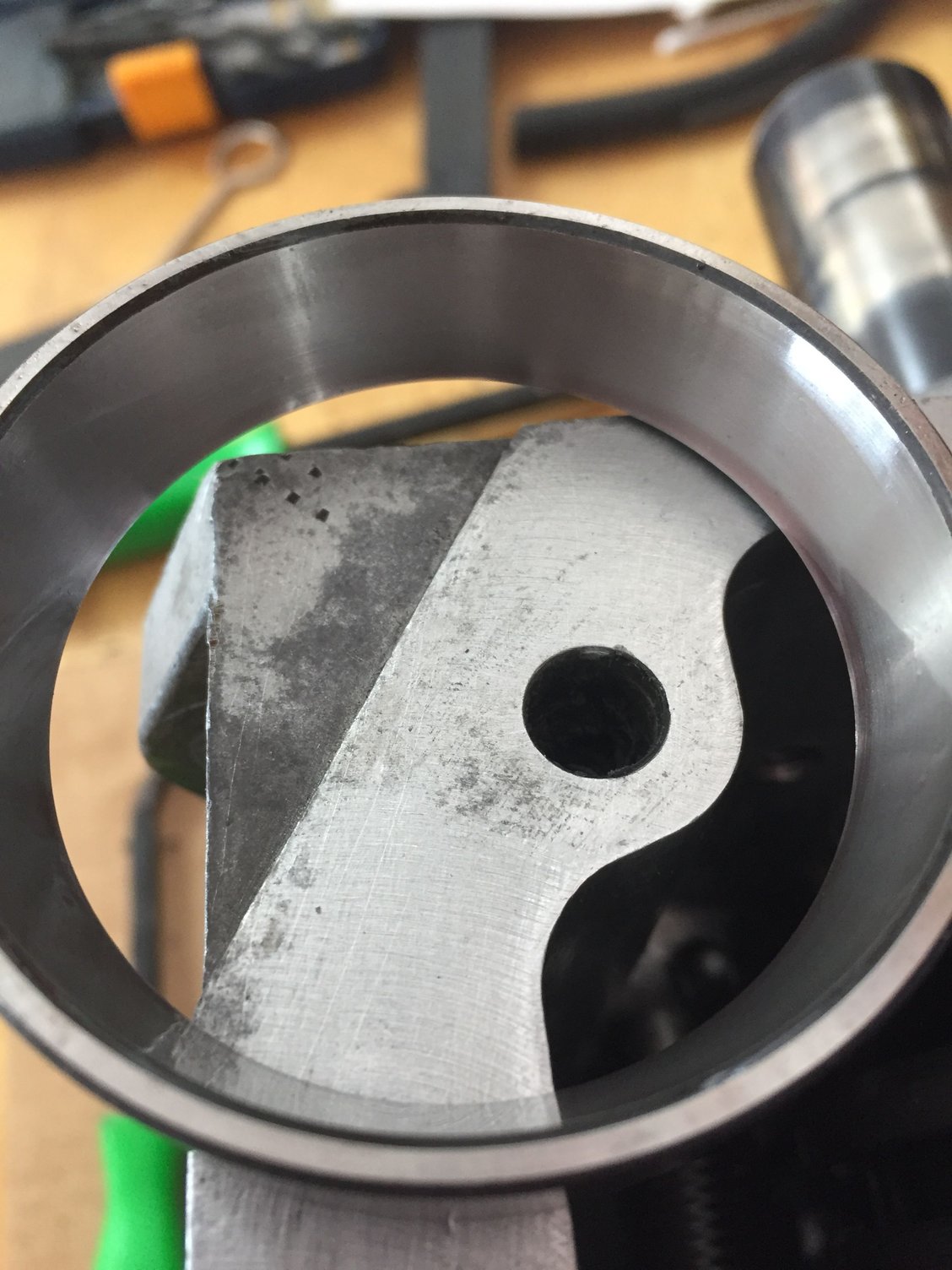

I have the non-tapered bearing setup. The face of the mainshaft that contacts the needles in the input shaft looks perfect, no damage.

jrmotorsports55

Put it back together after re-setting the endplay at .000, installed it and it appears to be good to go, no more whining, runs/shifts smooth.
