V8 Miata Exhaust Air In/Air Out...This area focuses on allowing your V8 Miata to exhale in the most efficient and acoustically pleasing manner possible.

LS3 EROD vs G8 LS3 exhaust manifold fit

Old 02-24-2019, 09:37 PM
  #1
V8 Miata Noob
Thread Starter

Join Date: Dec 2009
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Smile LS3 EROD vs G8 LS3 exhaust manifold fit

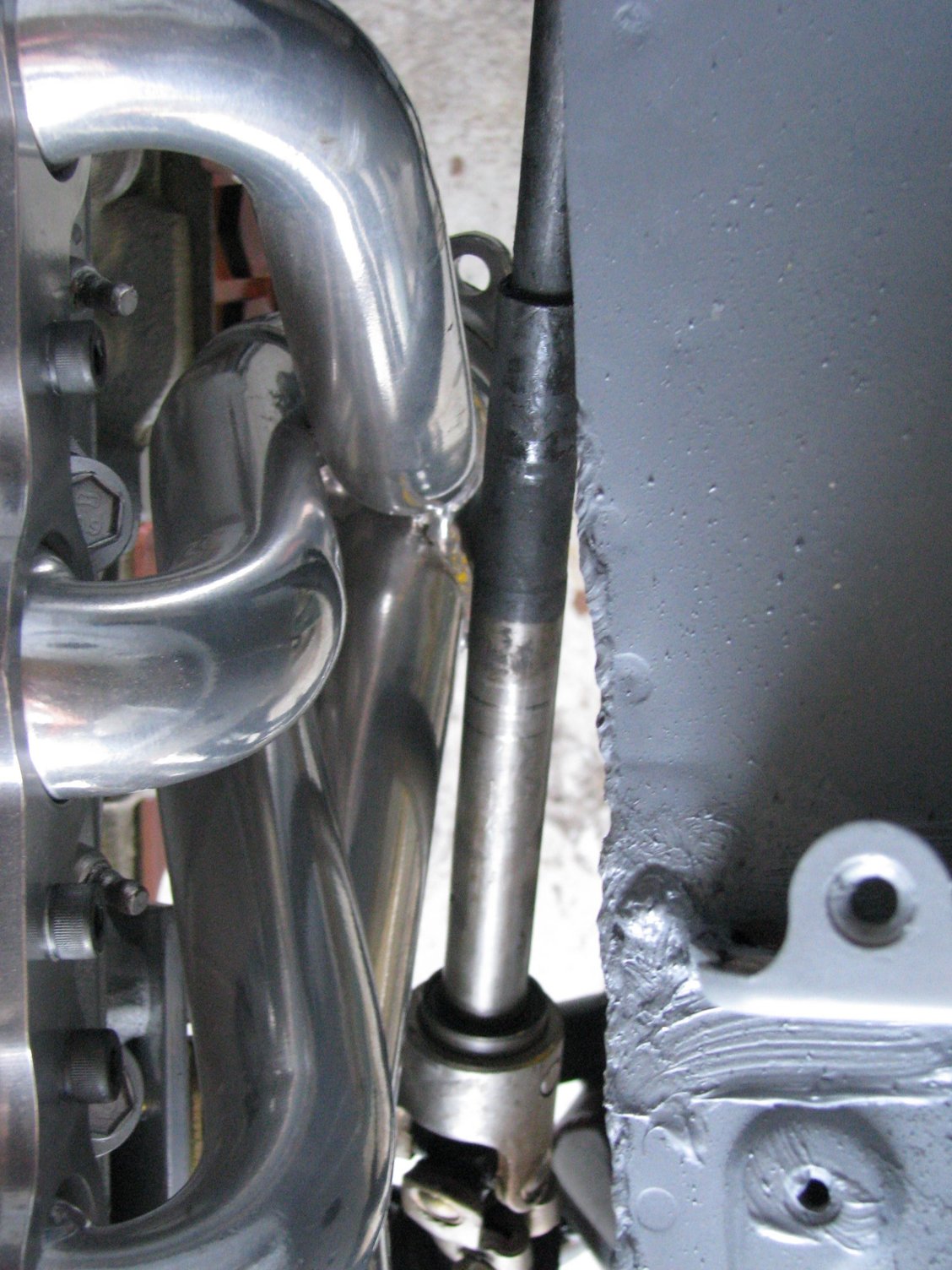

I have a 1995 Miata with an LS1 in a V8Roadster setup and dinged Sanderson headers for steering shaft clearance. I am trying to make it CA smog legal with a OEM exhaust manifold or CA legal header and catalytic converters. Has anyone tried the OEM Pontiac G8 or LS3 manifolds with cats without moving the steering shaft? I am considering adding joints and an offset steering shaft if required.
miatachuck is offline
Old 03-08-2019, 11:15 AM
  #2
V8 Miata Protégé

stng_96's Avatar

Join Date: Feb 2015
Location: Marion Illinois
Posts: 536
Received 77 Likes on 56 Posts
Default

I don't know if anyone has tried it, but can see your point. Food for thought....take a look at the 2009-2015 CTS-V setups. It is the same style but the cat is much smaller. I may even have a set laying around.
stng_96 is offline
Old 03-08-2019, 03:20 PM
  #3
V8 Miata Participant

Join Date: Apr 2016
Location: Tulsa OK
Posts: 346
Received 19 Likes on 18 Posts
Default

You might look over the CARB legal LS build that is around here somewhere.
As best I remember he utilized 2006 GTO exhaust manifolds and cats but I have slept several times since reading the thread.
Also going off memory, the fitment issue was not the steering shaft but rather the firewall.

I do know that the V8 Roadster subframe is different from the Monster subframe but I do remember reading several places where the Pontiac G8 manifolds will work with the Monster subframe.
Taylor Ray uploaded a series of YouTube videos where he did an LS build in his Miata and originally used G8 manifolds.
He has since switched them out in a search for more performance.
From looking at his engine placement compared to my car, it looks to me like the Monster subframe places the engine about 1"-2" further away from the firewall than the V8 Roadster subframe.
BGordon is offline
Old 03-28-2019, 06:04 PM
  #4
V8 Miata Noob
Thread Starter

Join Date: Dec 2009
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks for the info. FlyinMiata uses V8roadster subframes and gets the EROD LS3 to fit but I haven't heard them address the steering shaft.
miatachuck is offline
Old 04-04-2019, 05:19 PM
  #5
V8 Miata Fan

fitz's Avatar

Join Date: Aug 2011
Posts: 34
Likes: 0
Received 2 Likes on 2 Posts
Default



Originally Posted by miatachuck View Post
Thanks for the info. FlyinMiata uses V8roadster subframes and gets the EROD LS3 to fit but I haven't heard them address the steering shaft.
Why would they? The V8 roadsters subframe gives the new Sanderson headers sufficient clearance so you do not have to dent the crap out of them.
fitz is offline
Old 04-05-2019, 08:30 AM
  #6
V8 Miata Protégé

stng_96's Avatar

Join Date: Feb 2015
Location: Marion Illinois
Posts: 536
Received 77 Likes on 56 Posts
Default

Didn't know that, what are those headers called?
stng_96 is offline
Old 04-05-2019, 03:10 PM
  #7
V8 Miata Fan

fitz's Avatar

Join Date: Aug 2011
Posts: 34
Likes: 0
Received 2 Likes on 2 Posts
Default

Originally Posted by stng_96 View Post
Didn't know that, what are those headers called?
Sanderson V8RLS1 Header Set, GM LS Engines (V8 Roadster LS Header Set) you specify which engine you have (LS1, LS2, LS3)
fitz is offline
