Suspension Frequency
10-08-2014, 10:39 AM
#1
V8 Miata Enthusiast
Thread Starter
Join Date: Oct 2013
Location: Colorado Springs, CO
Posts: 421
Likes: 0
Received 33 Likes
on
27 Posts
Suspension Frequency
Has anyone calculated the suspension frequency for a Miata? If so, are you willing to share the data?
What about roll center?
What about roll center?
11-24-2014, 10:39 AM
#4
V8 Miata Enthusiast
Thread Starter
Join Date: Oct 2013
Location: Colorado Springs, CO
Posts: 421
Likes: 0
Received 33 Likes
on
27 Posts

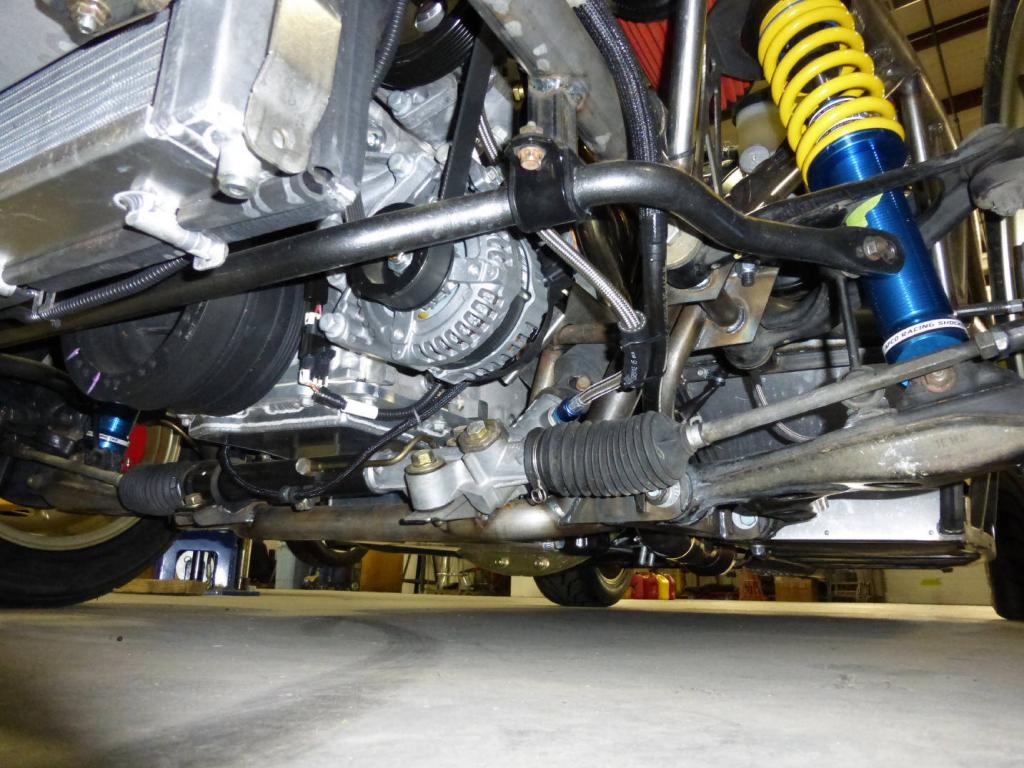

I was out at FM earlier this month (great folks!) and I took this picture.
One of the many things I noticed is the angle of the suspension arms. They're both pointing down. That will put the roll center very close to the ground, if not below ground level.
I have not seen where the CG is, but I would guess it would be somewhere around the camshaft centerline or so. That's makes for a fairly long roll couple.
Is that normal for a Miata?
One of the many things I noticed is the angle of the suspension arms. They're both pointing down. That will put the roll center very close to the ground, if not below ground level.
I have not seen where the CG is, but I would guess it would be somewhere around the camshaft centerline or so. That's makes for a fairly long roll couple.
Is that normal for a Miata?
11-24-2014, 11:07 AM
#5
Jim Stainer

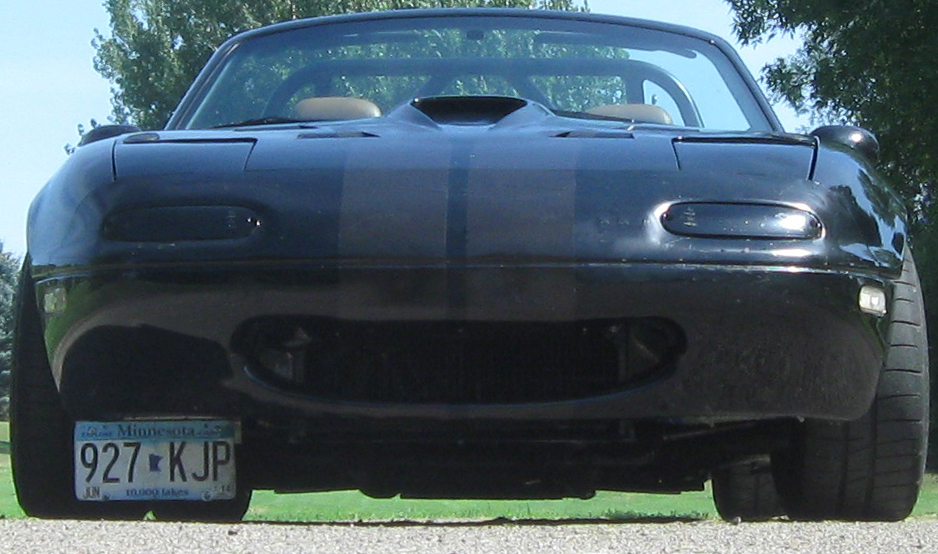

Mine is about the same I think but I don't have much for photos of it. This shot was early on before I raised it up.
This is about what it is like now I think.
Hard to remember because I have changed the height so many times! I know the back are much closer to flat.
This is about what it is like now I think.
Hard to remember because I have changed the height so many times! I know the back are much closer to flat.
