Power steering plumbing question

Old 05-10-2019, 10:48 PM
  #1
V8 Miata Noob
Thread Starter

Join Date: Oct 2016
Location: PARKER
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
Question Power steering plumbing question

I have the V8R PS kit for my NB swap. I cannot figure out where all of the lines and fittings go. Does anyone have pics or a diagram you'd be willing to share?
G&BMiata is offline
Old 05-13-2019, 09:09 AM
  #2
V8 Miata Participant

Join Date: Apr 2016
Location: Tulsa OK
Posts: 343
Received 19 Likes on 18 Posts
Default

You might check out the Flyin Miata V8 installation guide.
Don't know if their kit is the same as the V8 Roadster parts but it might help as both are connecting the same components.
BGordon is offline
Old 05-23-2019, 08:59 PM
  #3
V8 Miata Enthusiast

Join Date: May 2016
Location: Ambler, PA
Posts: 365
Received 13 Likes on 13 Posts
Default

Originally Posted by G&BMiata View Post
I have the V8R PS kit for my NB swap. I cannot figure out where all of the lines and fittings go. Does anyone have pics or a diagram you'd be willing to share?
Not familiar with the LFX pump, but one connection will be the outlet for the high pressure side of the pump. The other will be a return. I'd also consider a power steering cooler if you are installing the system from scratch - not sure if the kit allows for that.

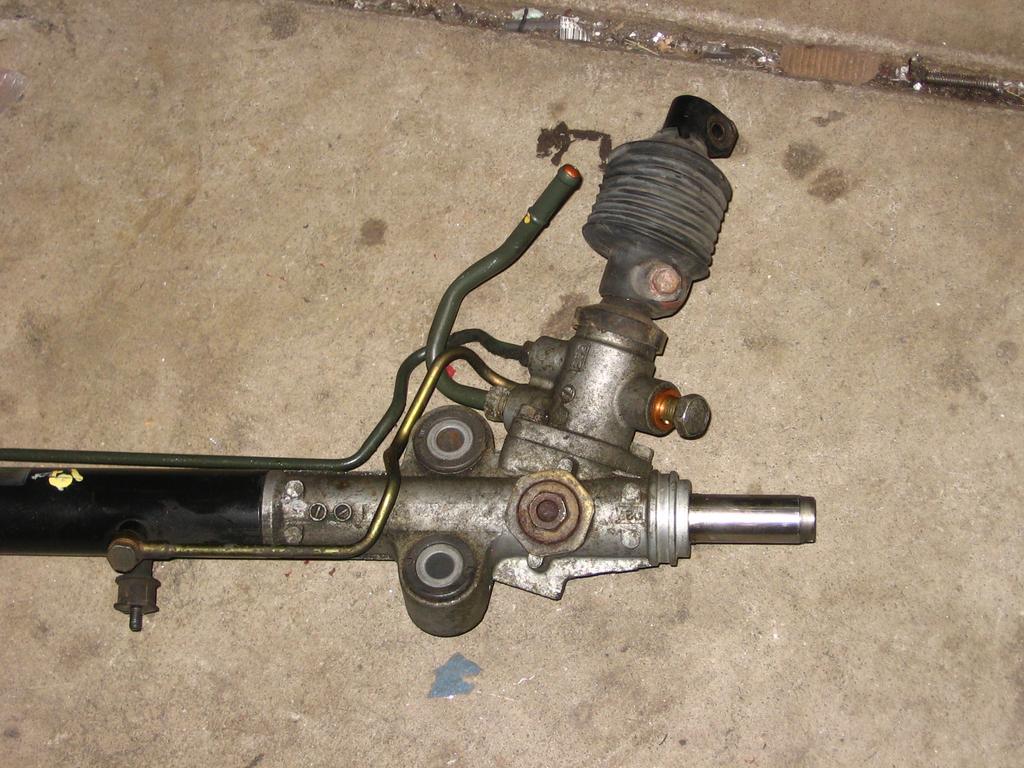

One of the pics in my post on PS shows which side of the NB rack is the high pressure side, it's the one with the braided hose going to it
https://www.v8miata.net/general-moto...ring#post22124
pj_mcgarvey is offline
Old 05-23-2019, 09:09 PM
  #4
V8 Miata Noob
Thread Starter

Join Date: Oct 2016
Location: PARKER
Posts: 10
Likes: 0
Received 0 Likes on 0 Posts
Default

Thanks pj_mcgarvey and BGordon for your replies. I plan to tackle the power steering this weekend.
G&BMiata is offline
Old 05-24-2019, 10:37 AM
  #5
V8 Miata Enthusiast

.boB's Avatar

Join Date: Oct 2013
Location: Colorado Springs, CO
Posts: 408
Likes: 0
Received 32 Likes on 26 Posts
Default

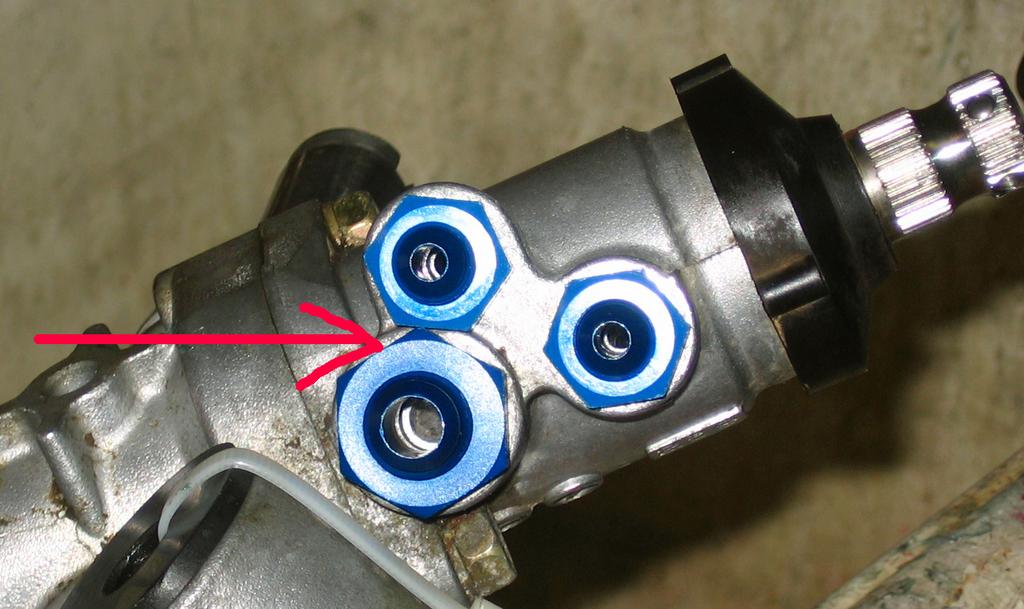

The fitting on the left with the short piece of tubing on it is the low pressure return. The fitting on the right is the high pressure feed.

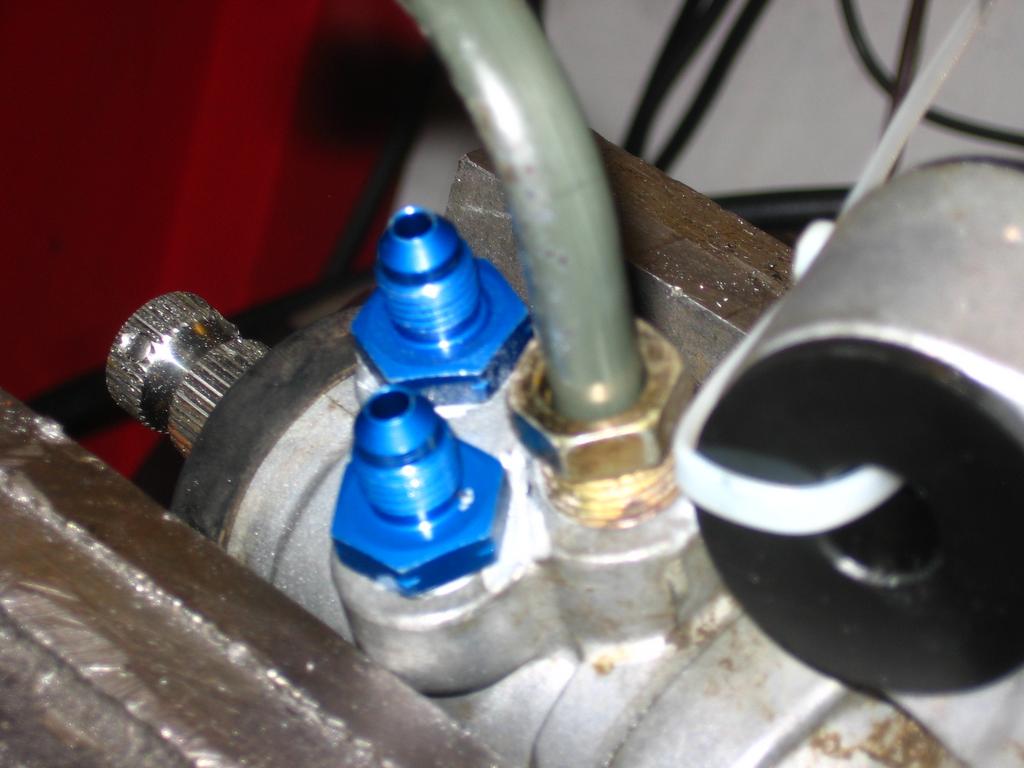

I attempted to change mine over to all AN fittings and lines. But then I had this interference.


So I left the stock return line in place. That actually worked better with my cooler anyway.
.boB is offline
Old 05-24-2019, 11:40 AM
  #6
V8 Miata Follower

Join Date: Nov 2013
Location: Dade City, FL
Posts: 142
Received 3 Likes on 3 Posts
Default

the space where the hard lines live gets pretty crowded. The braided lines are going to be a pain.
Flavaquero is offline
