Basic run down....
92 miata
6.0 lq4 chevy
75mm borg t6 turbo
Six speed
Solid axle ford 9 inch
06 miata front sub frame and suspension
Three link with a frame mounted watts link rear suspension

Pics to come soon.



http://i1278.photobucket.com/albums/...ps00e849ff.jpg



http://i1278.photobucket.com/albums/...ps403c0760.jpg

http://i1278.photobucket.com/albums/...ps62d017eb.jpg



Im front mounting the turbo. The rad will be in the trunk. 2x3 frame will stop at crossmember mounts, the be a removable tube clip. Ill be running a remote mount electric water pump. http://i1278.photobucket.com/albums/...psaf51a7cc.jpg



http://i1278.photobucket.com/albums/...ps3a0b45bd.jpg



Man, great build! From the license plate it looks like you'll be putting it on the street as well as the strip?



The goal is all around outstanding car. Street, strip and road course. 700 rwhp is easily obtainable.



Cool build. Pretty tough to do a build that's good in all 3. I figured with the tubbed rear you'd go with an autotrans.



It would be faster with the turbo but I like to drive my car. Not stab and steer. 335/35/17 is whats going in the rear. Plenty of tire choices in that size. I just try to keep all the factors that make great cars in each kind of racing and try to pick the best compromises between them all. Weight, power, traction, chassis stiffness and suspension. I hope I succeed!



Im using hooker swap manifolds and flipping them up and forward. Most people use truck manifolds. The hooker manifolds have larger primaries and are tighter to the engine.

http://i1278.photobucket.com/albums/...pscab9de8c.jpg

Normally look like this. http://i1278.photobucket.com/albums/...ps2f954a00.jpg

http://i1278.photobucket.com/albums/...pseed7ed17.jpg



This is the turbo size.borg warner s475 turbo - Google Search



Sold the big t6 turbo and bought two smaller s366 t4 turbos. Borg warner Pn 177275

Starting to mock up where the engine and 06 miata front sub frame will sit.

http://i1278.photobucket.com/albums/...psd1066b0a.jpg

http://i1278.photobucket.com/albums/...ps2ddfe555.jpg



Hey great to see you back! I have looked at this thread many times and been amazed. You are a fine craftsman for sure and I hope you keep the photos coming!



Its been slow going with it lately. Time to work on it and money. The frame is next to start on.

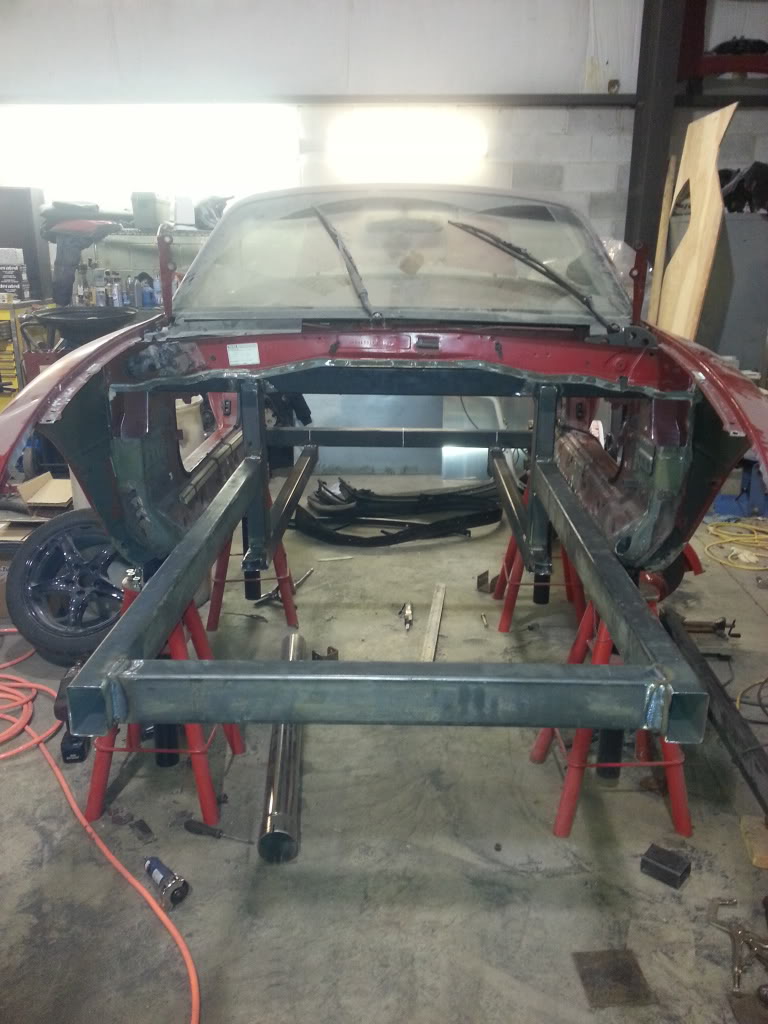

I've been busy. http://i1278.photobucket.com/albums/...ps013aeb00.jpg



http://i1278.photobucket.com/albums/...psa4d38ef2.jpg

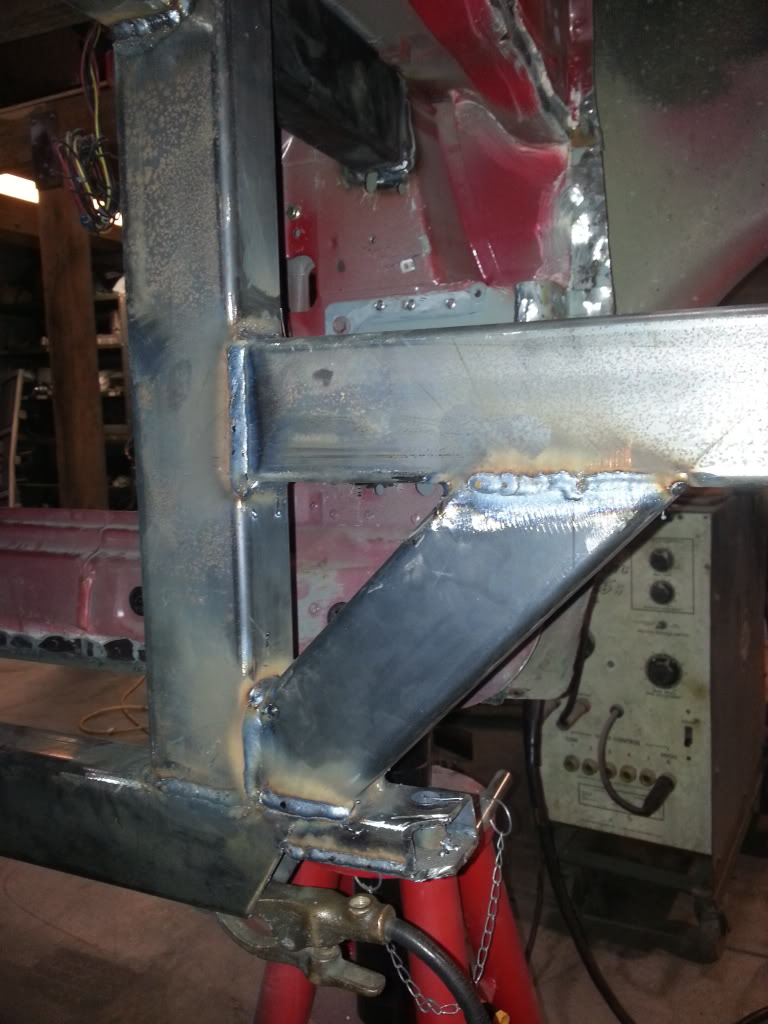

Gonna do some more tomorrow. Finish mounting front sub frame. Triangulate the front rail to the upright. I set the turbos on the rails just for the pure excitement of it. This thing is gonna be wicked! http://i1278.photobucket.com/albums/...ps18fe7c0d.jpg







I couldn't finish getting front 06 sub frame mounted. I need another stick of 2x3.

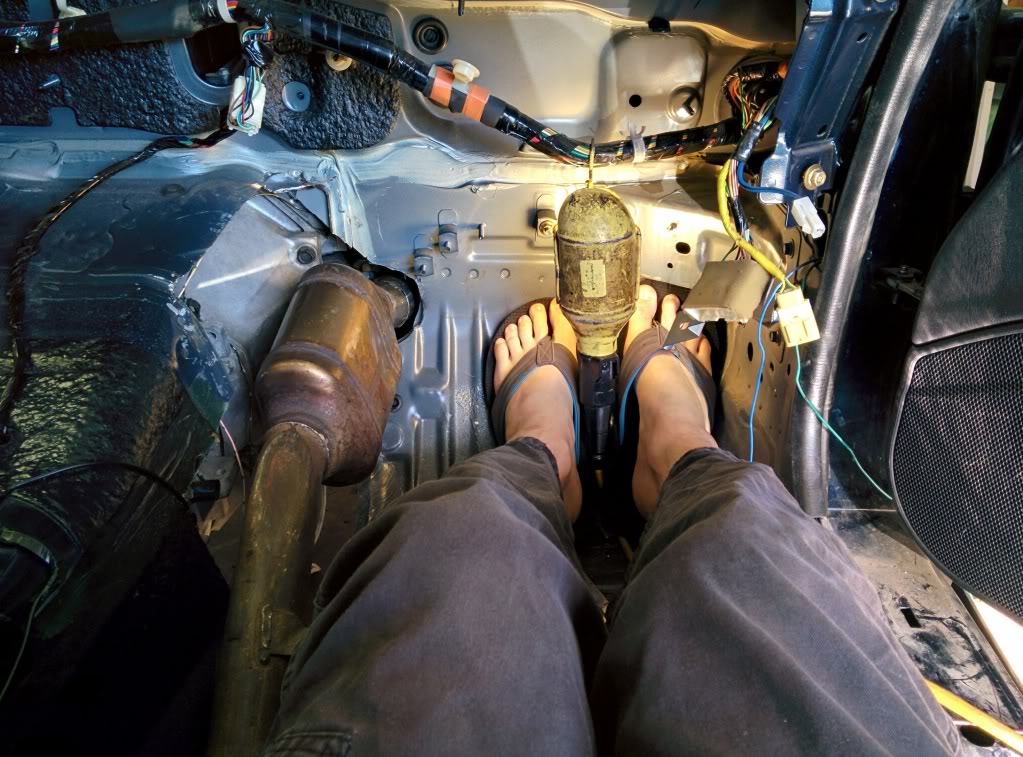

and to think I thought my holes in the floor pan were big
[/URL]

Keep the updates coming!



Yeah your hole is no comparison. Lol







I've been a little busy working on it.
