Deal of a century LS2 sleeper project
#26
V8 Miata Enthusiast
Thread Starter
Yeah, the 1996 was first year OBD II, and PO used a GM race harness, so I'm adding a few runs for sensors to make inspection people happy. The tune will have all them deleted for performance, but inspection station won't know the difference. My 302 is a 1992 and been passing sniffer cleaner than a new car for past 2 years. Helps the engine was a new build and exhaust was all new with cats and mufflers. Looking forward to cleaning up interior and getting her on the road. Last test drive, water temps did not exceed 183, so looking good. Final HP numbers still not in, but I'll keep y'all posted.
#27
V8 Miata Enthusiast
Thread Starter
My other concern with the exhaust was the almost 90 degree turn of the dumps. Was not sure exhaust would actually dump when open. They told me the cats and muffler create resistance which will force air out of dumps when plates removed. Old find path of least resistance principle. I'm going crazy because still have not heard it. Lol!
#29
V8 Miata Enthusiast
Thread Starter
I have a set of V8 Flyin Miata sway bars to slap on. Having trouble trying to get the front one to fit and just asked FM for some pictures of orientation. When I was doing the SPEC Miata thing, most guys deleted that rear brace so I have never re-installed them on my cars. I was actually thinking of using those stock bolt holes to make a skid plate for the rear diff.
#30
V8 Miata Fanatic
#31
Jim Stainer
The only thing about a skid plate is trapping the heat up there and I wouldn't go that route especially being so far south. If the cats really only need to be a visual you could make them hollow and that would cut the heat down quite a bit.

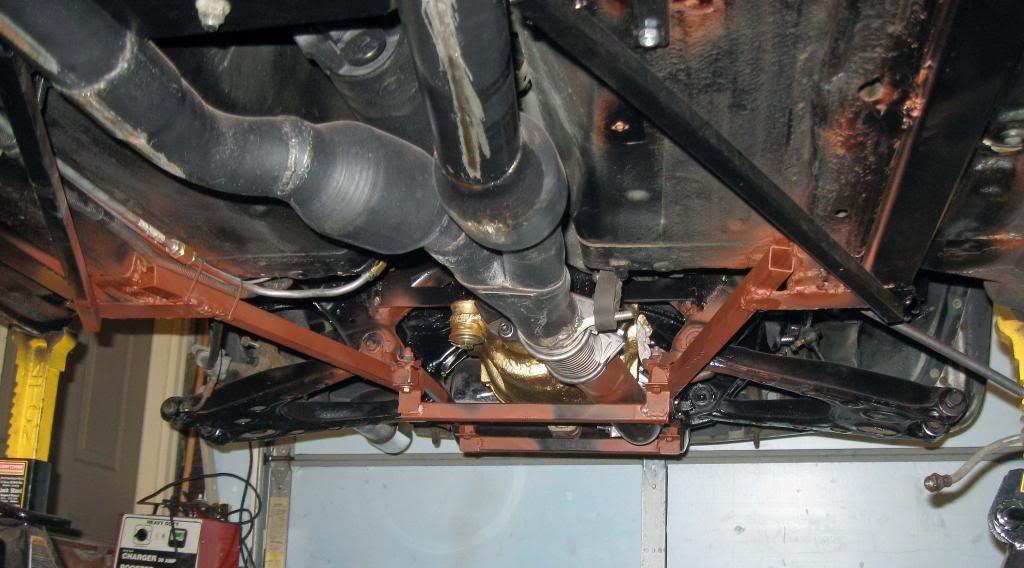

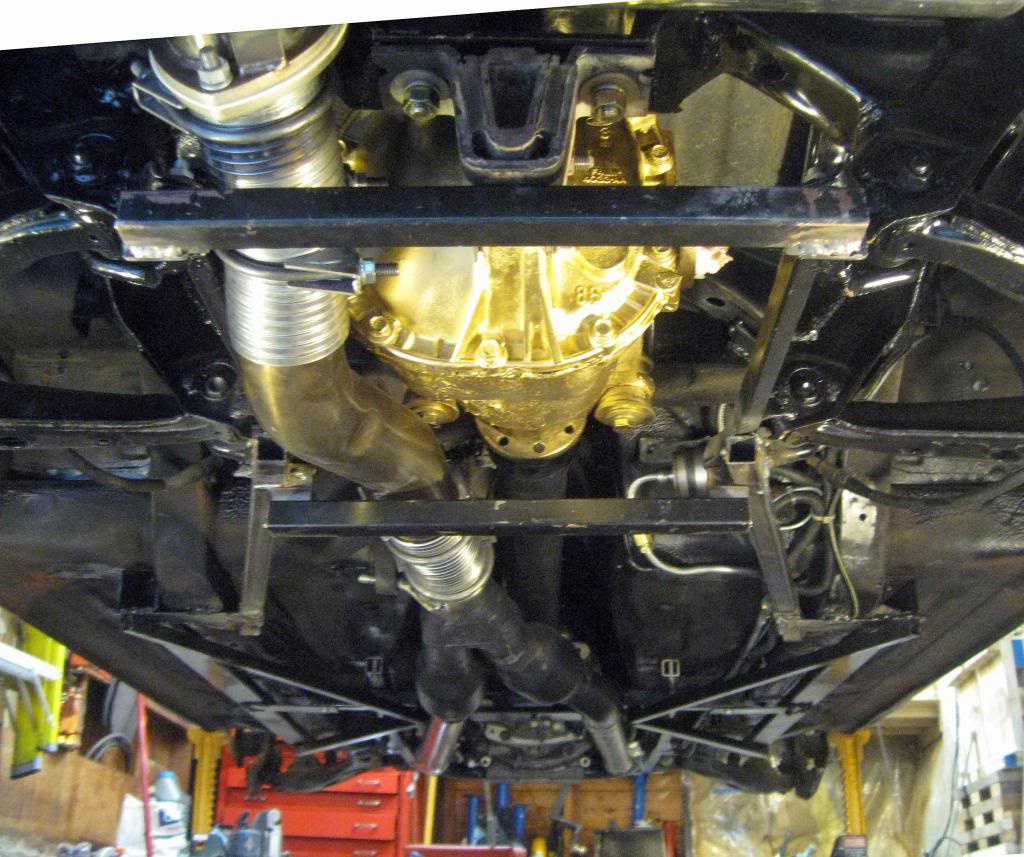

Just box the 4 holes together if you are concerned about stiffening that up back there. You can run arms up to your frame stiffeners too from the front ones. Excuse my ratty *** ford here...
BTW yes I did weigh it and the 1" box is 1.6 lbs per foot and the 3/4 is 1.1 lbs per foot so that whole mess all the way up to the engine cradle is about 25 lbs and to me worth it for how the chassis feels.
I had the same thoughts on your dumps and tried pretty much the same thing you are doing here on my 65 Shelby mustang clone back in the day. I ran hush thrush turbo mufflers right in front of the axle and I cut in at about an 75 degree angle in front of them to dump at the rear wheels like Shelby did. On a cold day when you could see the exhaust it dumped quite a bit at idle but heading down the entrance ramp there was more out the back than the sides. There just wasn't enough back pressure to offset the velocity of the air passing by the opening and most of it went straight into the muffler. However because it was dumping right into your left ear it was much louder!
BTW on a side note the same car sounded way better with out the X pipe than with. No X made it sound like it had far more cam and compression than it really did so of course I took the X back out the week after I put it in!
Just box the 4 holes together if you are concerned about stiffening that up back there. You can run arms up to your frame stiffeners too from the front ones. Excuse my ratty *** ford here...
BTW yes I did weigh it and the 1" box is 1.6 lbs per foot and the 3/4 is 1.1 lbs per foot so that whole mess all the way up to the engine cradle is about 25 lbs and to me worth it for how the chassis feels.
I had the same thoughts on your dumps and tried pretty much the same thing you are doing here on my 65 Shelby mustang clone back in the day. I ran hush thrush turbo mufflers right in front of the axle and I cut in at about an 75 degree angle in front of them to dump at the rear wheels like Shelby did. On a cold day when you could see the exhaust it dumped quite a bit at idle but heading down the entrance ramp there was more out the back than the sides. There just wasn't enough back pressure to offset the velocity of the air passing by the opening and most of it went straight into the muffler. However because it was dumping right into your left ear it was much louder!
BTW on a side note the same car sounded way better with out the X pipe than with. No X made it sound like it had far more cam and compression than it really did so of course I took the X back out the week after I put it in!
Last edited by charchri4; 05-19-2015 at 10:22 AM.
#32
V8 Miata Enthusiast
Thread Starter

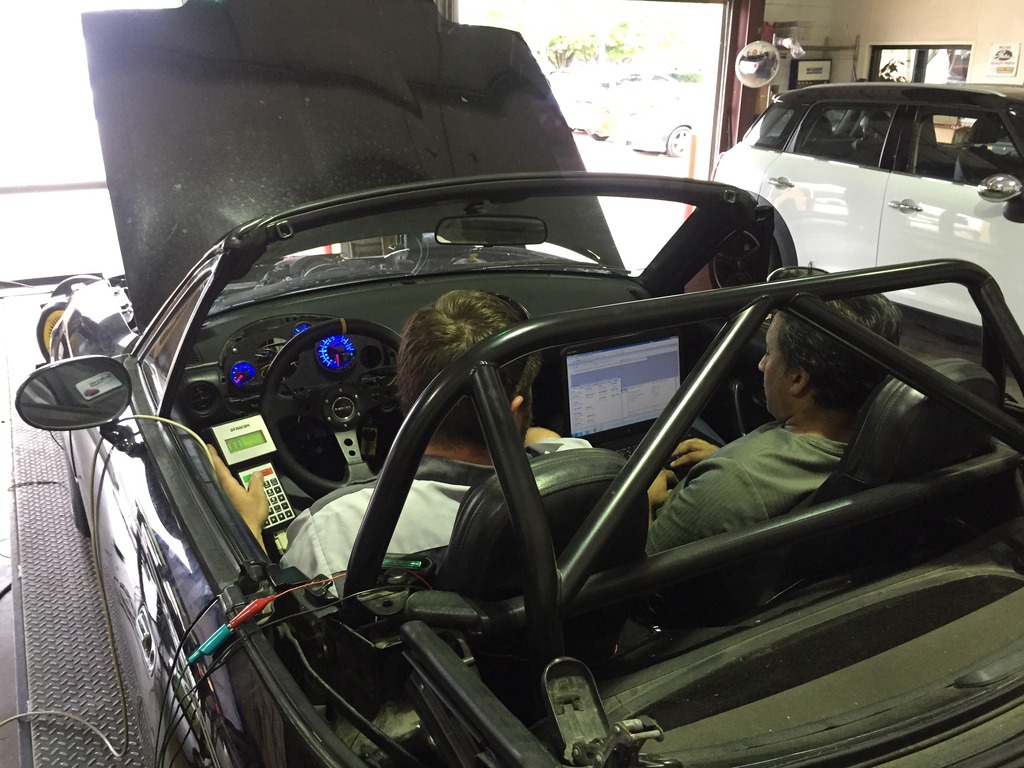

All the wiring is done and everything checks out, except for a MAF check engine light. We hooked up to the PCM and it appears PO tuned this car with a speed density tune and it is failing the MAF. This combo will not pass OBD II emissions here in Houston, TX. This morning we are strapping it into the dyno and starting over with a detailed MAF tune that should clear it all up. I've done a lot of research on MAF vs SD tunes, and it is about a 50/50 out there. Most say the MAF should be tunable reliably up to 800HP. PO was planning on forced induction, and apparently a SD tune is the way to go for that.
#33
V8 Miata Fanatic
#34
Jim Stainer
What code is it exactly? I get a 102 in mine once in a while (MAF low) and cleaning it seems to help. The oil you are suppose to use on the fancy air filters is not your friend for this code either...
#38
V8 Miata Enthusiast
Thread Starter
Realized I was starting to blab about the build on my dyno post.

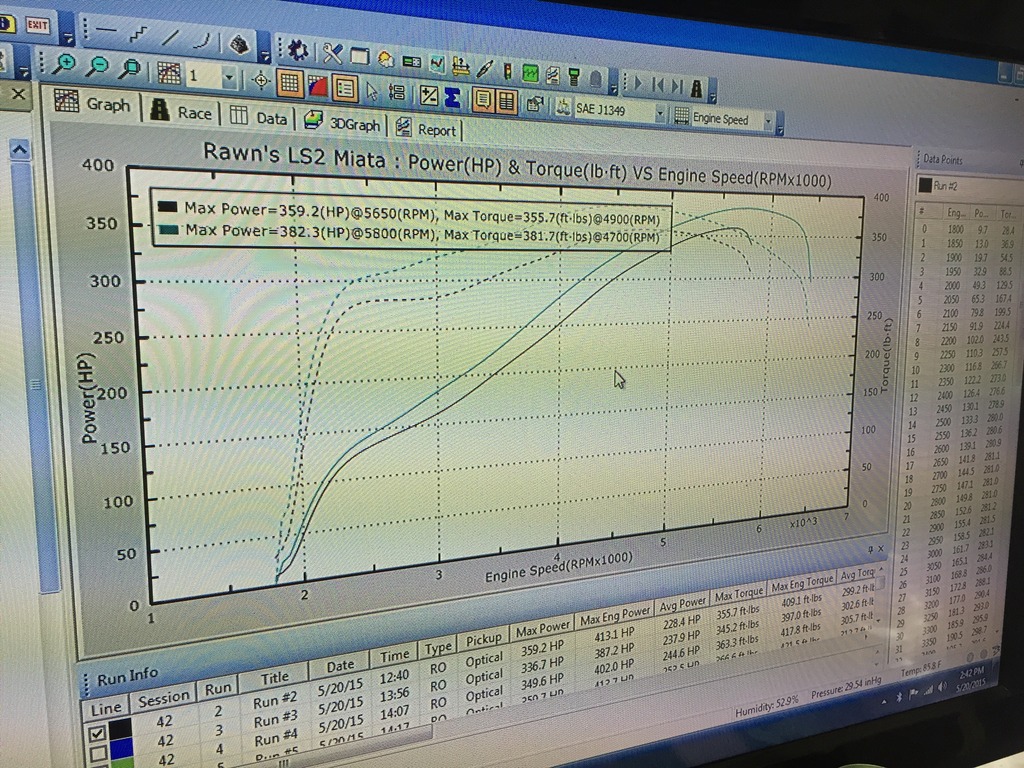

So with 402 to the wheels.......I want more. Don't know why as the tires tend to spin. Lol. Gonna complete the LS3 head and intake swap after the summer and I get a chance to enjoy it now.
I also scored a nice hardtop locally that I will slap on. Been thinking of paint scheme for this one, and I'm gonna keep it patriotic like my cammo wrapped 302. The base will be a flat black paint, and then use a dark grey vinyl to make Stars and Stripes down the sides. A large Apache helicopter on the hood, and a large star on the top. Going for the dark subdued look.
So with 402 to the wheels.......I want more. Don't know why as the tires tend to spin. Lol. Gonna complete the LS3 head and intake swap after the summer and I get a chance to enjoy it now.
I also scored a nice hardtop locally that I will slap on. Been thinking of paint scheme for this one, and I'm gonna keep it patriotic like my cammo wrapped 302. The base will be a flat black paint, and then use a dark grey vinyl to make Stars and Stripes down the sides. A large Apache helicopter on the hood, and a large star on the top. Going for the dark subdued look.
#40
V8 Miata Enthusiast
Thread Starter

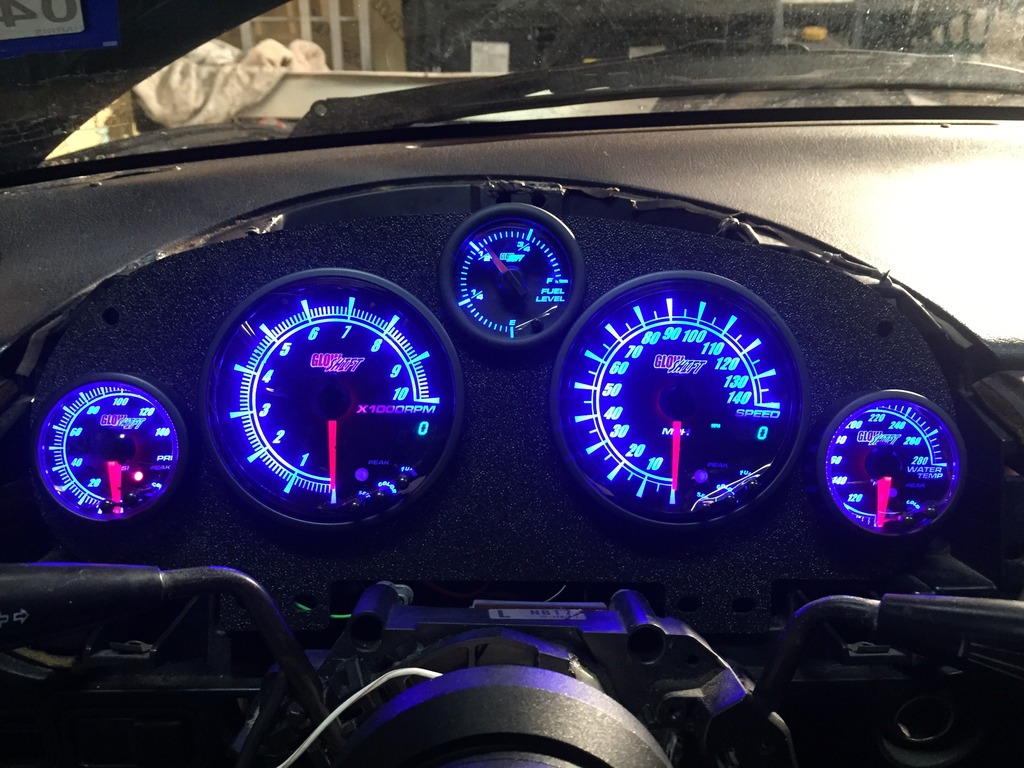

Worked on the gauges a bit tonight. Used Glowshift gauges found on Amazon. They work really good. Their new series allows to set high and low parameters that activate lights built into the gauges. The tach also makes sounds. 10 different colors to set on each gauge. Best of all is you wire up one, and they daisy chain together with included wires. Easy peasy.
#41
V8 Miata Enthusiast
Thread Starter

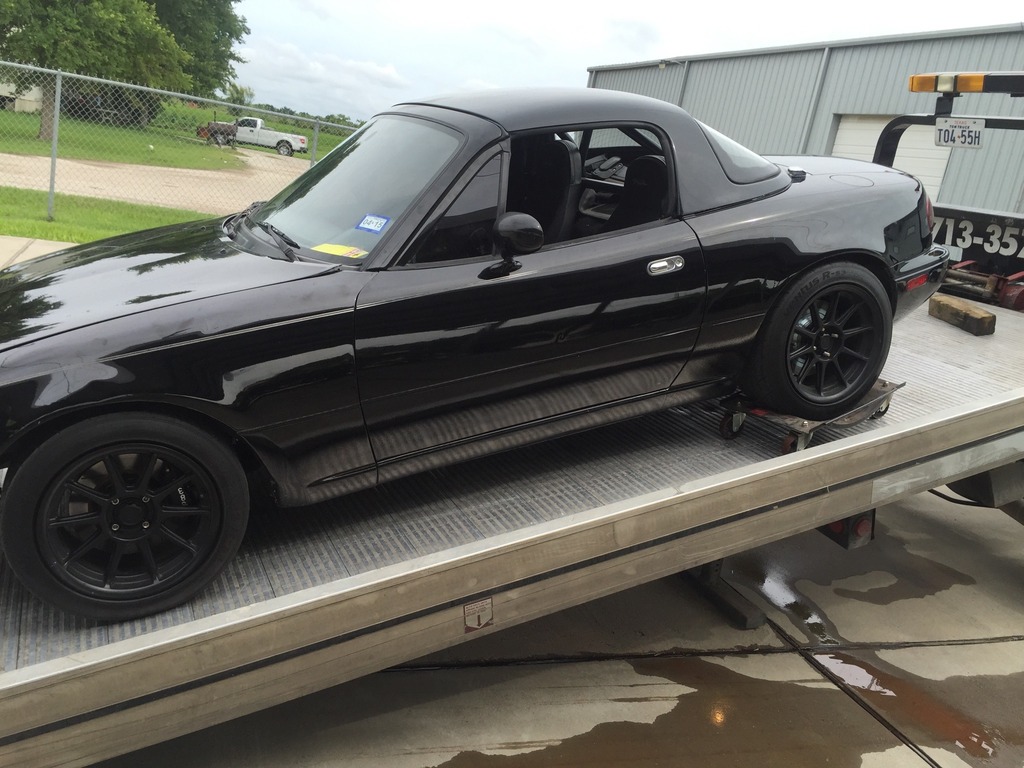

Well, just went for a test drive to calibrate all the new gauges and inspect for leaks on the coolant sensor. Everything was good, and the I down shifted so I could listen to the open dumps. Then a BANG followed by the rear tires locking up and skidding to a stop. Strangely, I was able to put it in reverse and get out of the road, but anything forward is not working. All locked up. Leaning towards the rear end now. Clutch pedal feels good and tranny seems to shift through all the gears. Waiting for a tow now. I'll get it on stands at home for further evaluation. Engine still runs fantastic and dumps sound amazing.
#45
V8 Miata Enthusiast
Thread Starter
#48
V8 Miata Fanatic
Mine is a Getrag 3.42 I think it's decent for the T56 and LS3 combo. I don't really feel 6th is usable until 60+ though, and I can get some cam surge at really low parking garage speeds at times. ...maybe your 3.73 is 'best'.... It's slicing hairs between the two though...couple hundred rpm maybe.
#49
V8 Miata Enthusiast
Thread Starter
I have a bead on a 2011 CTS differential for $100. Down side is that it is from an automatic car. Gear ratio is 3:23 and I have read that that is a fairly streetable gear. It would be and easy cheap fix until I can possibly get a custom built up diff. I believe the only difference in a manual and automatic differential is the gear ratio.
