It's been a long time since I decided to take on this project and now I believe it is worthy of a build thread.

Before we get into my build, I would like to say thanks to all of you for contributing to this awesome resource we call V8miata.net. I have been lurking for a while and soaking up all kinds of great info.

The car: 1992 mariner blue miata "A" package w/hardtop. I have owned this car for 16 years now. The car is fitted with some suspension mods and a Hard Dog 4-point rollbar.

The plan: Built aluminum 5.3(LH6), Viper T56, Cobra 8.8 LSD, V8R subframe. Also, I am going to run some boost and fuel it using Holley EFI.

Purpose: Street car that will make me grin ear to ear. There's nothing really more to it.

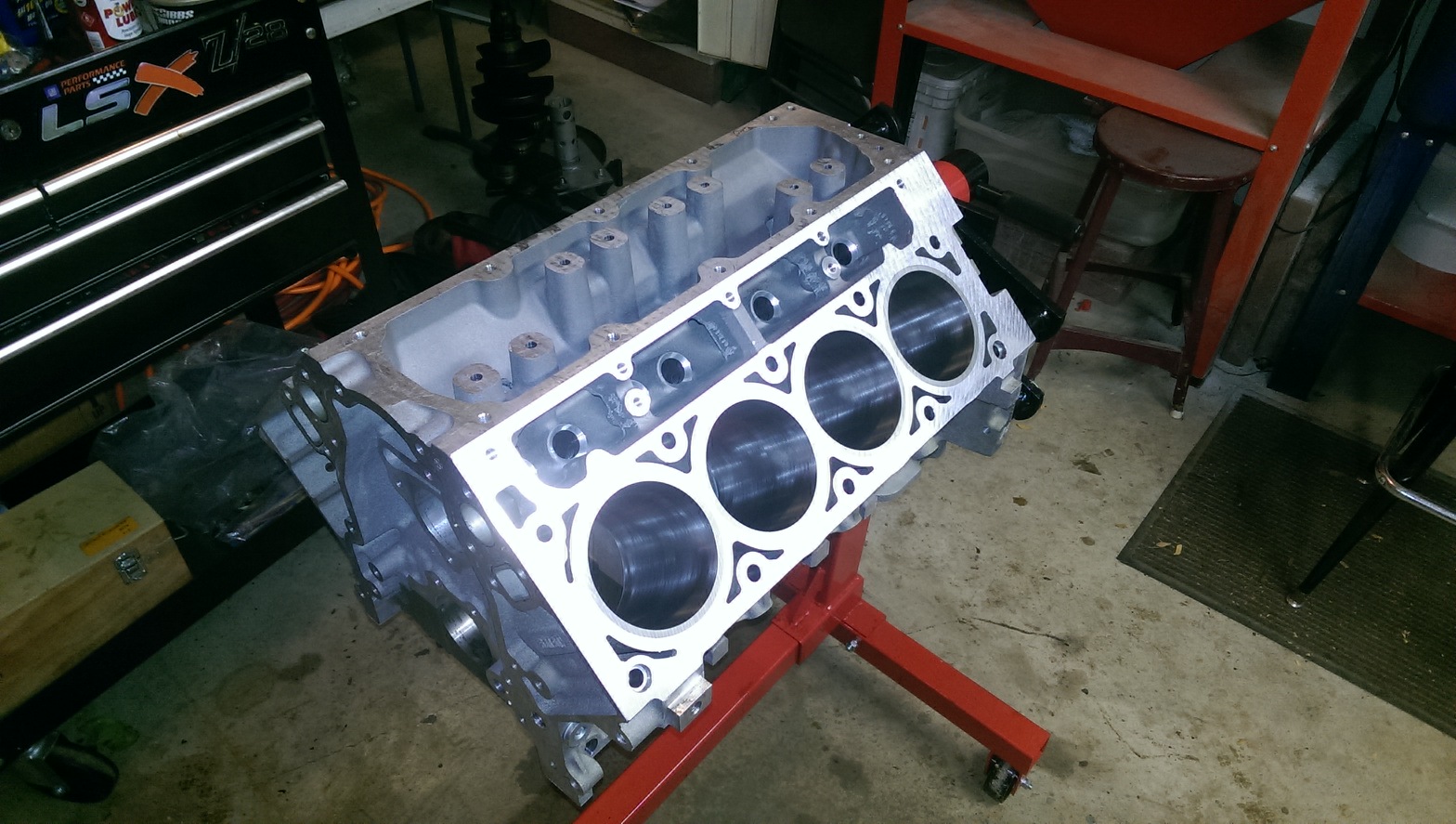

Believe it or not, this all started with a bare engine block. Yes, this was the very 1st part that I purchased(Ebay $175).
Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-010.jpg

Last edited by crispy; 02-07-2016 at 05:24 PM.
crispy is offline
Old 02-07-2016, 05:10 PM
  #2
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

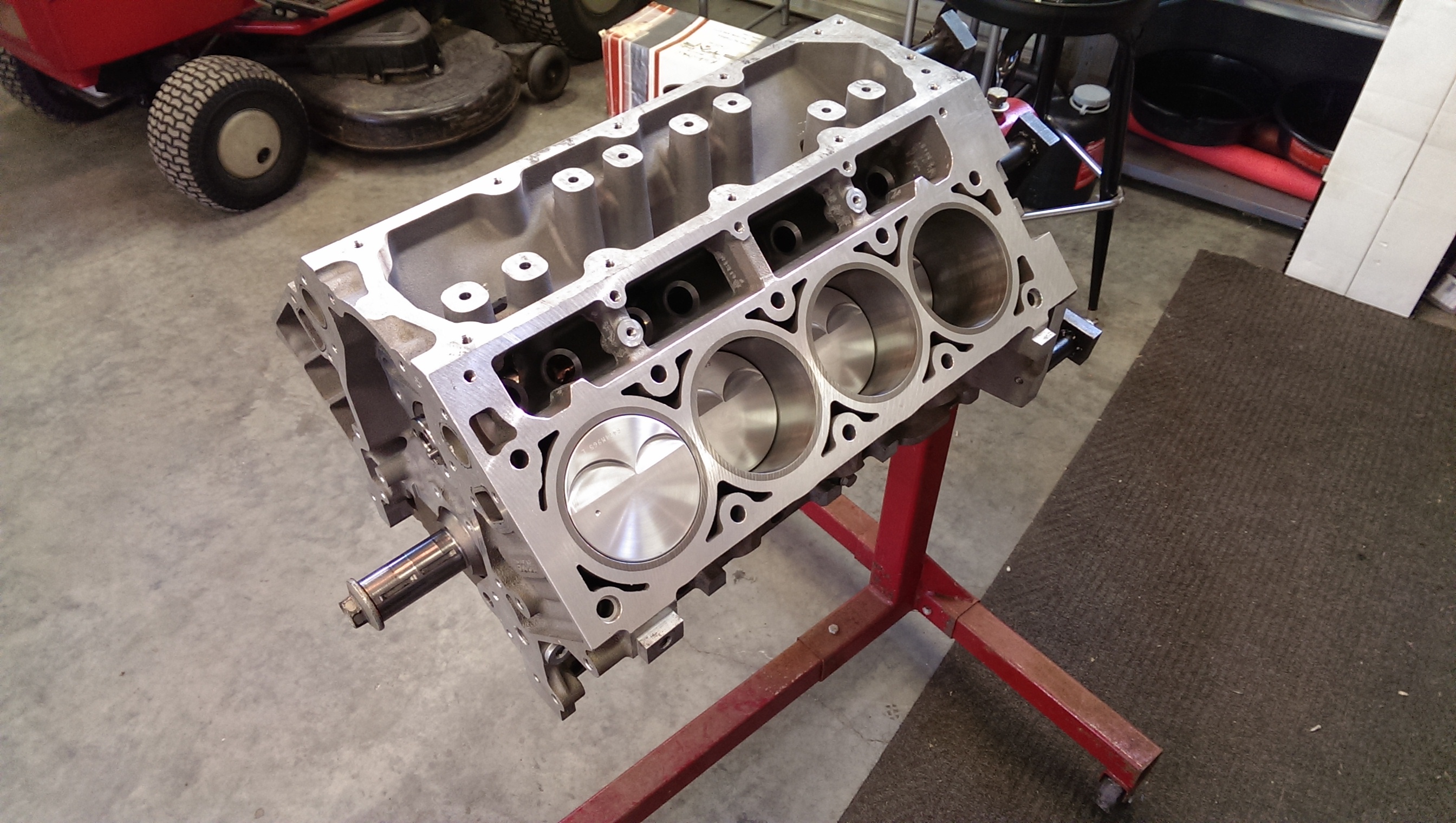

I came across a good hookup for hotrod engine parts and machining, so my engine build got a little out of hand. Over the course of about a year, it turned into an animal consisting of:

Callies Magnum crankshaft 58x
Callies forged H-beam rods
Wiseco 3.80" forged pistons
Coated bearings
ARP studs throughout
The cam is custom grind: 223/231 .650/.600 112+2
Katech C5R timing set
New LS7 lifter and trays
Melling HV oil pump

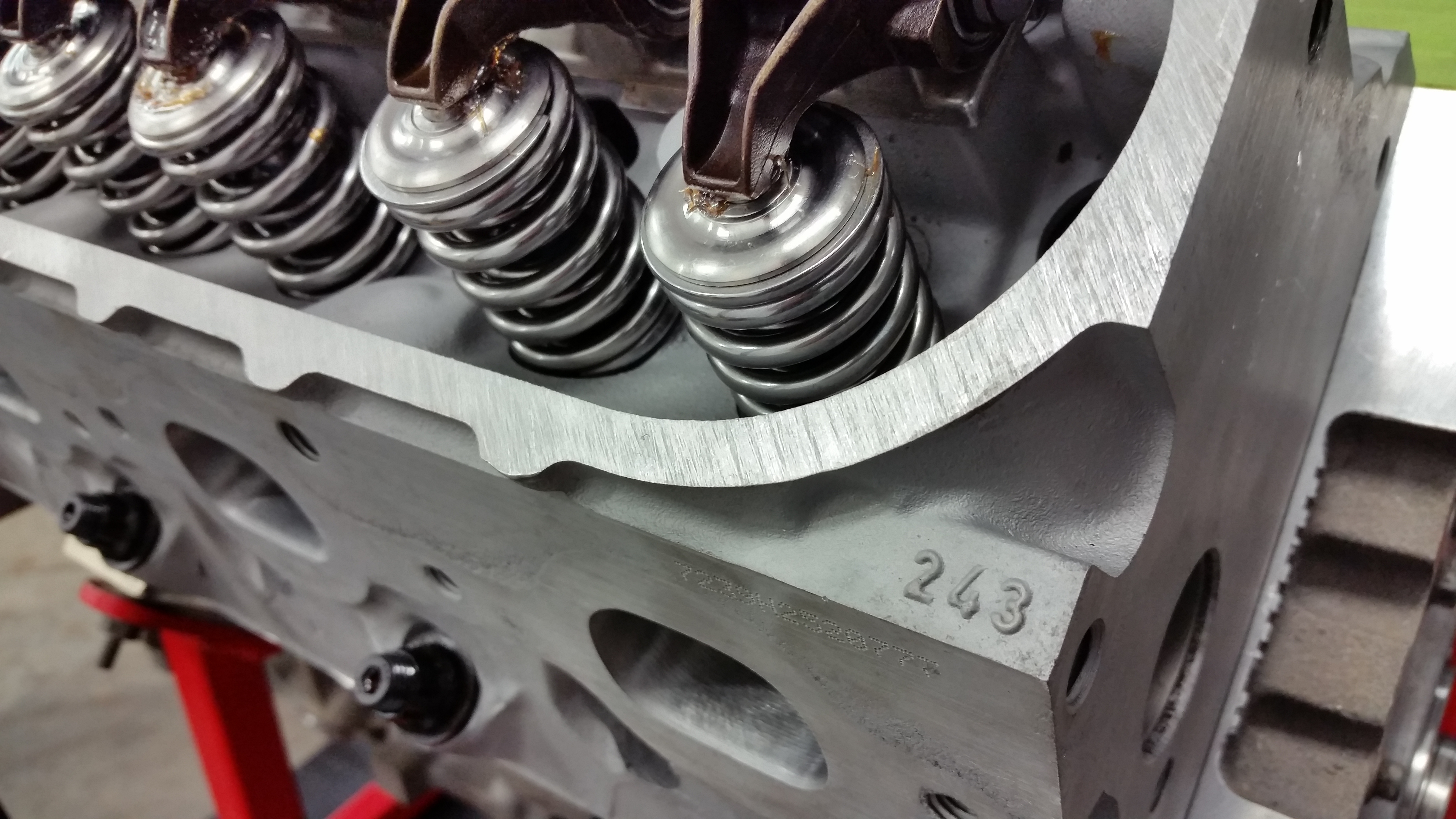

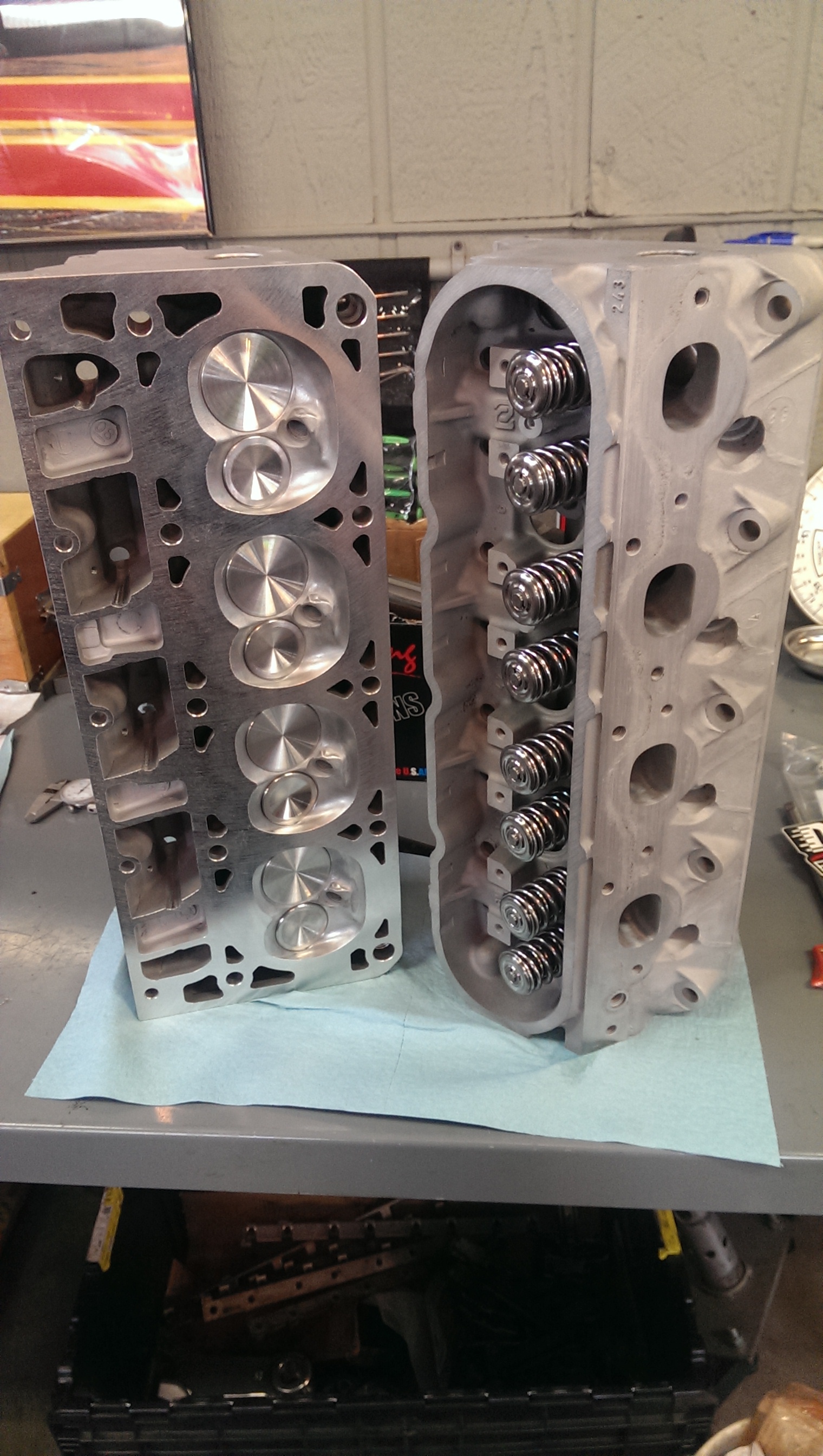

I scored some 243 casting cylinder heads form a donor motor out of an avalanche. I had them CNC ported, installed Ferrea stainless valves, BTR hardened pushrods, BTR .660" springs/Ti retainers, and upgraded the rockers with Comps trunion kit. They heads are secured with ARP studs.




Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-117.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-163.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-153.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-155.jpg

Last edited by crispy; 02-07-2016 at 09:50 PM.
crispy is offline
Old 02-07-2016, 06:50 PM
  #3
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

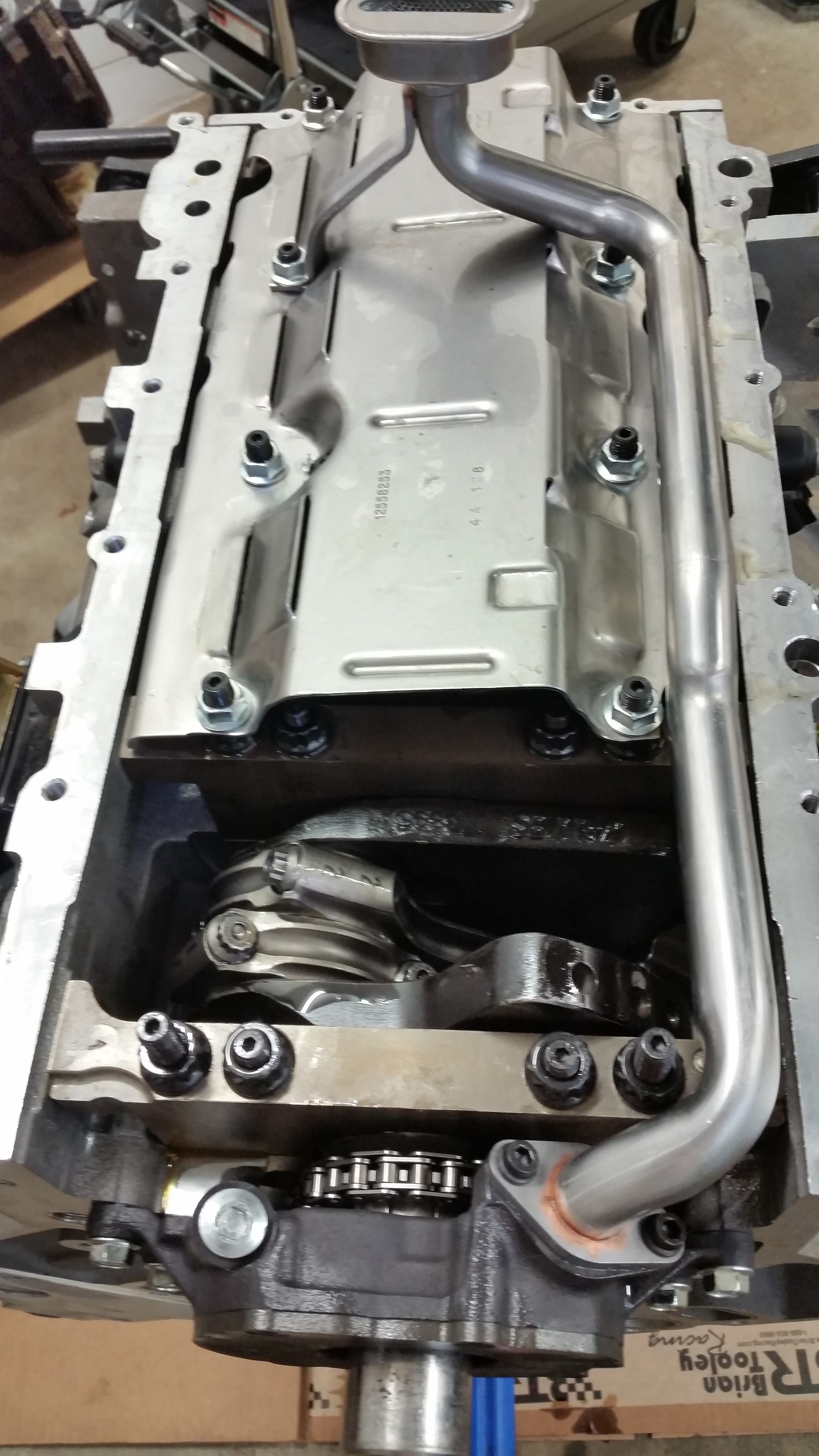

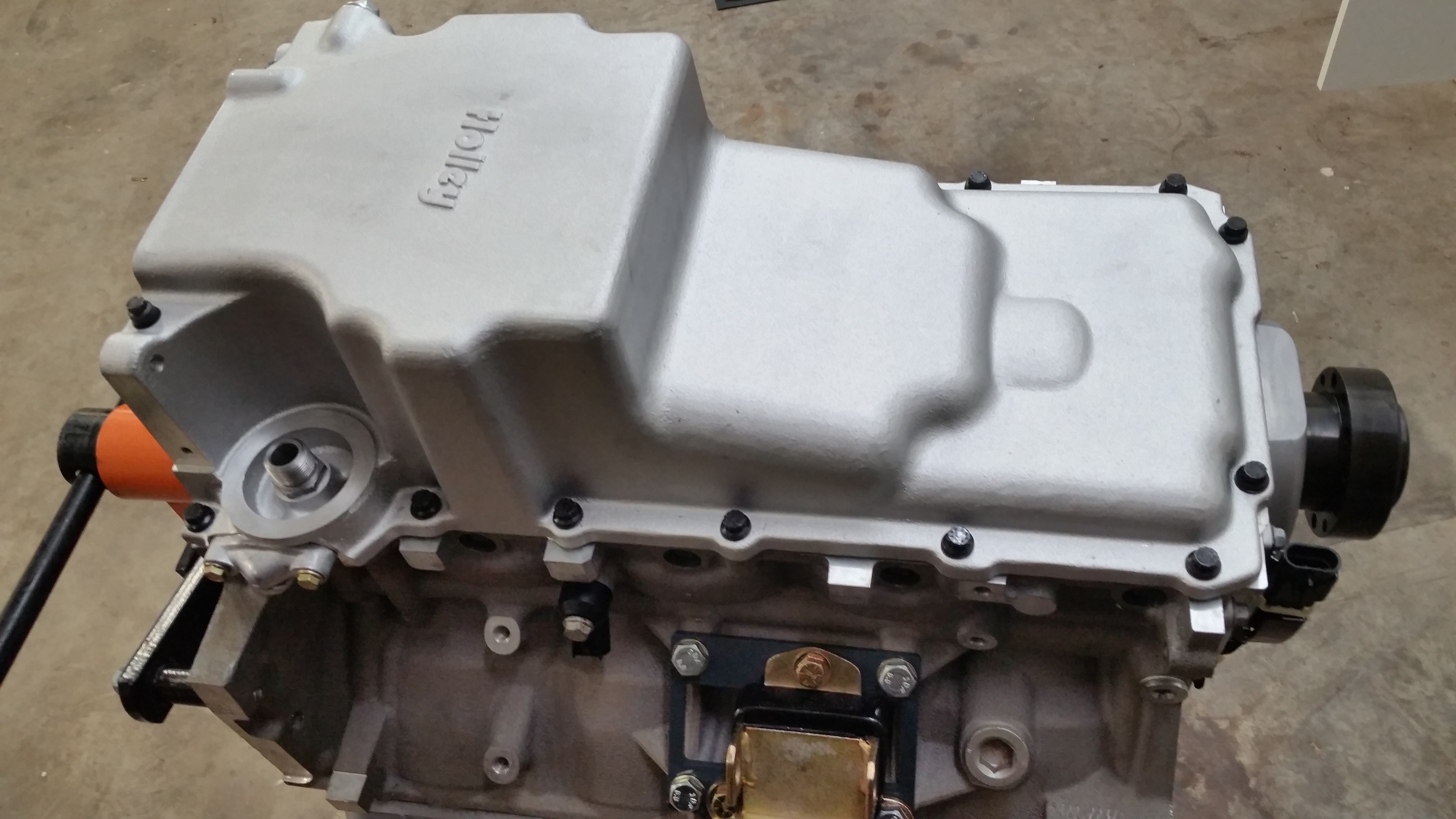

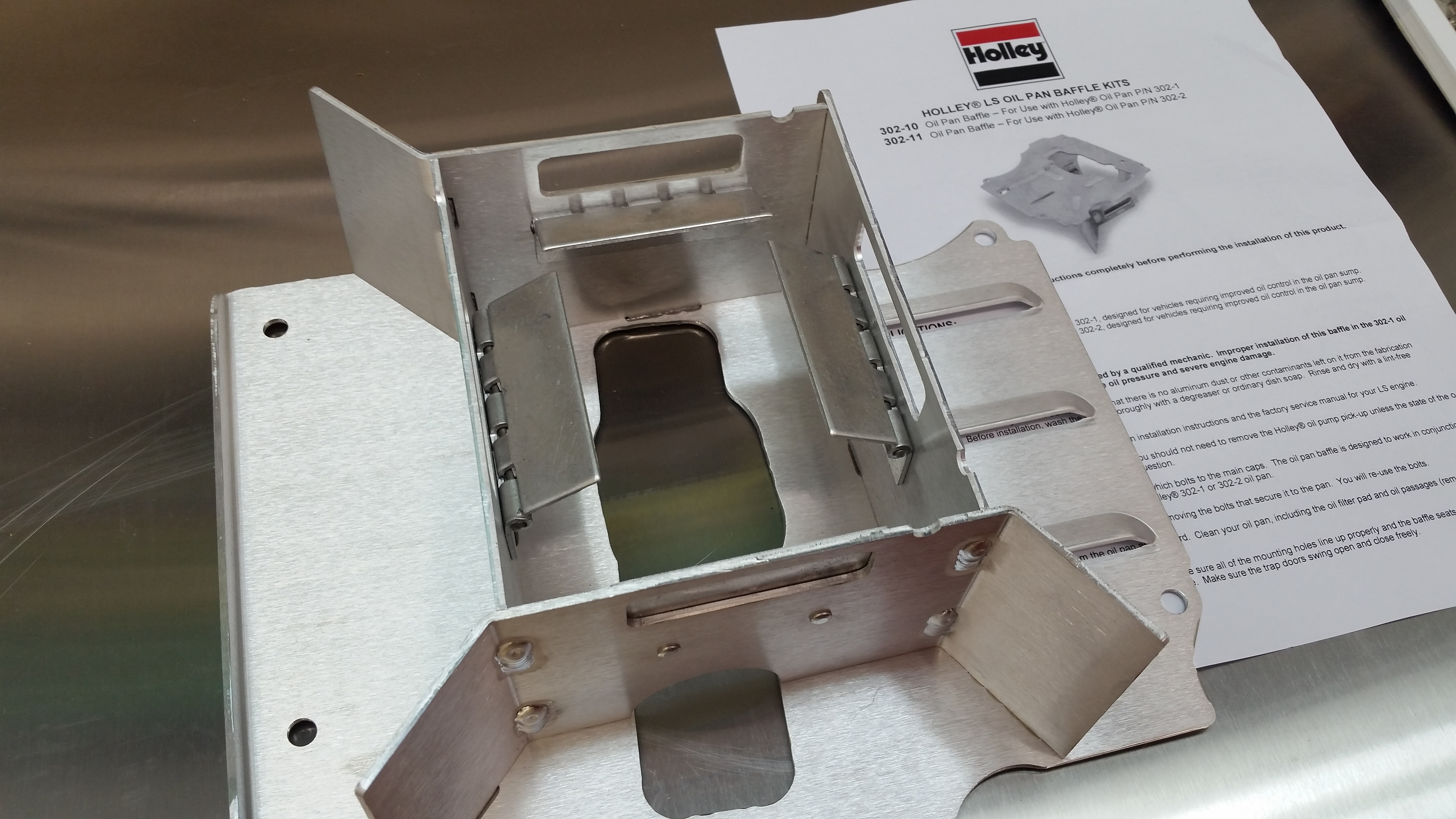

Fitted with Holley 302-2 oil pan, pickup, and race baffle:

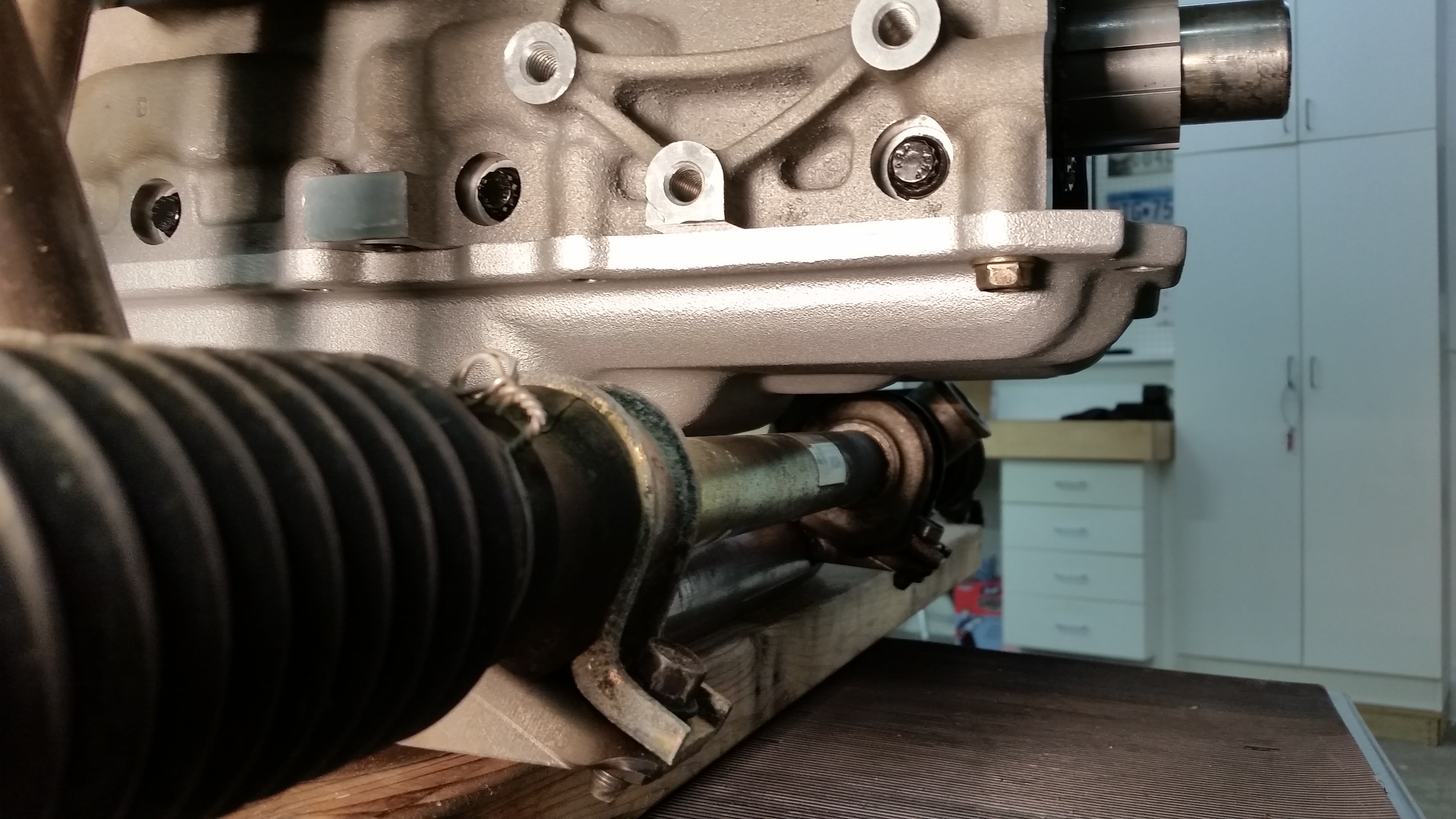

Note: Manual steering rack^^^
Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-268.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-309.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-320.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-232.jpg

Last edited by crispy; 02-07-2016 at 09:02 PM.
crispy is offline
The following users liked this post:
darkblue (04-27-2016)
Old 02-07-2016, 09:26 PM
  #4
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

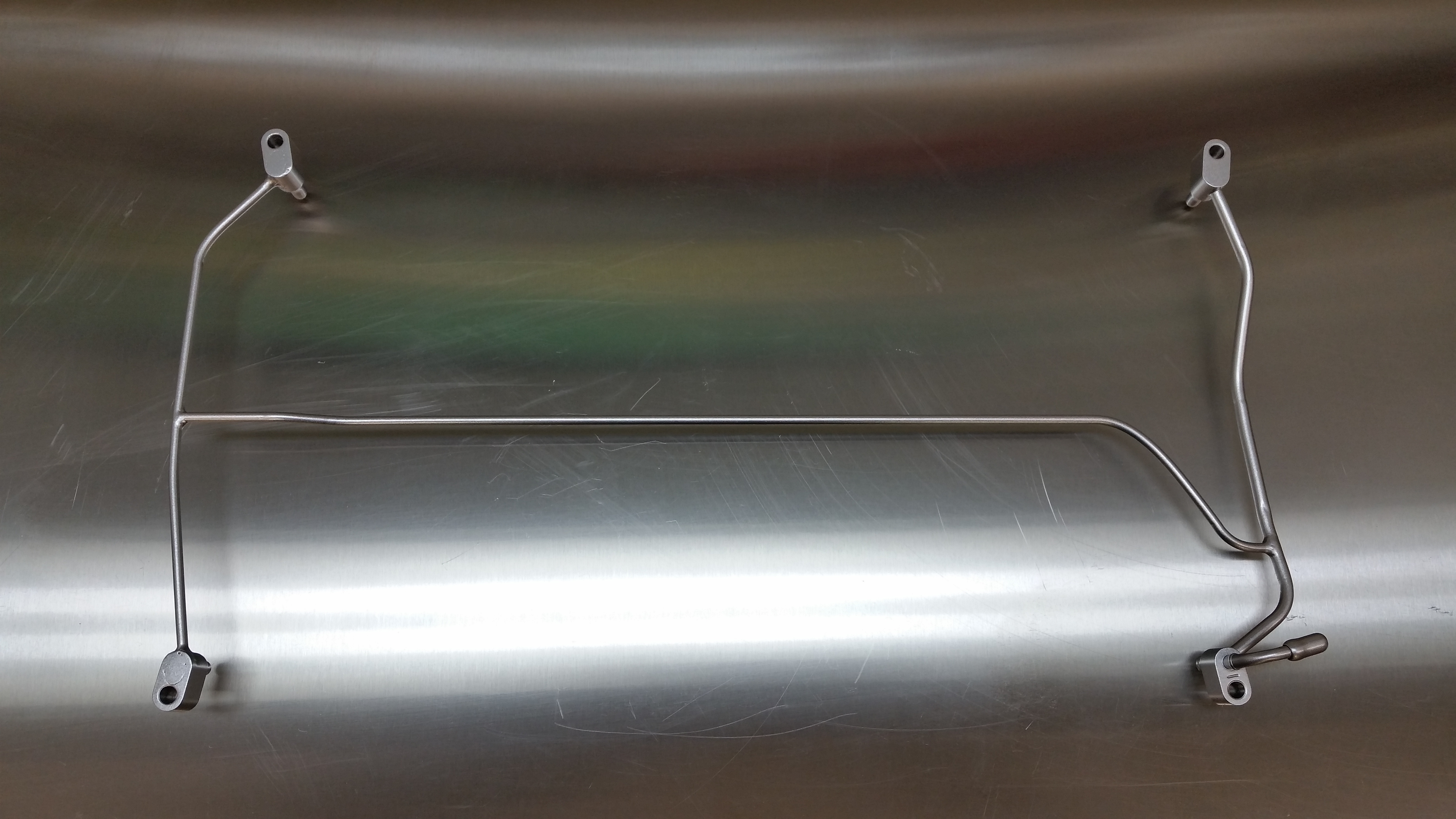

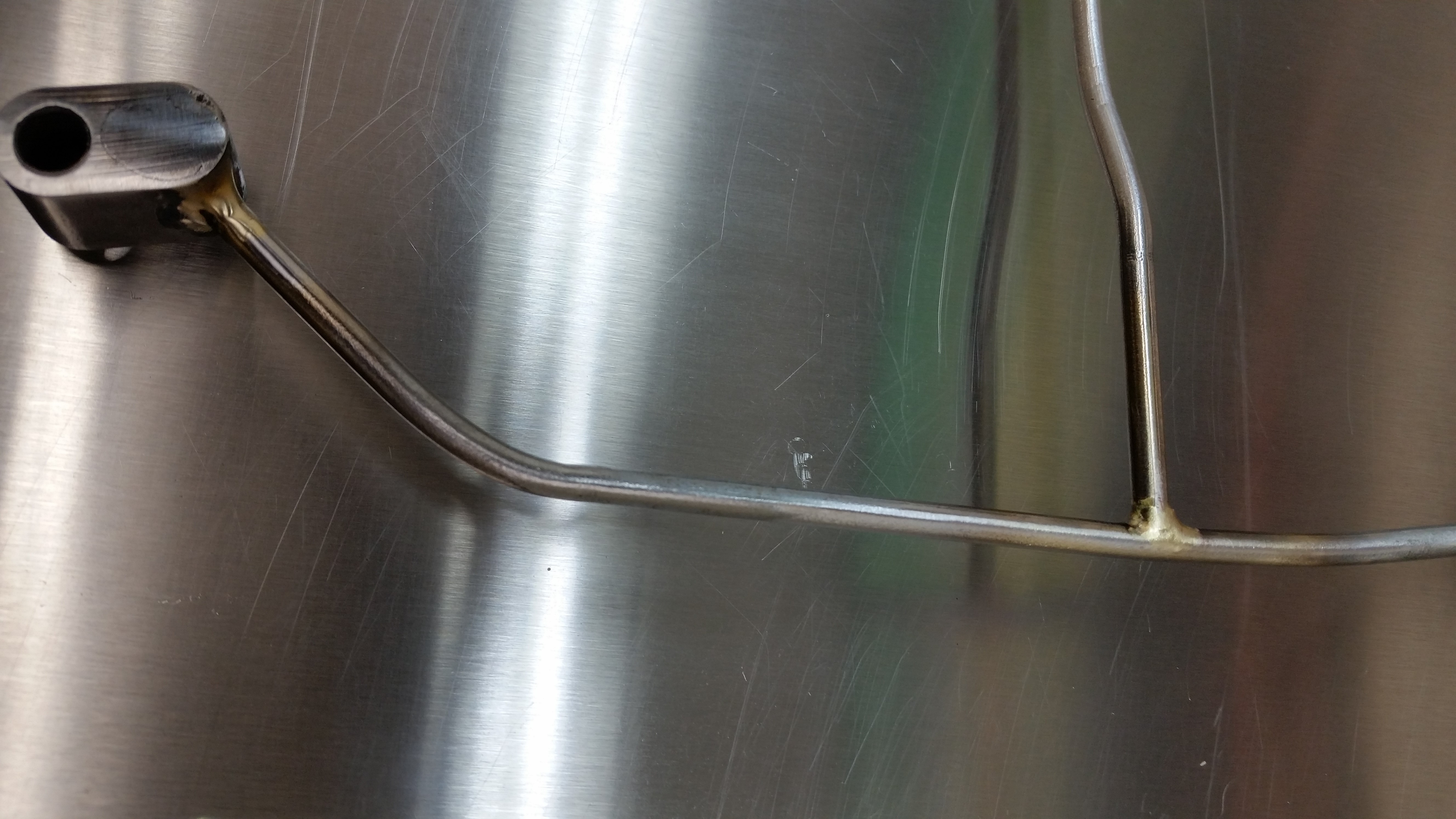

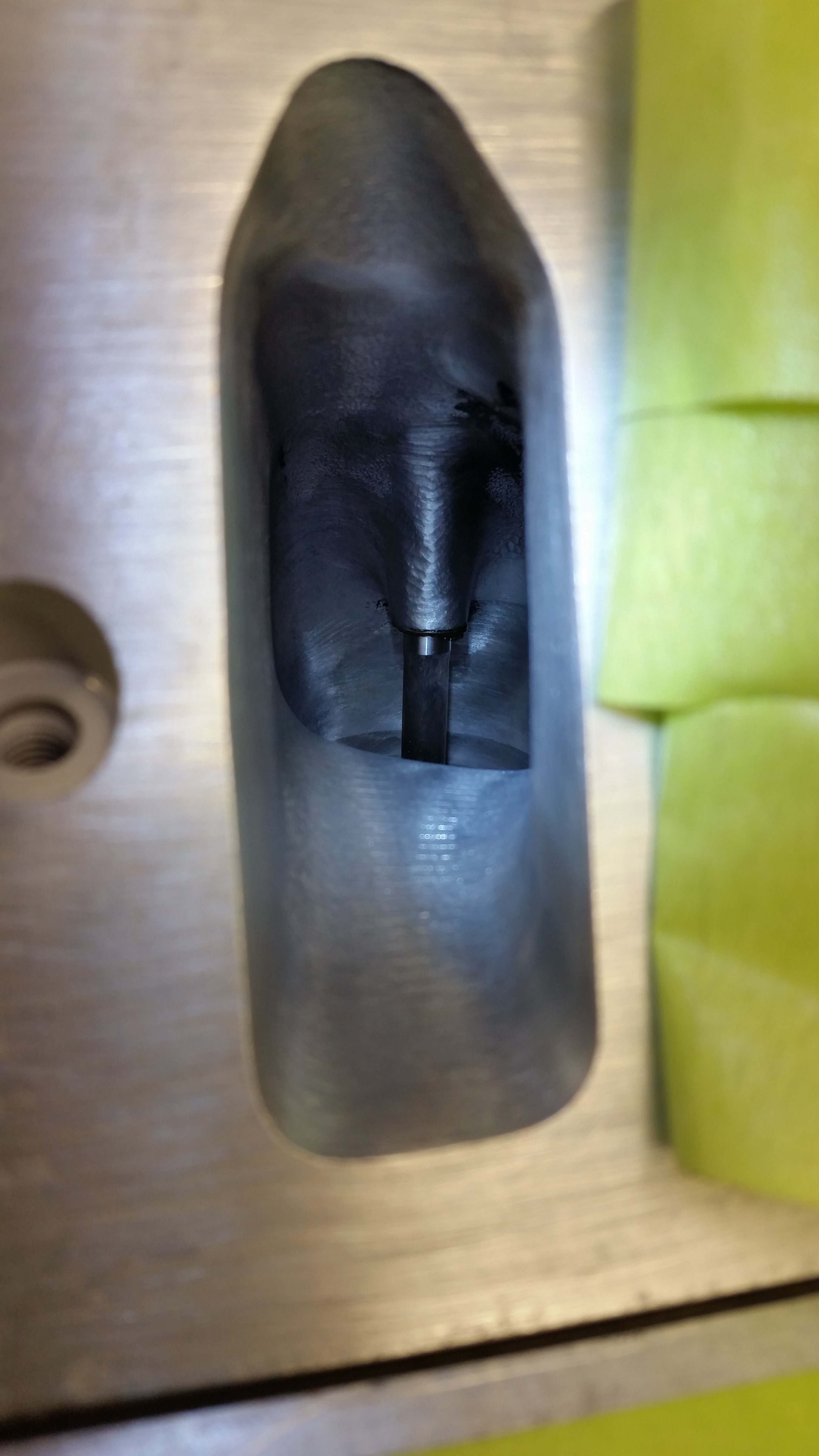

Tired of the search for a proper 4-corner coolant crossover that would fit under a factory intake, I decided to make one. In order for that to happen, I had to teach myself to bronze braze.




Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-418.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-426.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-432.jpg
crispy is offline
Old 02-07-2016, 09:37 PM
  #5
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

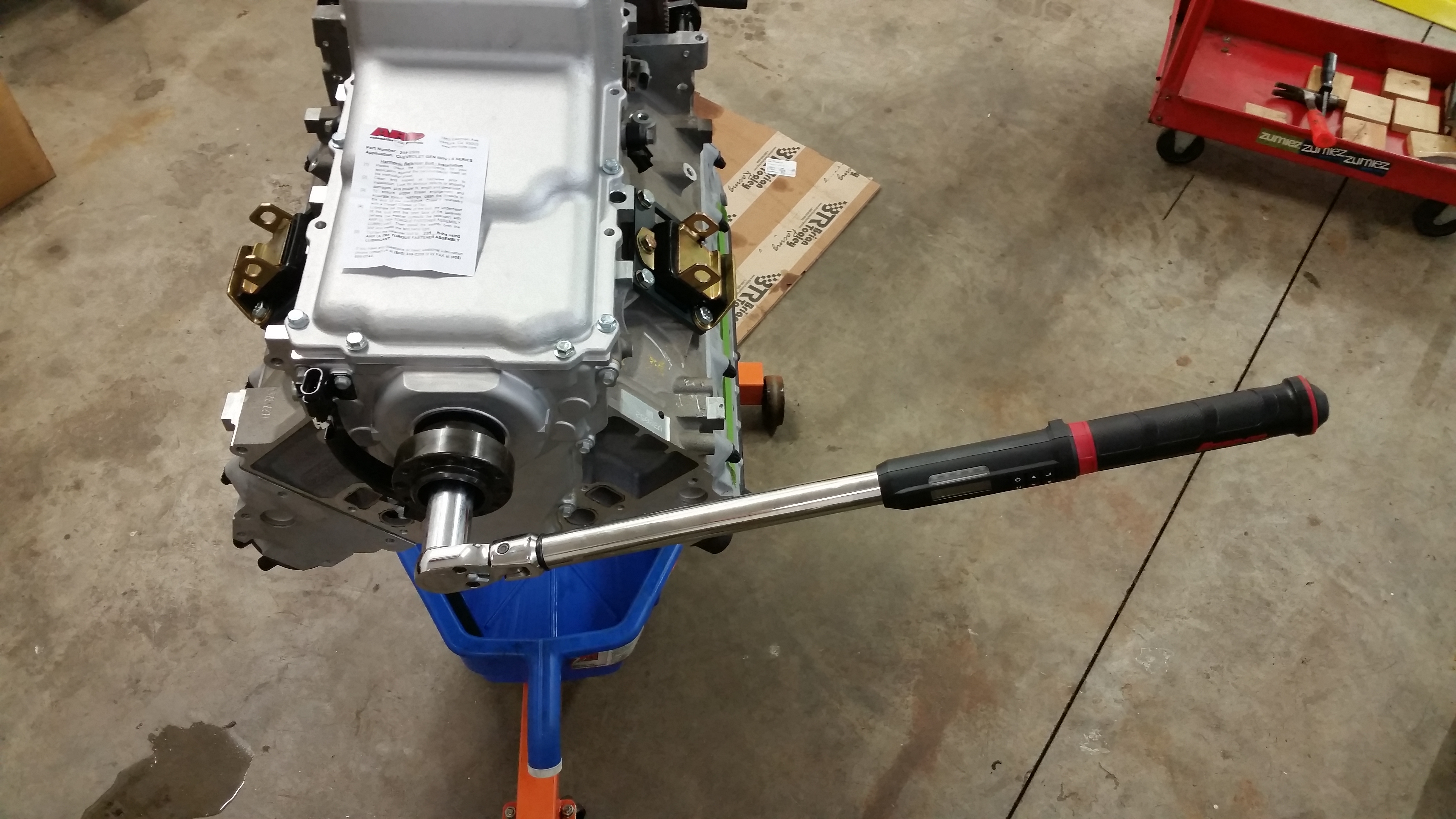

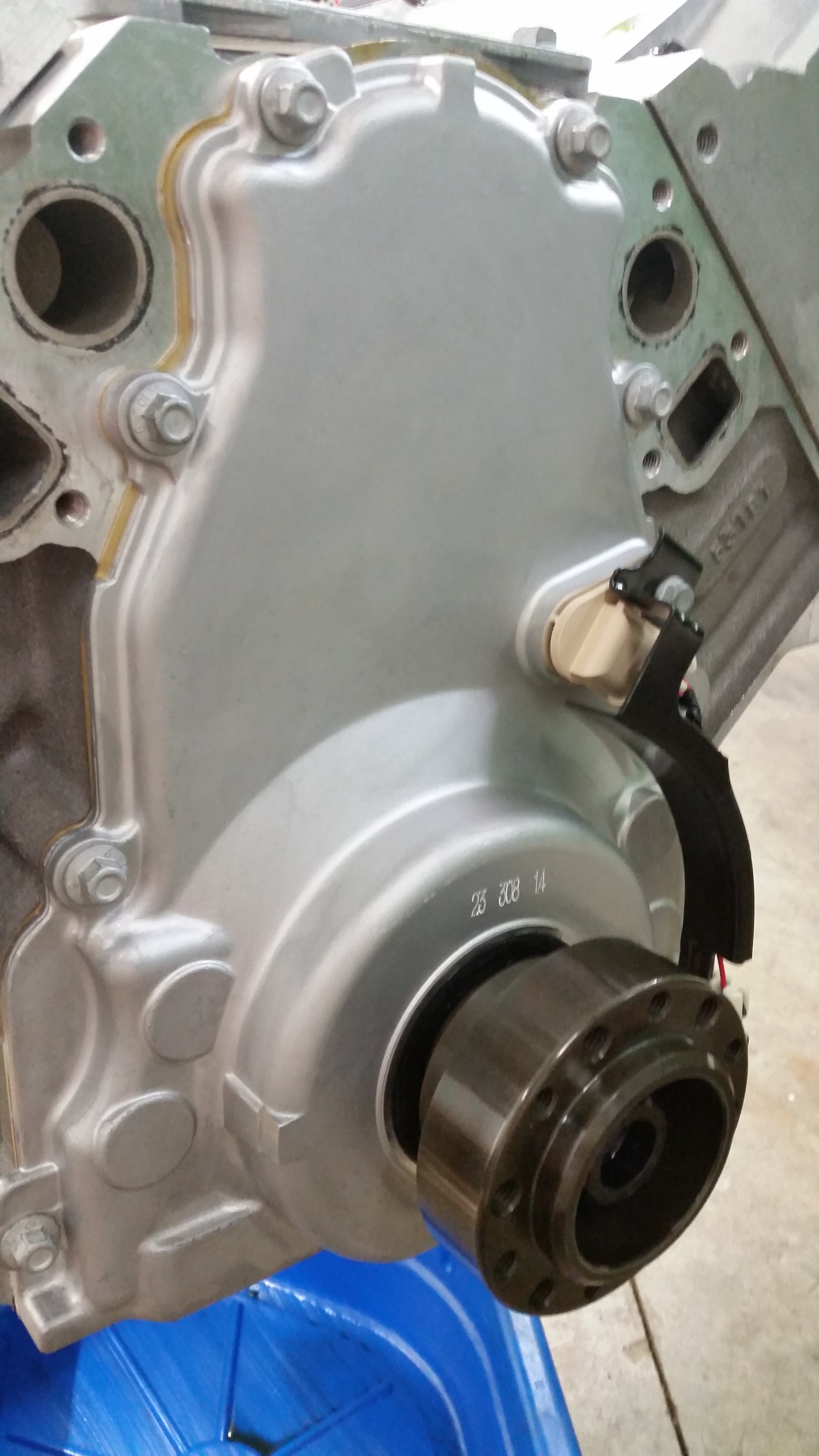

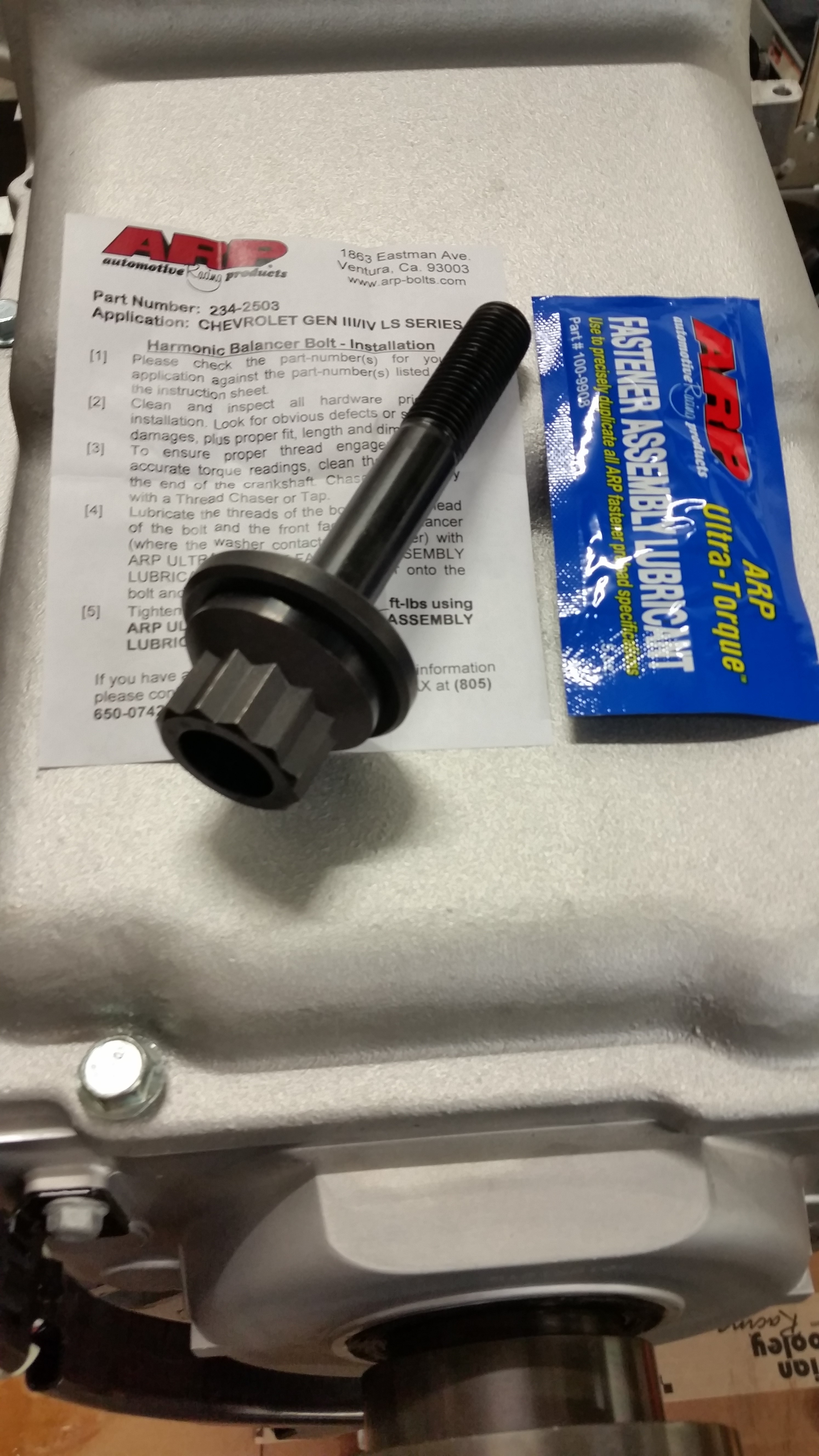

ATI Super Damper hub with ARP crank bolt. I had to boil the hub for about 30 min to install on the crank. Even then, it was a bear to pull on to the crank. I made a custom puller, and it worked, but found when I removed it that my puller was stretched to the point that it is now useless.


Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-312.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-313.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-315.jpg
crispy is offline
Old 02-07-2016, 09:47 PM
  #6
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

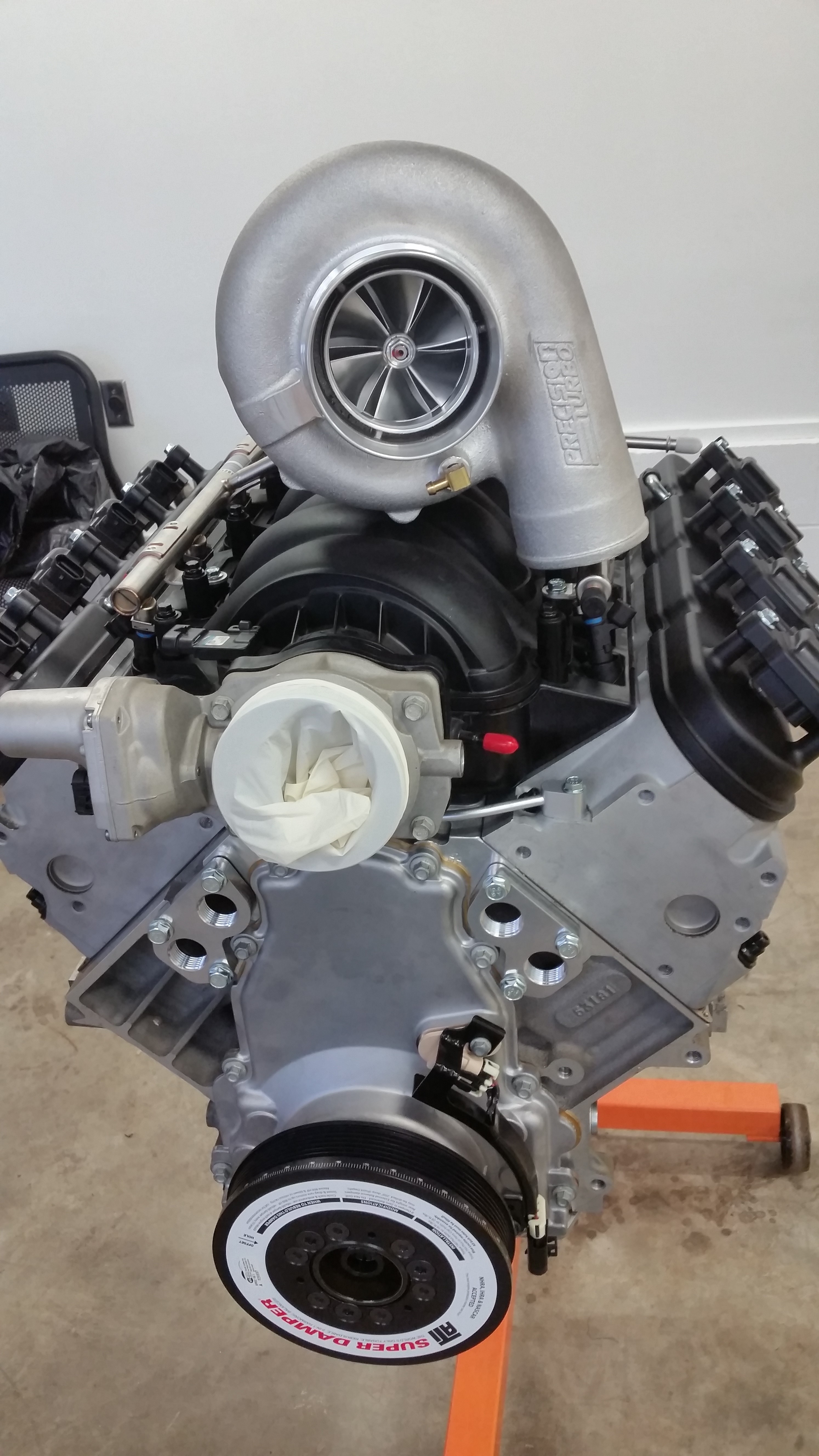

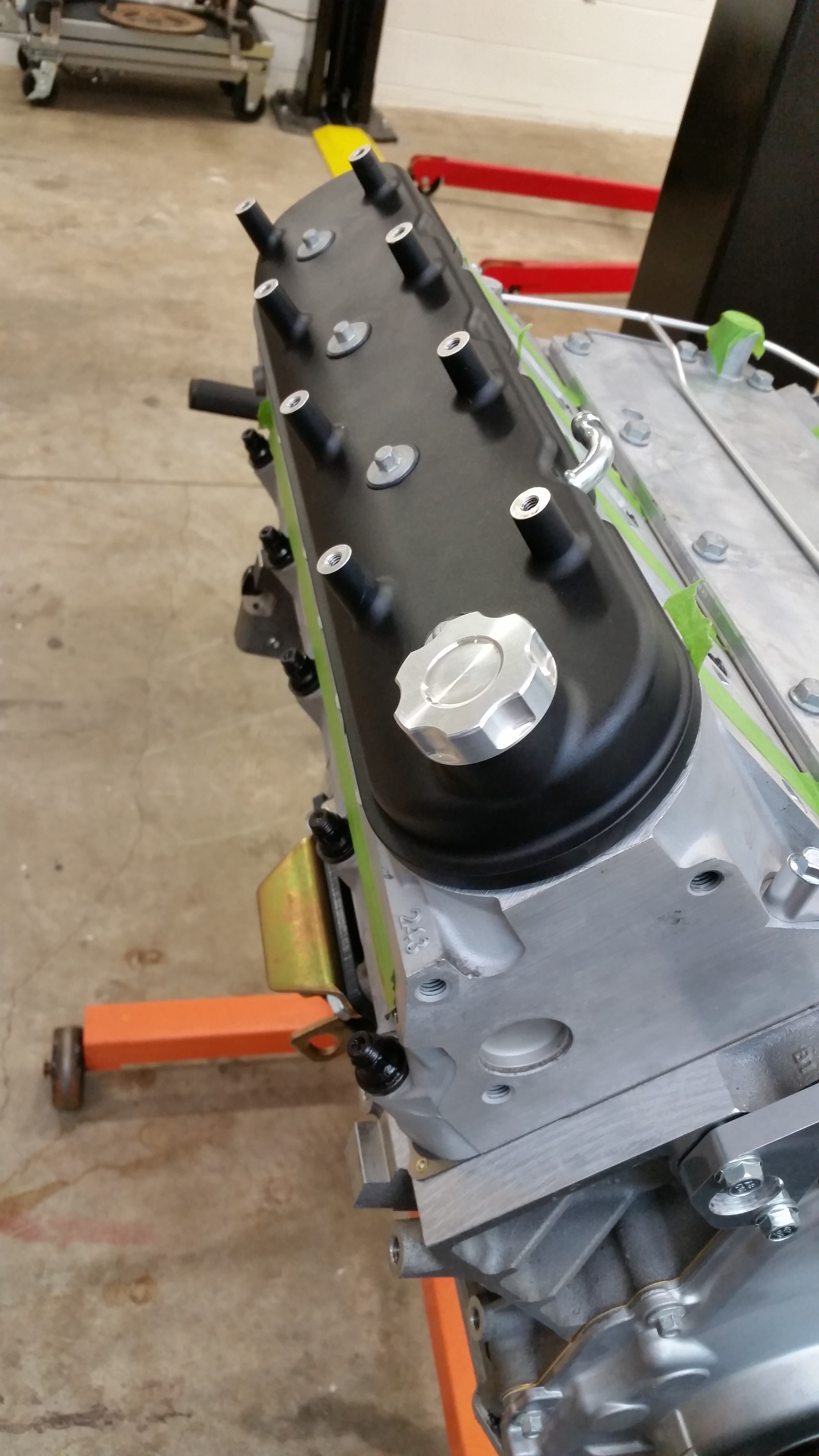

I fitted Holley valve covers to keep the engine clean.

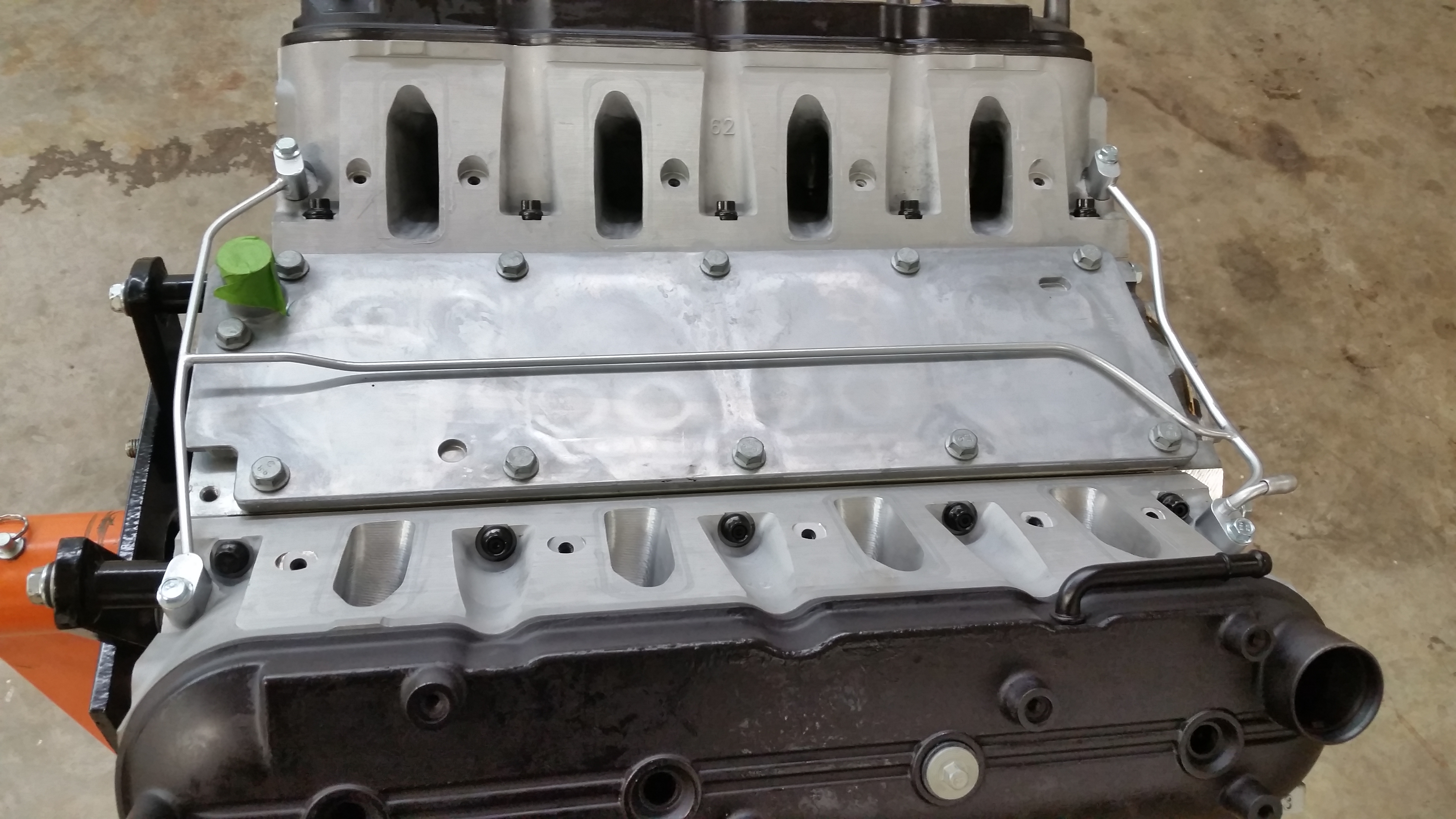

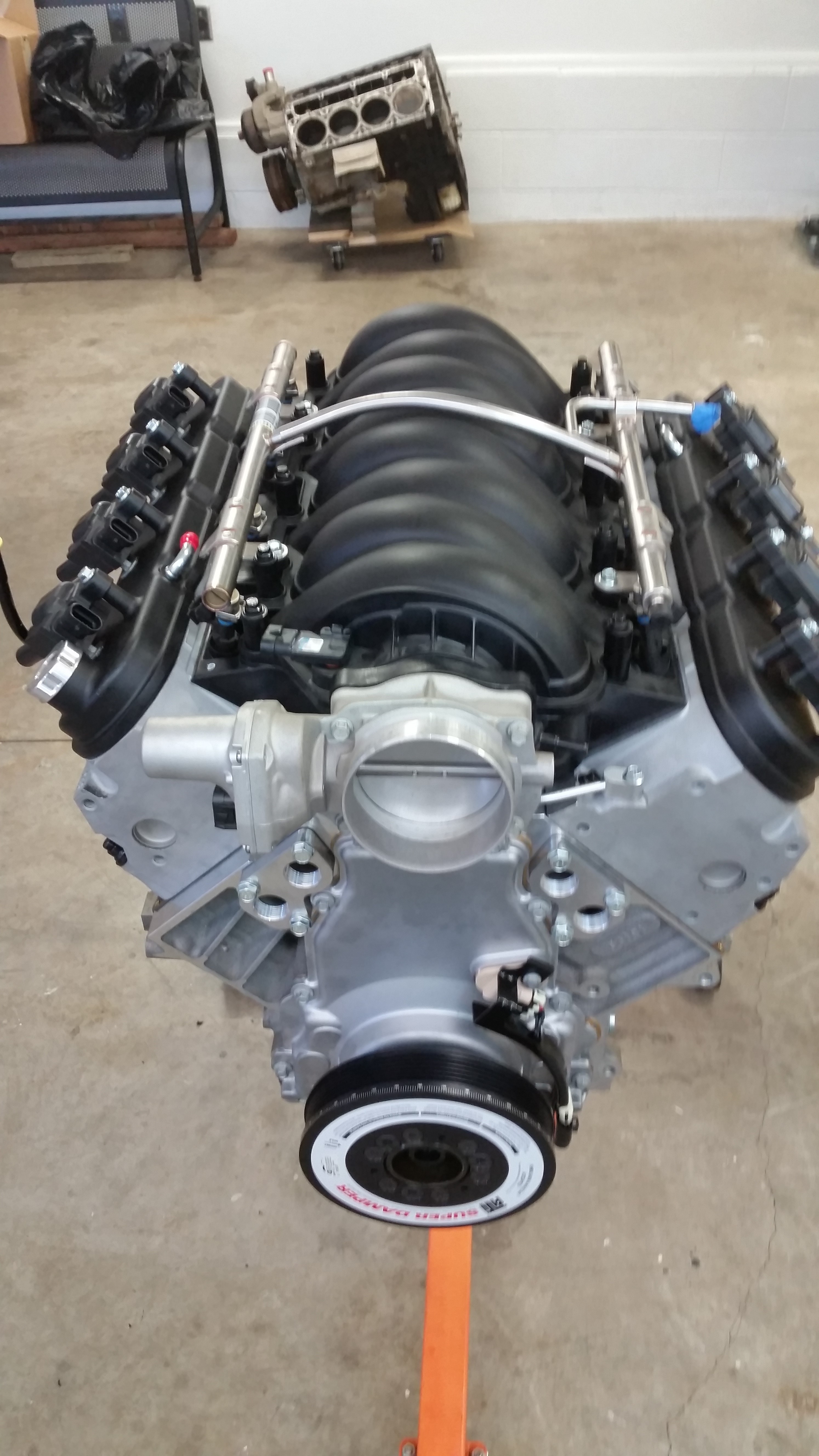

Installed the LS2 intake. This was a factory new takeoff that I bought from SDparts.com. It came with the injectors, rail and throttle. I will use these injectors and rails when I dyno the engine for break-in. Then they will be ditched for high flow units more suited for boosted applications.

Coil packs and ATI damper now fitted also.

Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-440.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-467.jpg
crispy is offline
Old 02-07-2016, 10:13 PM
  #7
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

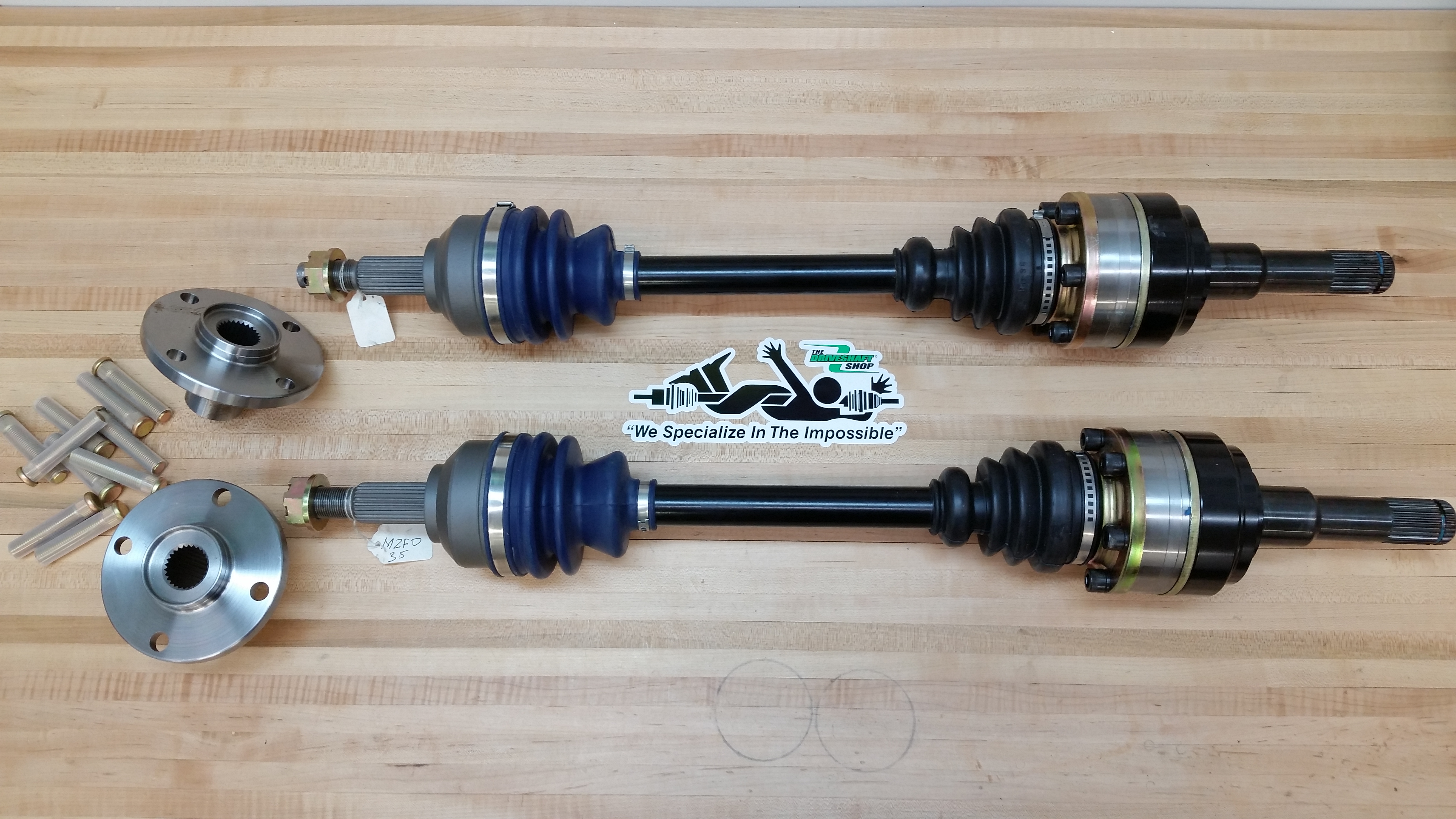

The drivetrain will consist of Driveshaft Shop 1000hp axle/hub kit mated to a refreshed cobra IRS carbon clutched LSD.

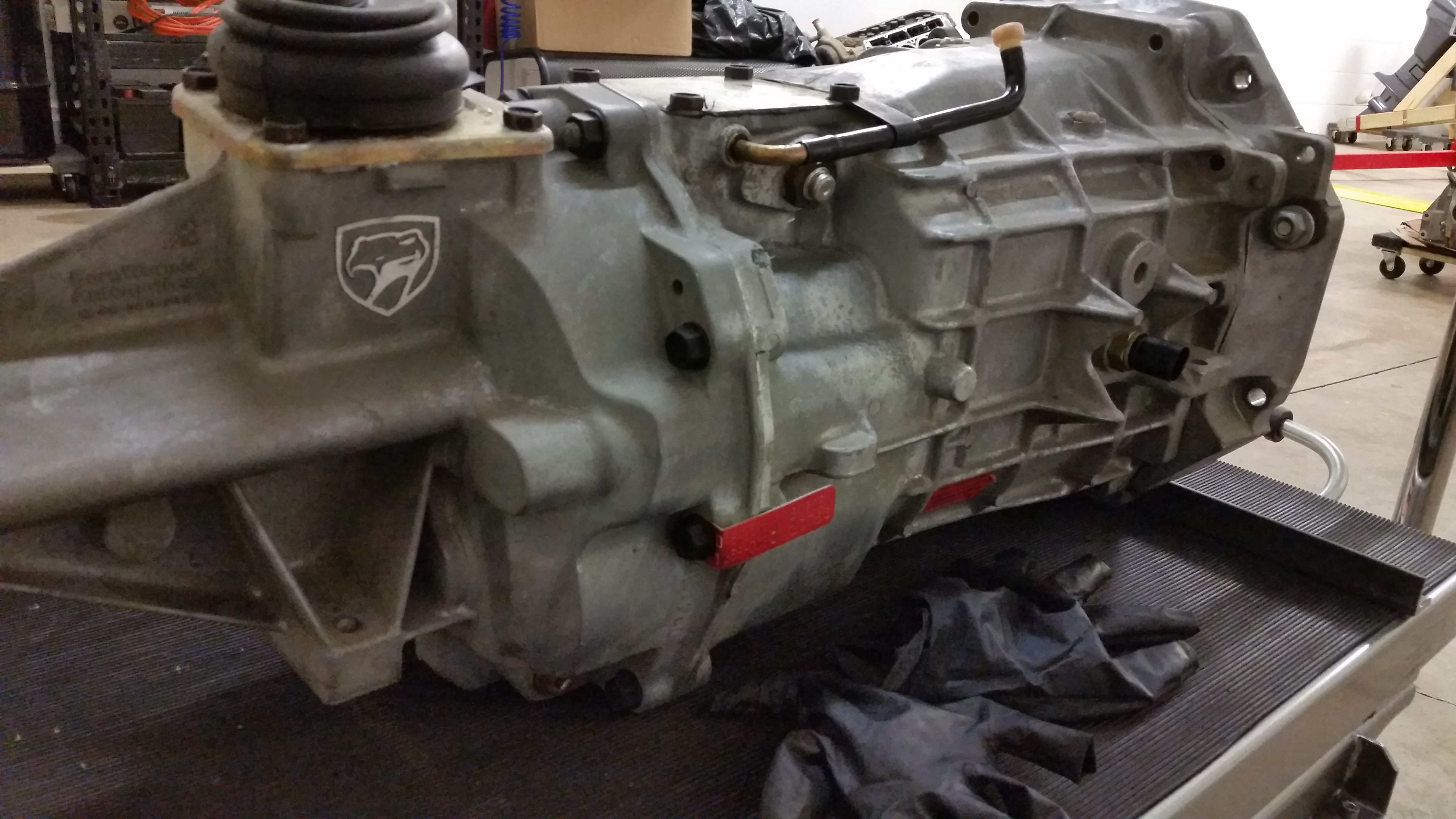

The T56 is from a Viper, and a Lakewood RM6038 bell housing(not pictured) will take care of fitting the viper trans to the LS. This will require an adaptor pilot bearing. Also, I have a McLoed RST twin disc clutch(also not pictured).

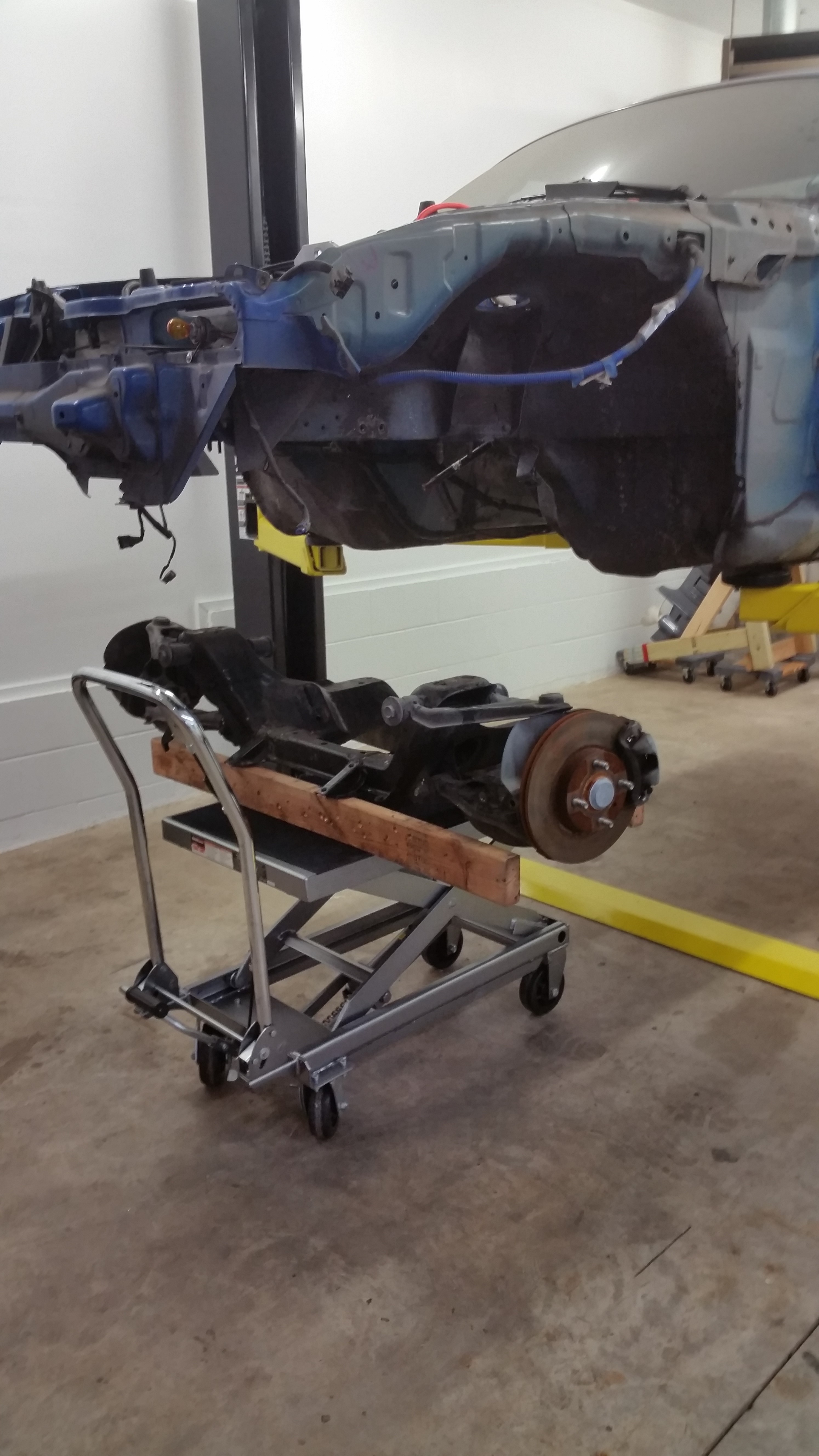

The subframes are out and the interior is partially disassembled. This is the current status of the car. Lot's of work ahead of me. Be patient with me



....and a pic just for fun.

Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-054.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-451.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-470.jpg   Crispy's Project Overkill: Turbo 5.3-galaxy-s5-pics-vids-468.jpg
crispy is offline
Old 02-08-2016, 03:46 AM
  #8
V8 Miata Protégé

ToySnakePMC's Avatar

Join Date: Oct 2012
Location: Fuquay Varina, NC
Posts: 512
Recieved 31 Likes on 29 Posts
Default

Wow, let me jump in here... Just doing a normal check-in with the forum and had to do a double take here. I'd say you have quite an impressive build strategy! I will gladly follow along and say thanks now for posting YOUR thread here. Somebody just turned the heat up in this place...
ToySnakePMC is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-08-2016, 09:45 AM
  #9
V8 Miata Protégé

stng_96's Avatar

Join Date: Feb 2015
Location: Marion Illinois
Posts: 523
Recieved 73 Likes on 53 Posts
Default

Great start to a build thread here, looking forward to seeing how you set up that turbo.
stng_96 is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-08-2016, 07:53 PM
  #10
V8 Miata Protégé

Join Date: Nov 2014
Location: South FL
Posts: 485
Recieved 37 Likes on 33 Posts
Default

fantastic looking build so far, but I've gotta ask how come you're keeping stock ls7 lifters VS some nice Morel or Lunati ones with link bars to eliminate the trays (and possibility of spinning a lifter in the bore)
SupaDupaSteve is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-08-2016, 09:18 PM
  #11
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

Originally Posted by stng_96 View Post
Great start to a build thread here, looking forward to seeing how you set up that turbo.
Me as well! So far, the plan is to run a remote electric water pump(notice the coolant adaptors in the last pic?), and possibly tube the front core support for more clearance. The manifolds will likely have to be fabricated.
crispy is offline
Old 02-08-2016, 09:44 PM
  #12
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

Originally Posted by SupaDupaSteve View Post
fantastic looking build so far, but I've gotta ask how come you're keeping stock ls7 lifters VS some nice Morel or Lunati ones with link bars to eliminate the trays (and possibility of spinning a lifter in the bore)
Hi Steve. I was concerned about this too. Maybe I still am a little. At the time, I did a lot of reading and asking around, and convinced myself that most failures of the Chevy lifters were attributed to a poorly setup valvetrain, used parts with new, incorrect pushrods, poor quality cams, used trays, poor maintenance, worn springs......you get the idea. I set up my valvetrain with the help of my machinist. I expressed a little concern and he didn't seem to have any worries.

Does this guarantee that the lifters are up to the task? Not at all. I realize that this is a machine and anything can fail at any time. I am going to run it on the engine dyno to break it in before I put it into the Miata. Maybe I will convince myself by then that the $600 lifters are worth it. Who knows
crispy is offline
Old 02-09-2016, 10:04 AM
  #13
V8 Miata Fan

Join Date: Aug 2010
Location: woodstock
Posts: 54
Recieved 4 Likes on 3 Posts
Default

nice build. sending you good vibes.

one thing though the Lakewood RM6038 bell housing. i had one of those, it hung 2" below the bottom of the car. might i recommend getting a t56 bell housing from tremic. that saved me 15lbs and gave me more clearance.
be good is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-09-2016, 10:11 AM
  #14
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

Originally Posted by be good View Post
nice build. sending you good vibes.

one thing though the Lakewood RM6038 bell housing. i had one of those, it hung 2" below the bottom of the car. might i recommend getting a t56 bell housing from tremic. that saved me 15lbs and gave me more clearance.
Jeez. I know it is a bit larger, but 2"? I guess I will cross that bridge when I get to it. I was hoping to avoid cutting the input shaft of the transmission in order to fit a f-body bell housing. Thanks for the heads up!
crispy is offline
Old 02-10-2016, 12:05 PM
  #15
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

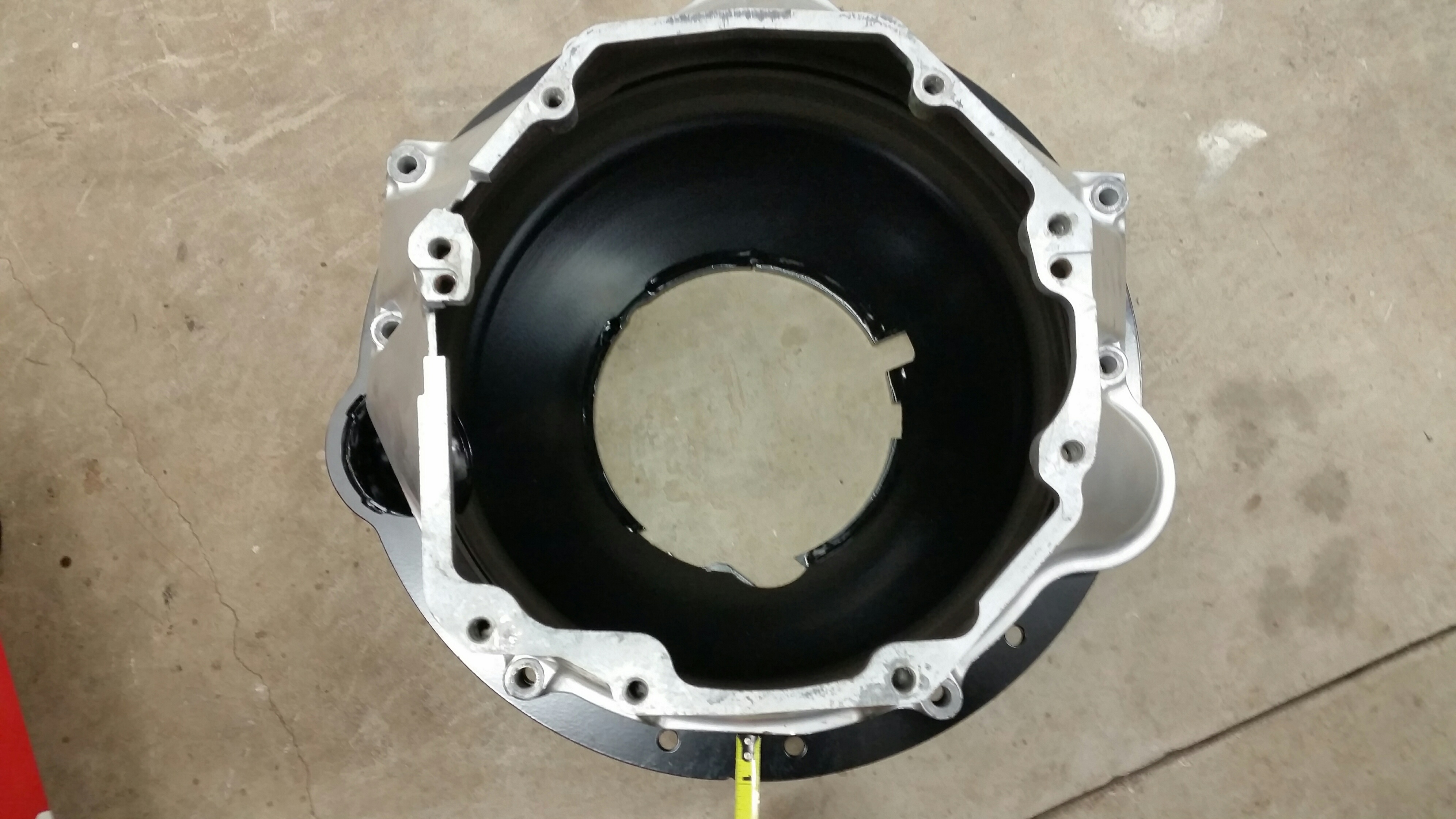

Update in the Lakewood bell housing: After thinking about Be Good's post about the Lakewood bell housing creating ground clearance issues, I decided to line it up with a bell housing from an F-body. I measured 1 inch of flange that may have to be trimmed.

Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-20160209_194519_resized.jpg
crispy is offline
Old 02-11-2016, 08:04 AM
  #16
V8 Miata Zealot

tbone heller's Avatar

Join Date: Mar 2010
Location: Canton, Georgia
Posts: 1,159
Recieved 41 Likes on 39 Posts
Default

I had to cut the flange off of the Lakewood bell housing on my Cobra. Those things are made out of some serious metal.
tbone heller is offline
Old 02-20-2016, 07:18 PM
  #17
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

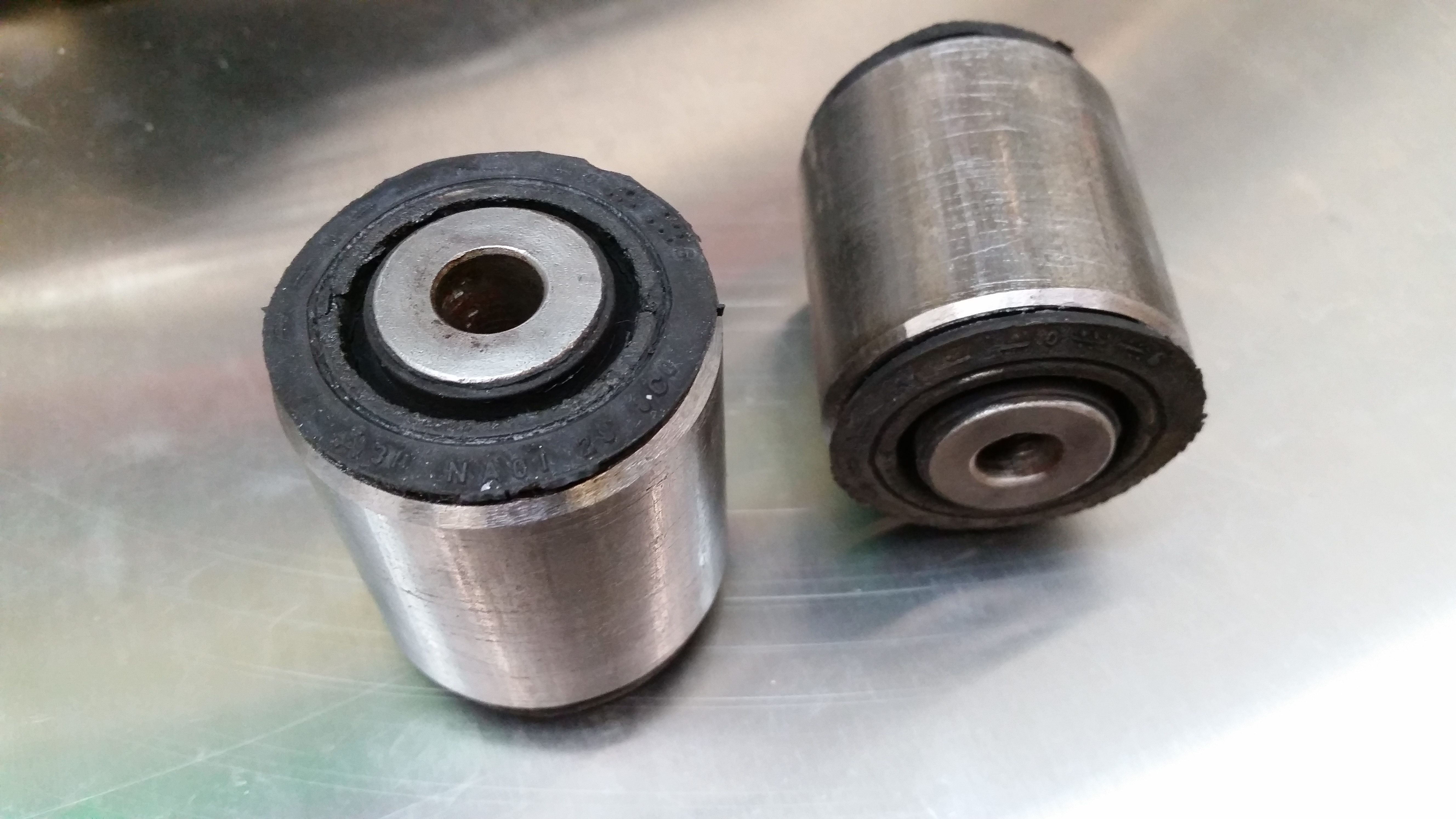

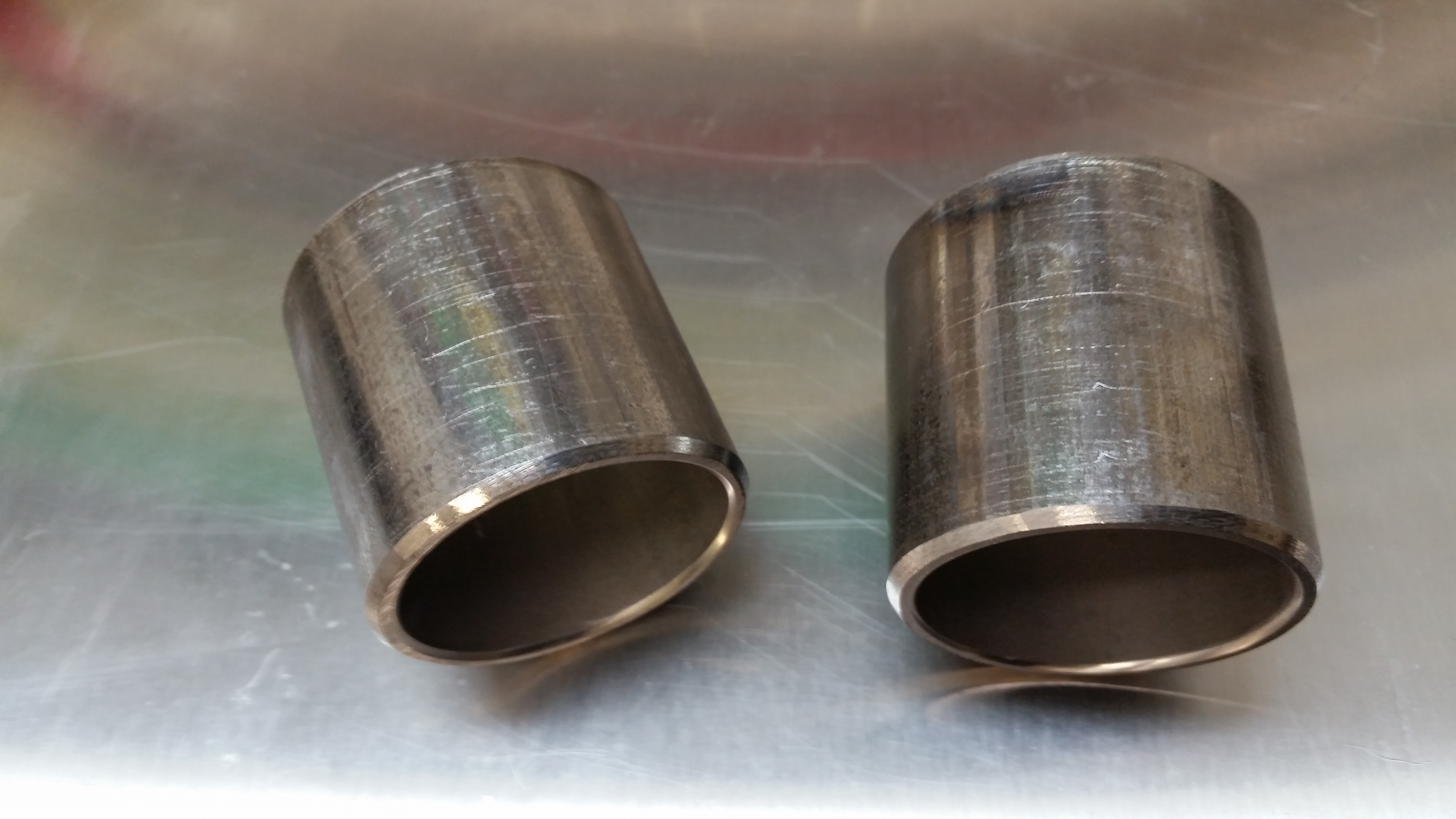

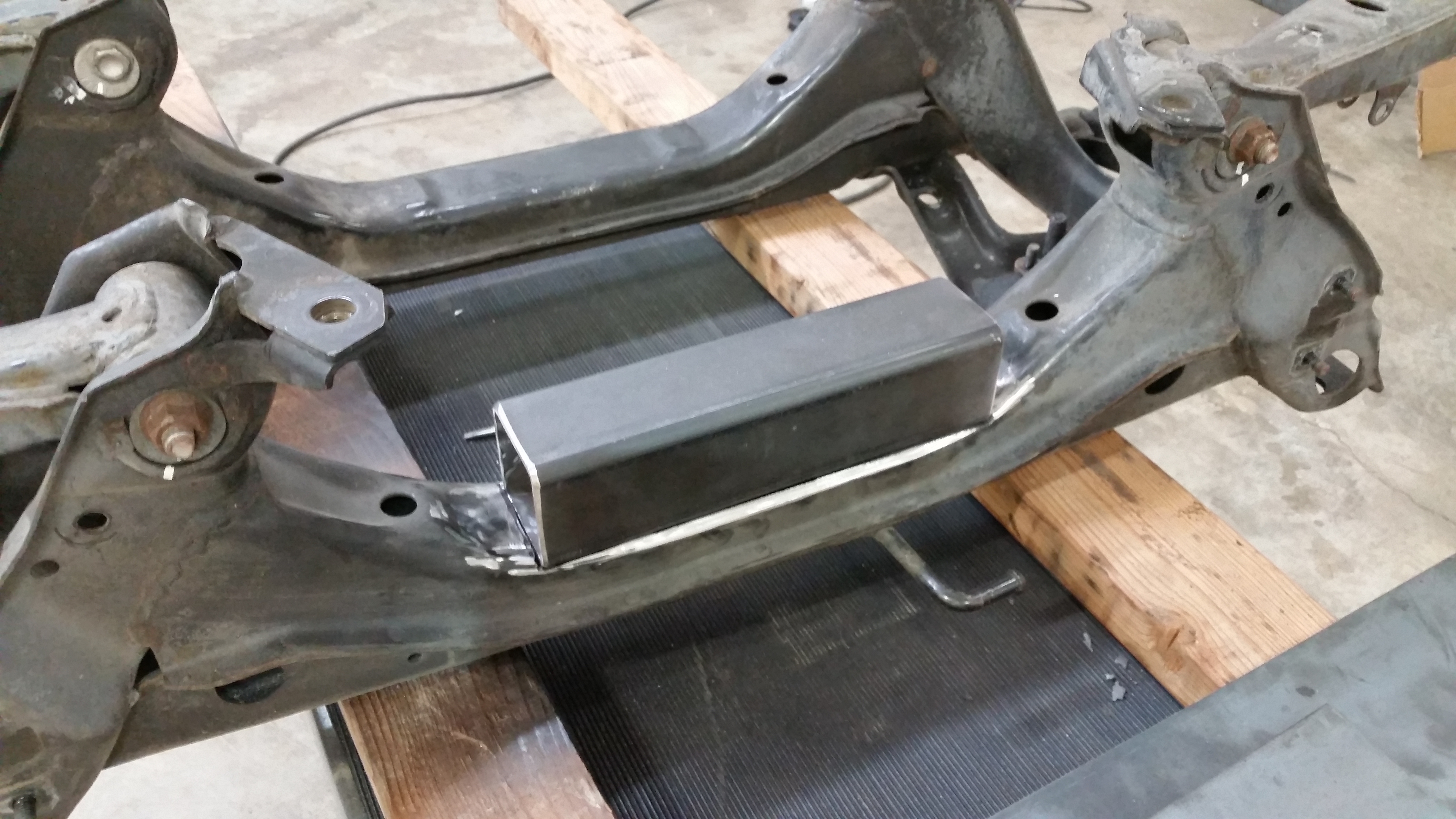

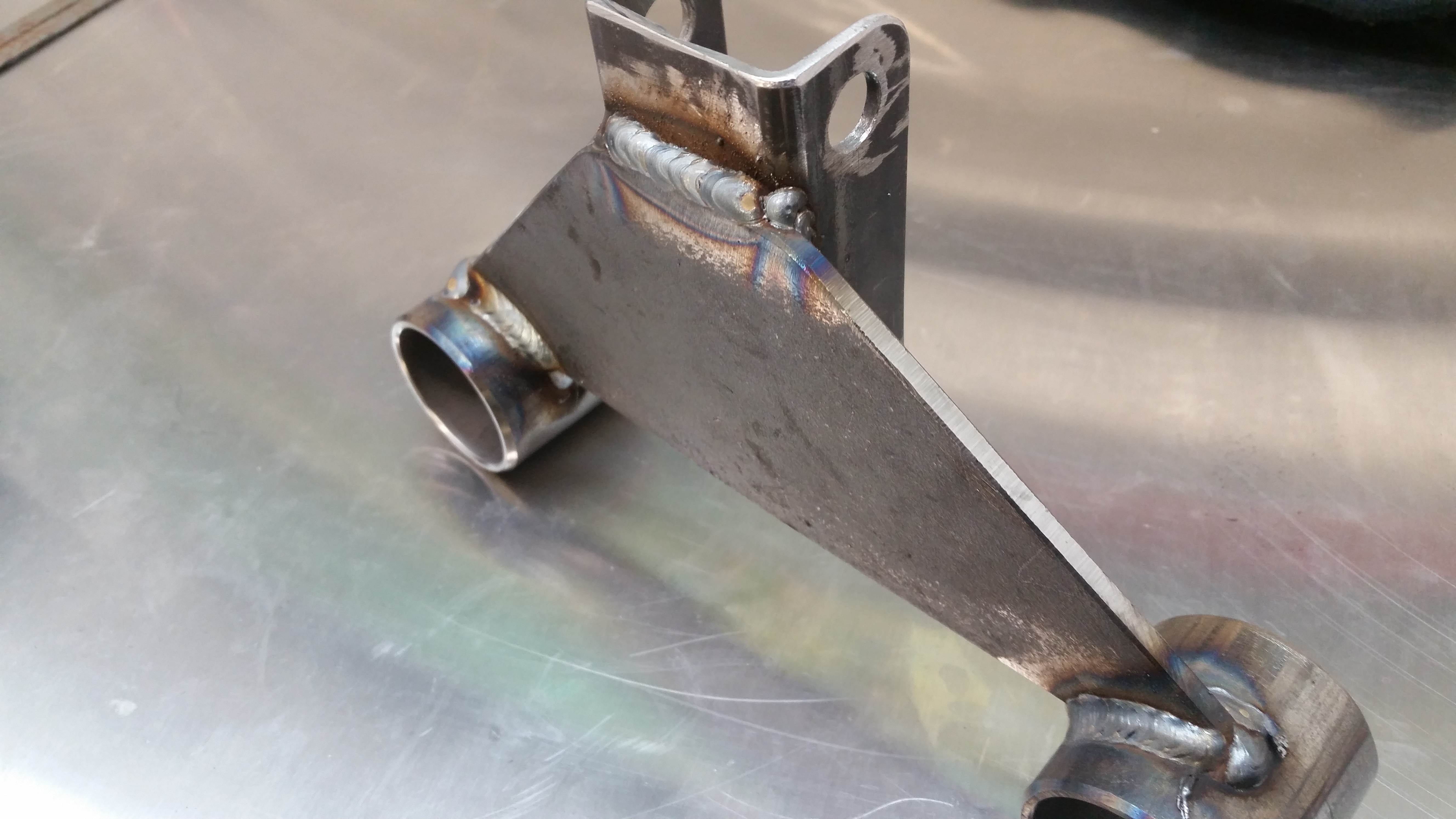

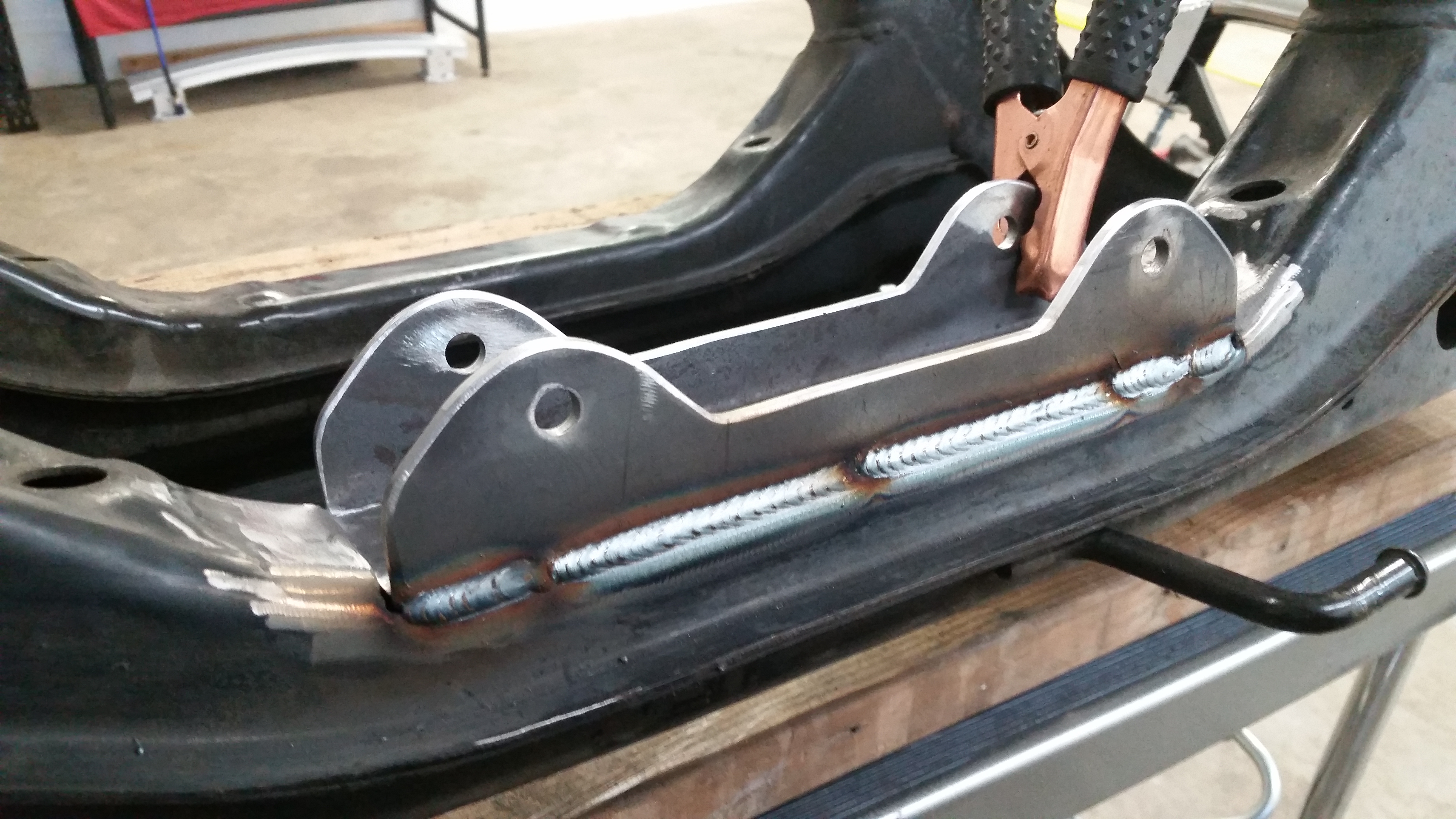

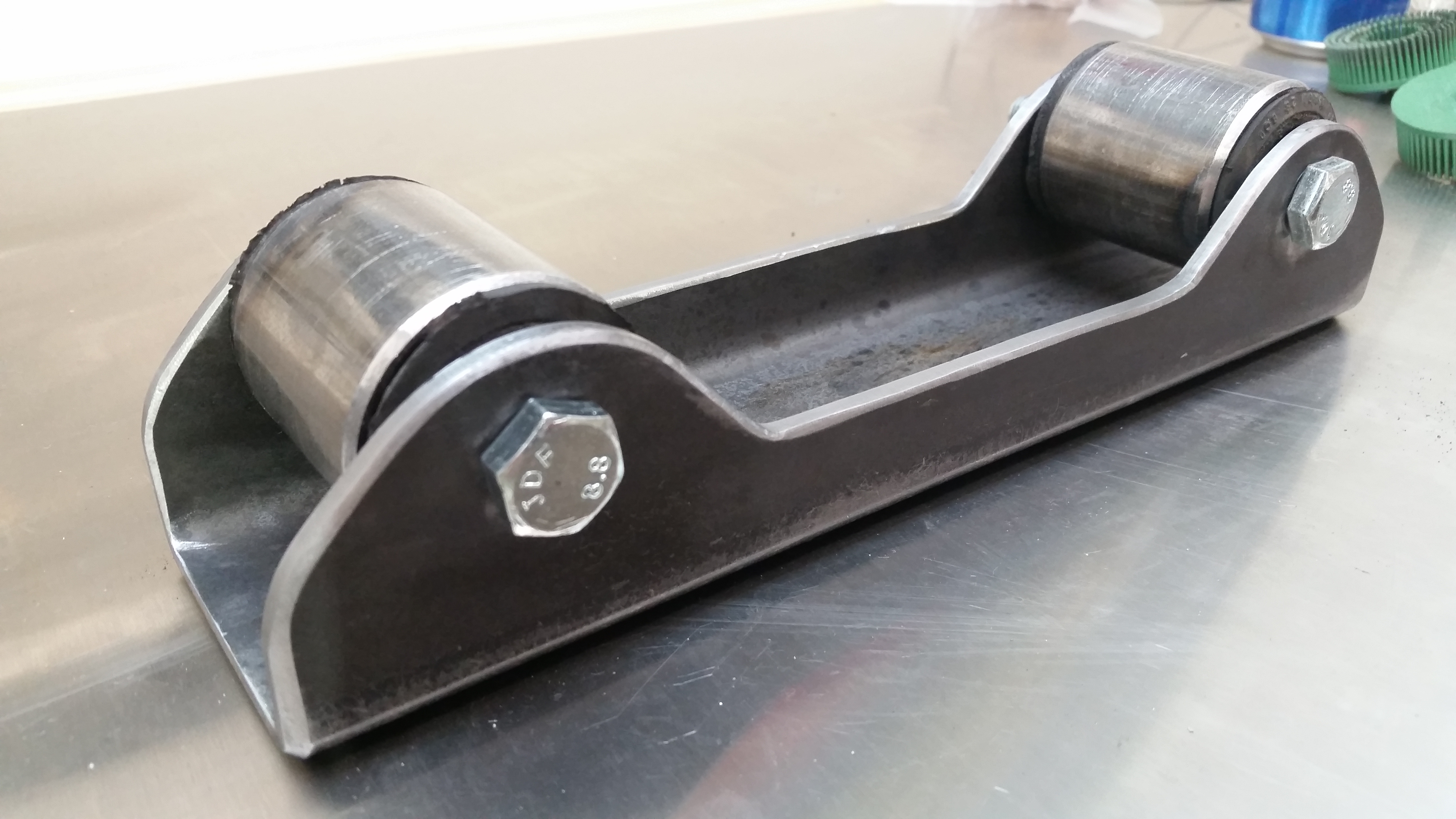

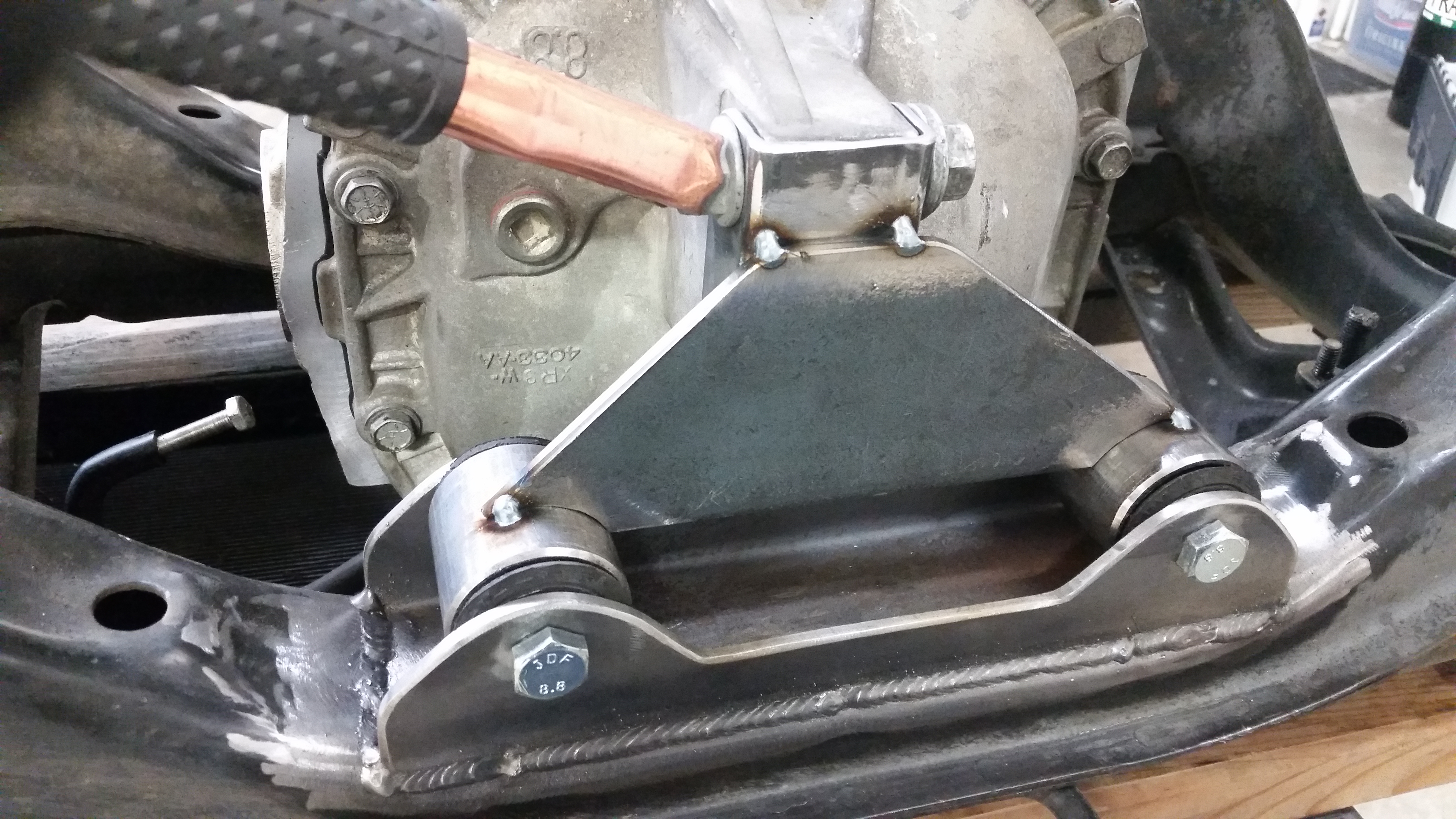

I fabbed up a rear diff mount today:








Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-20160217_190837.jpg   Crispy's Project Overkill: Turbo 5.3-20160217_183958.jpg   Crispy's Project Overkill: Turbo 5.3-20160219_185512.jpg   Crispy's Project Overkill: Turbo 5.3-20160220_155125.jpg   Crispy's Project Overkill: Turbo 5.3-20160220_162716.jpg

Crispy's Project Overkill: Turbo 5.3-20160220_175902.jpg   Crispy's Project Overkill: Turbo 5.3-20160220_182151.jpg   Crispy's Project Overkill: Turbo 5.3-20160220_182335.jpg   Crispy's Project Overkill: Turbo 5.3-20160220_184223.jpg

Last edited by crispy; 02-22-2016 at 07:36 AM.
crispy is offline
The following users liked this post:
cvx_20 (02-20-2016)
Old 02-20-2016, 07:46 PM
  #18
V8 Miata Participant

Join Date: Feb 2010
Location: Sarasota, FL
Posts: 257
Recieved 6 Likes on 5 Posts
Default

I like it!!!

Mike
cvx_20 is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-22-2016, 01:35 AM
  #19
V8 Miata Fan

dietcoke's Avatar

Join Date: Nov 2015
Location: Richmond Hill, GA
Posts: 35
Likes: 0
Recieved 1 Like on 1 Post
Default

That's a corvette beltline damper without a/c right? Whats the PN on it. I need a skinny damper without the a/c ring.
dietcoke is offline
Old 02-22-2016, 07:27 AM
  #20
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

Originally Posted by dietcoke View Post
That's a corvette beltline damper without a/c right? Whats the PN on it. I need a skinny damper without the a/c ring.
Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-20160222_070129_resized.jpg
crispy is offline
The following users liked this post:
577nitro (02-22-2016)
Old 02-22-2016, 07:48 AM
  #21
V8 Miata Follower

Join Date: Apr 2015
Location: Colorado
Posts: 123
Recieved 7 Likes on 6 Posts
Default

Nice informative information...thanks!
577nitro is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-22-2016, 08:59 AM
  #22
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

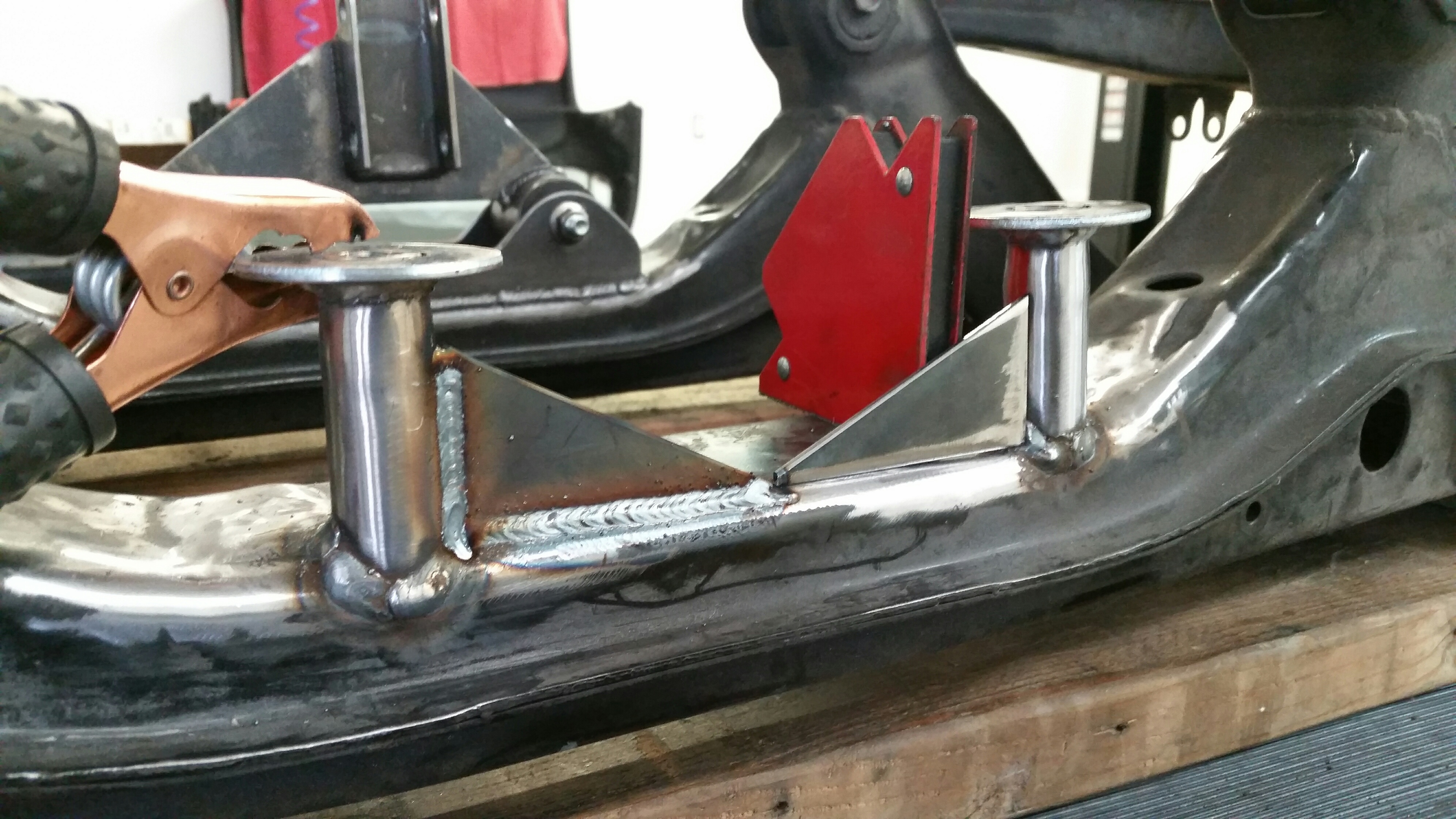

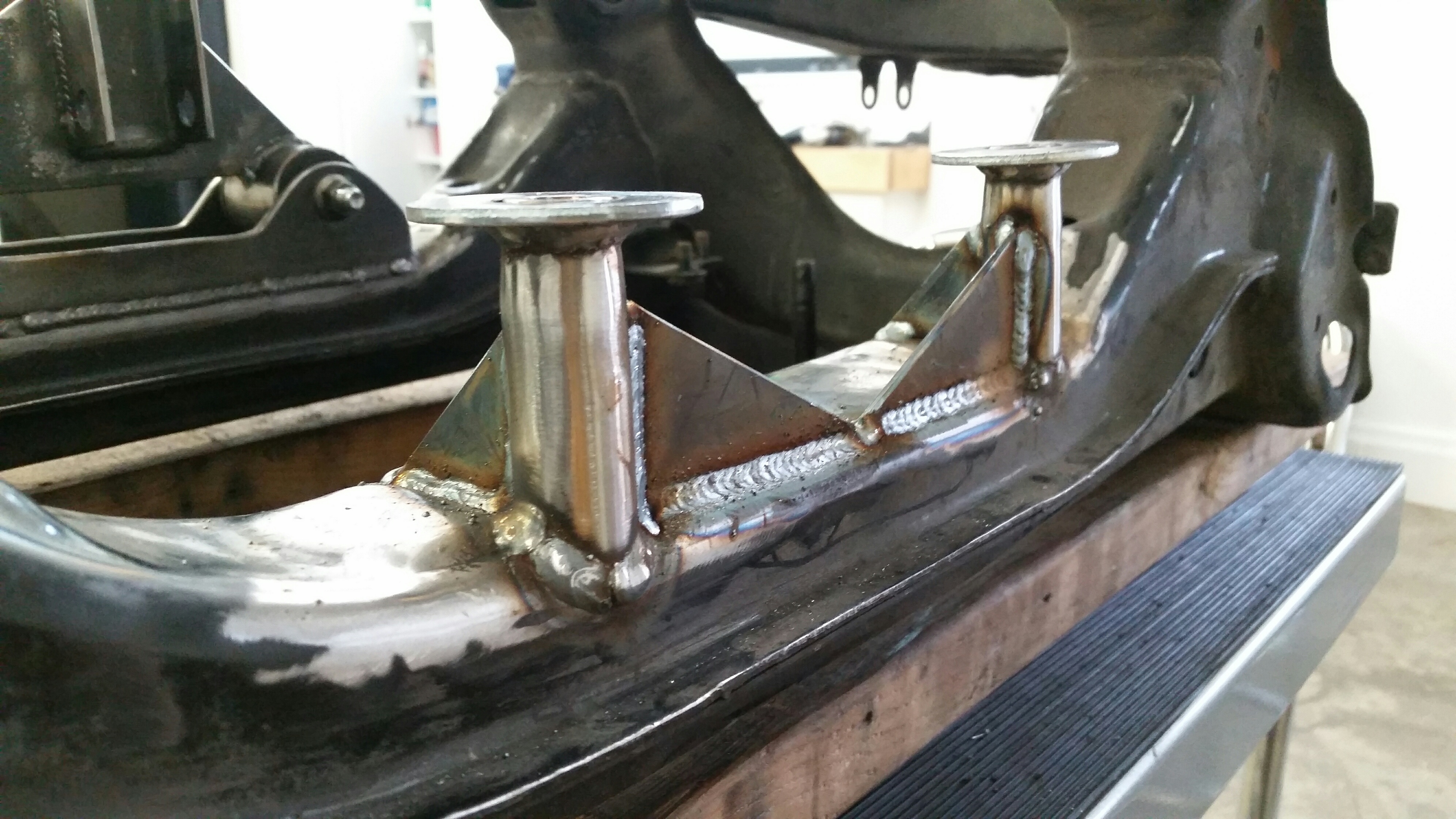

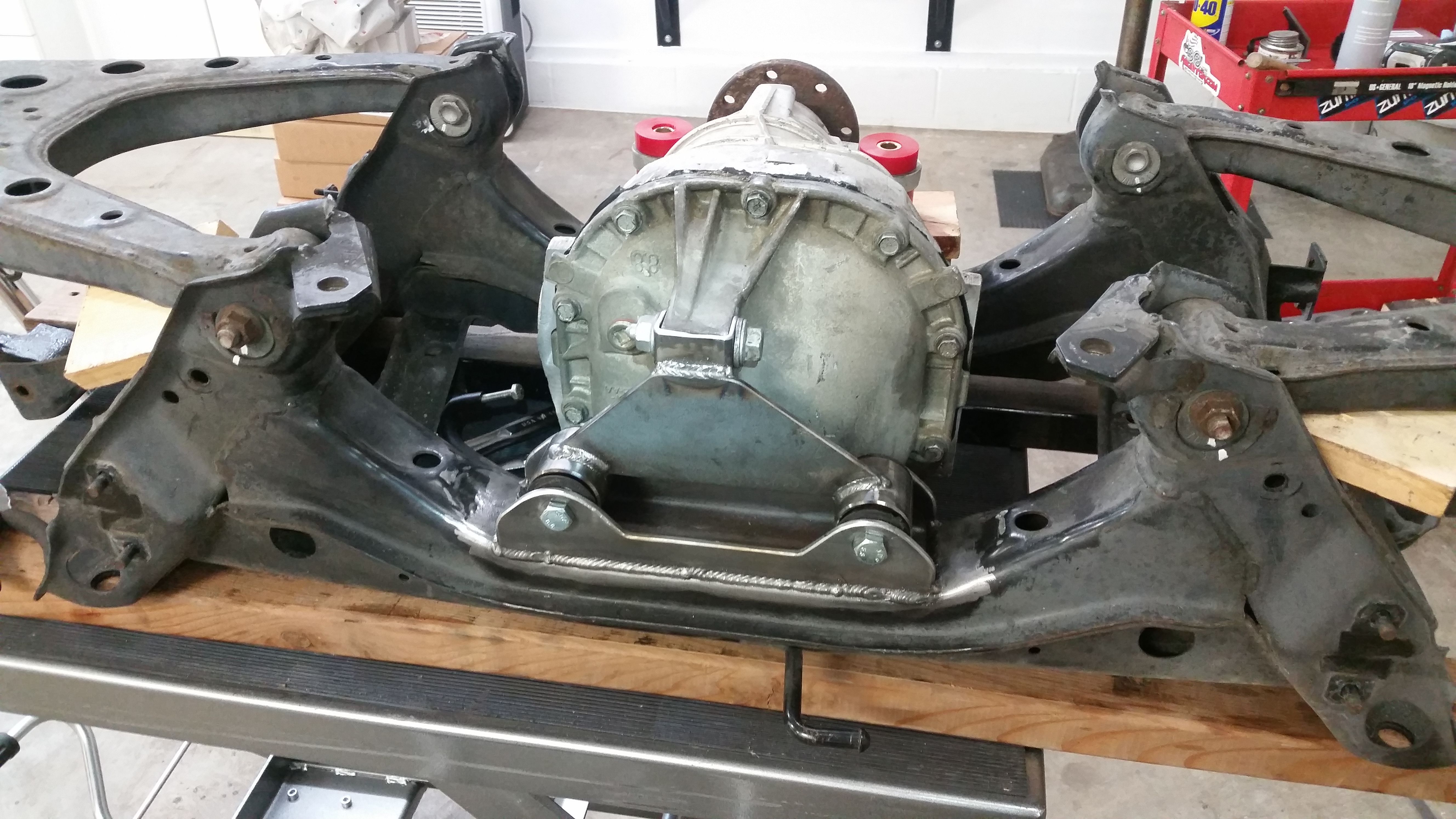

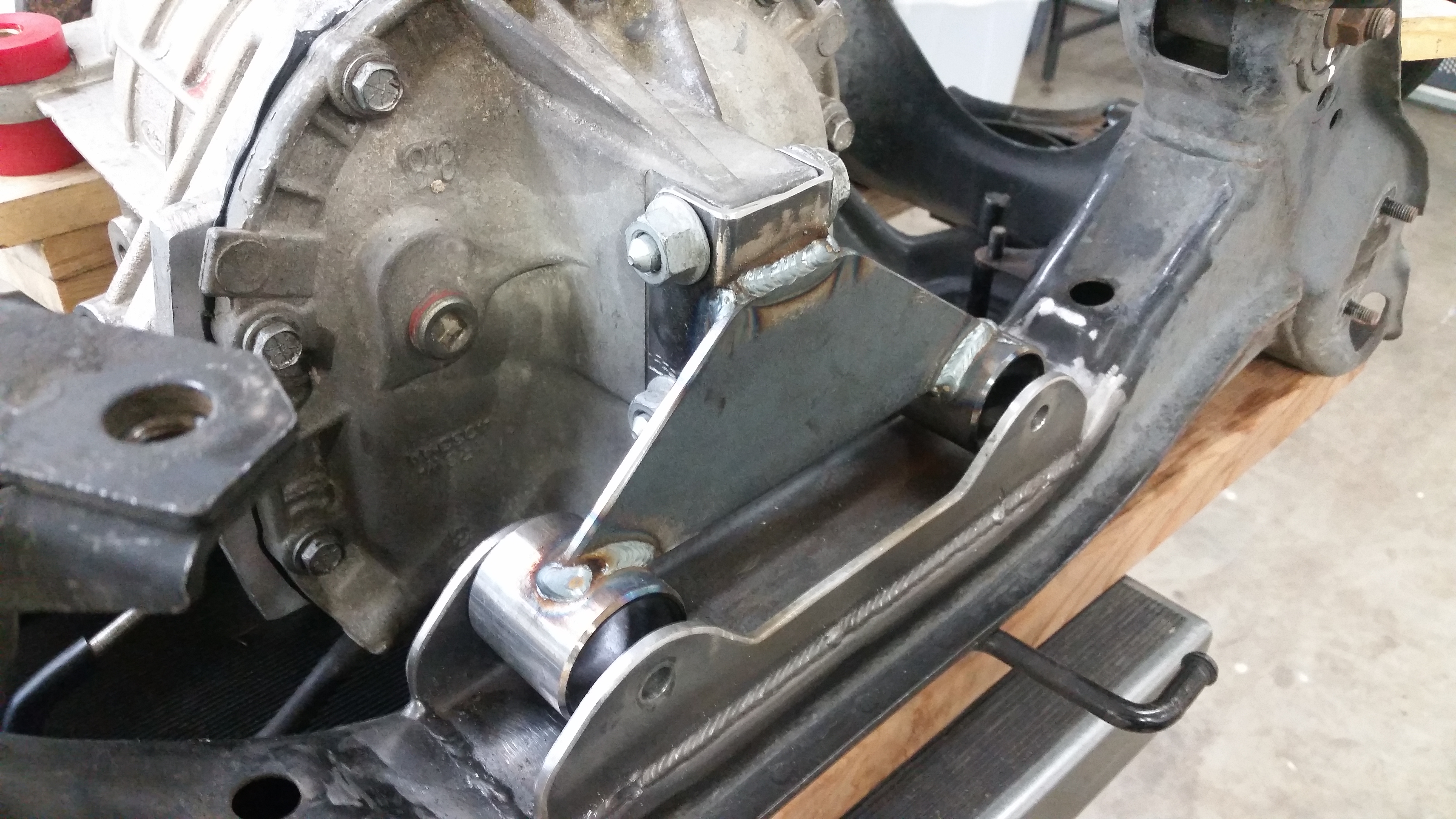

Completed the front portion of the diff mount yesterday:



Attached Thumbnails Crispy's Project Overkill: Turbo 5.3-20160221_124008_resized.jpg   Crispy's Project Overkill: Turbo 5.3-20160221_133050_resized.jpg
crispy is offline
Old 02-26-2016, 08:52 PM
  #23
V8 Miata Follower

Join Date: Jun 2013
Location: Central FL
Posts: 154
Recieved 8 Likes on 7 Posts
Default

Nice
mazdaspeedmiata is offline
The following users liked this post:
crispy (02-29-2016)
Old 02-29-2016, 01:59 PM
  #24
V8 Miata Protégé

stng_96's Avatar

Join Date: Feb 2015
Location: Marion Illinois
Posts: 523
Recieved 73 Likes on 53 Posts
Default

Nice welds you have there
stng_96 is offline
Old 02-29-2016, 03:22 PM
  #25
V8 Miata Habitué
Thread Starter

crispy's Avatar

Join Date: Feb 2015
Location: Minneapolis
Posts: 175
Recieved 25 Likes on 22 Posts
Default

Thanks!
crispy is offline
