OK I decided to go with a new T56 Magnum for my 2000 NB LS build, so I called American Powertrain and ordered the trans with an install kit. The trans came with a shifter and so I decided to try and make it work. So here what I did:

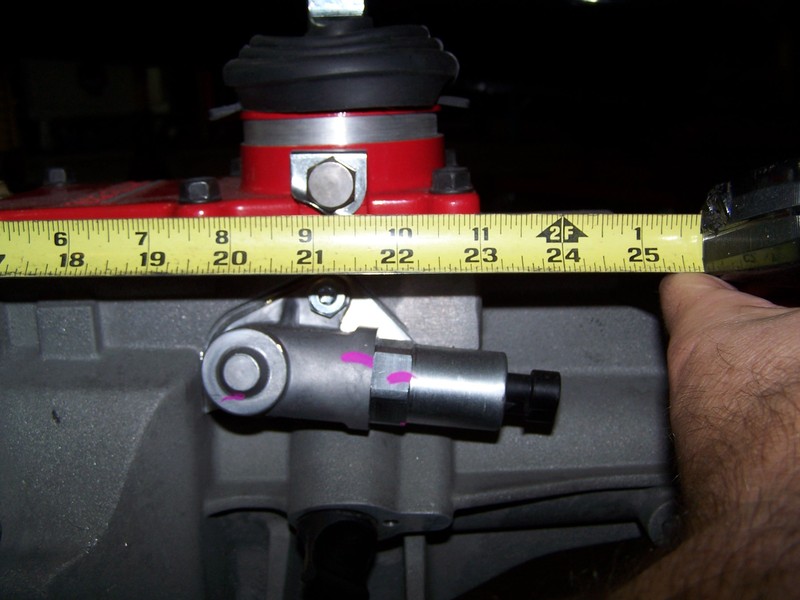

First a few measurements, to confirm what I had been told, the shifter is located 2 ¾ inches forward of the Miata shifter.



Next I installed the trans without the shifter to check how much room I had to work with.





I decided that I would need to do two thing, first I needed to build an offset shifter to move the shift leaver back. Also I would have to do something to lower the height of the shifter

Jerryg

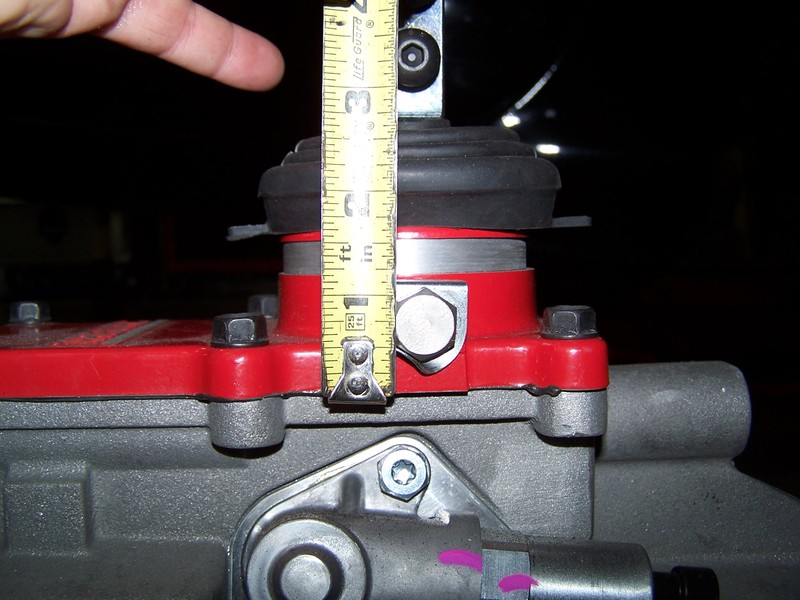

I didn't think the offset shifter would be a problem so I started with lowering the shifter hight. The shifter was 3 inches high and I needed it to be a max of 2 inches.

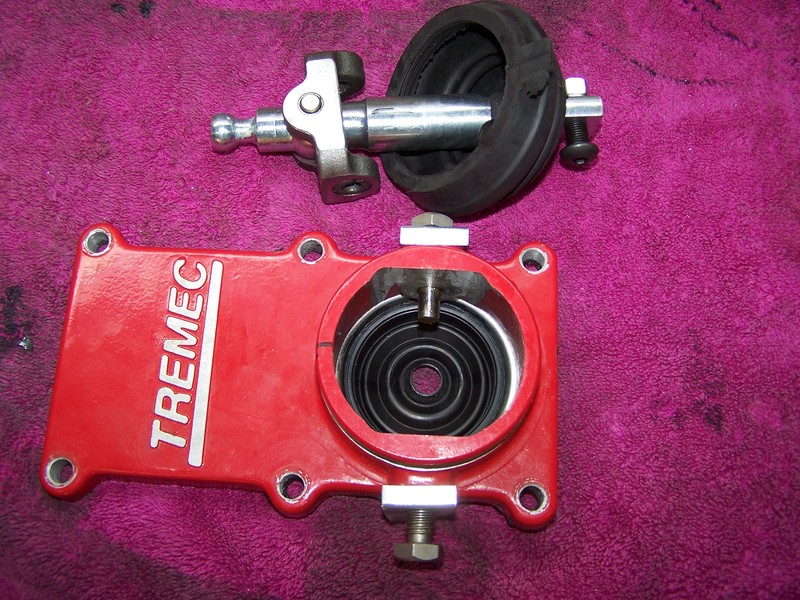

so first I took the shifter apart

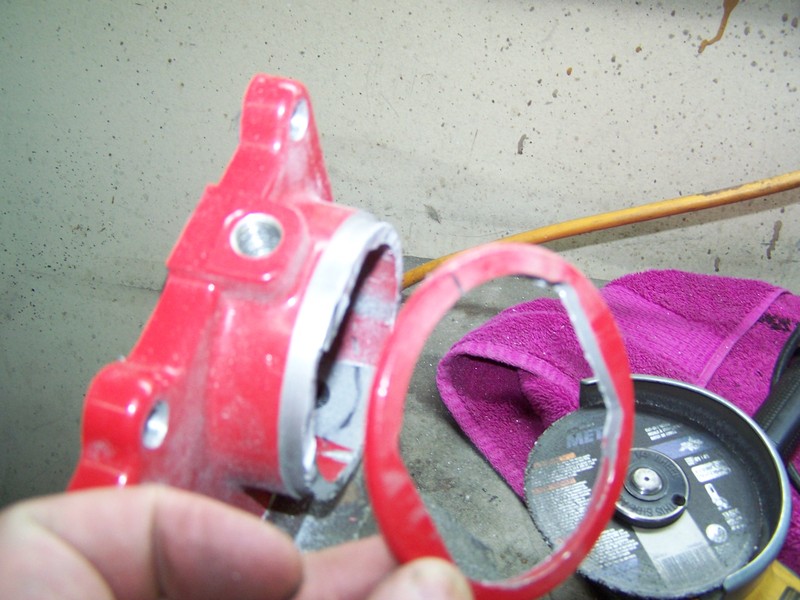

There is a lip on top of the shifer that holds the boot on, I cut this off and saved it to use to hold the shortened boot on.

Jerryg

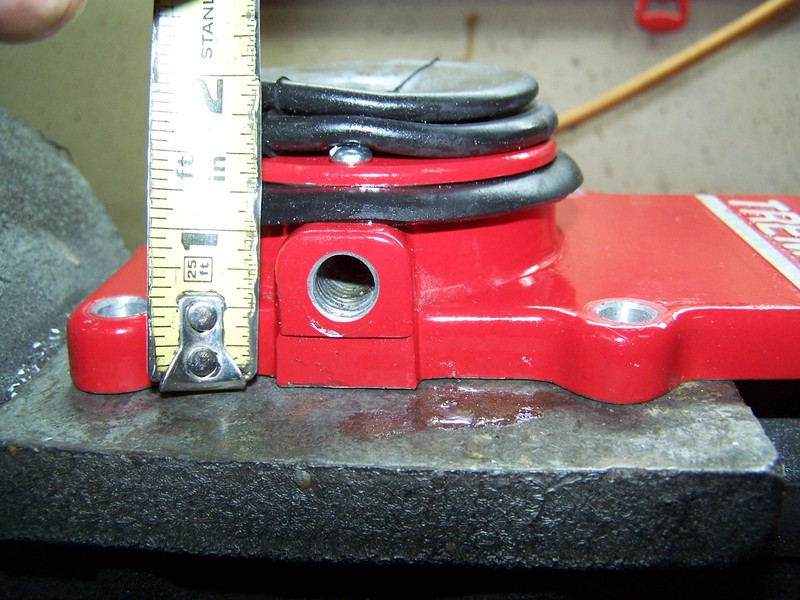

I then cut an inch of the shifter and install the shortened boot using screws.

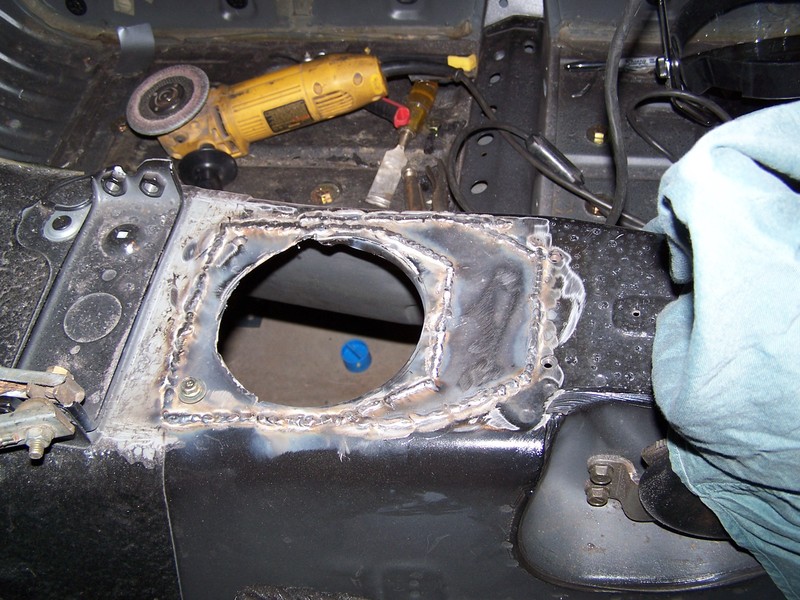

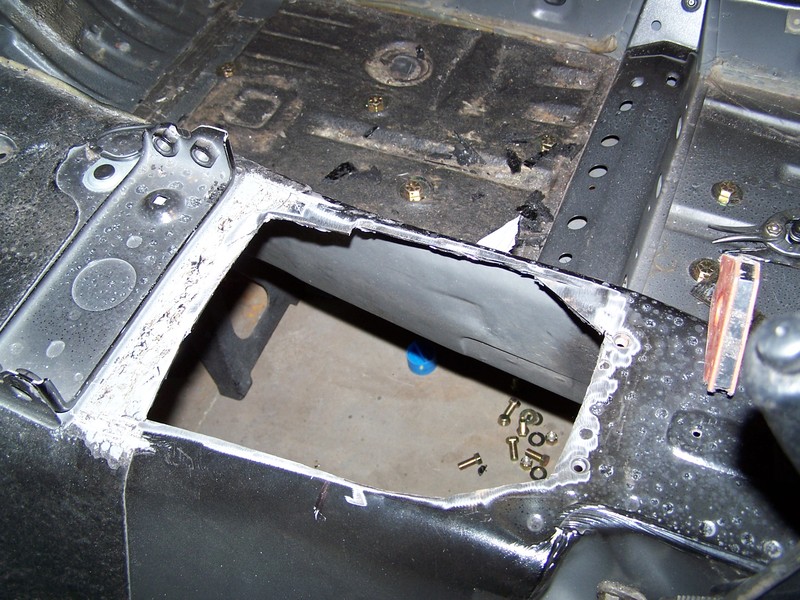

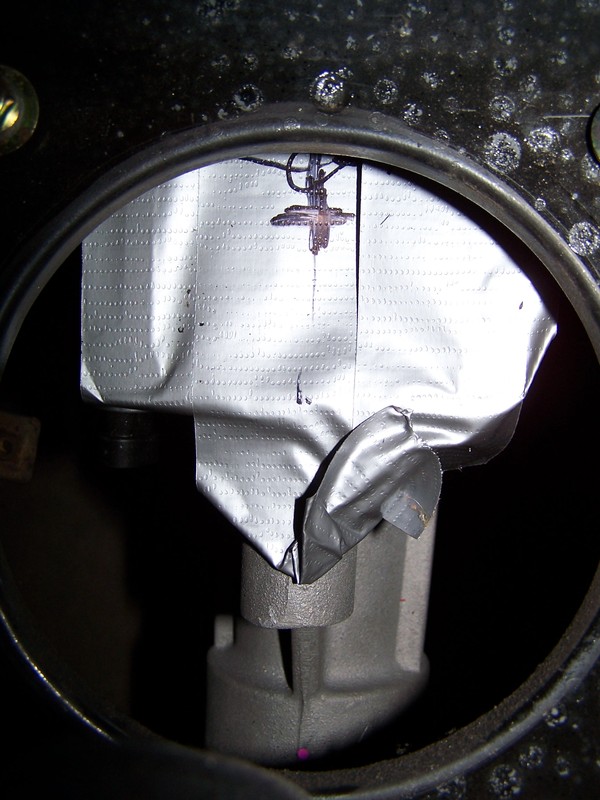

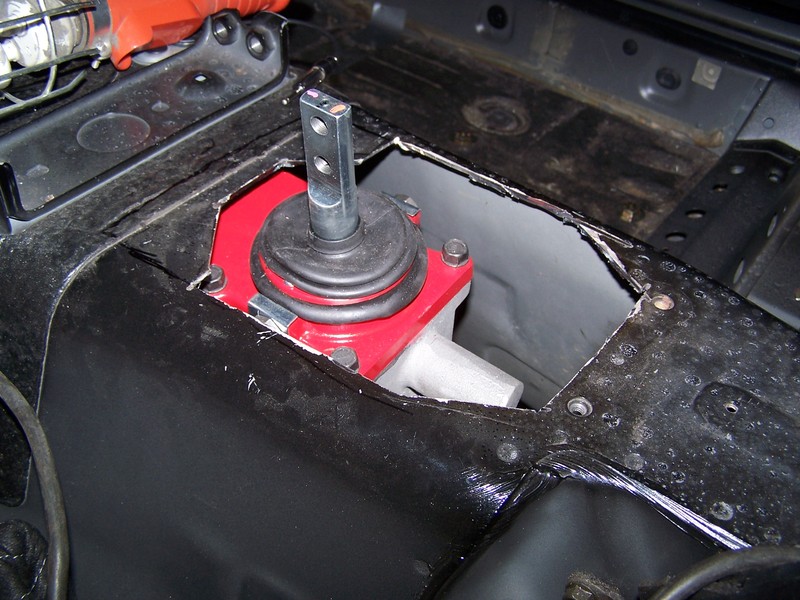

This lowered the shifter height to the 2 inches I needed. now moving on to making an offset shift leaver. I cut the trans tunnel to make room for the new shiter locations them install the trans with the shifter install to see how much i would need to shorten the shifter leaver.





after some trial and error I fold that I needed to cut the leaver just up from where the round part ended. so to make the as easy as possible I decided to make the shifter out of 1 X 1/4 flat bar.

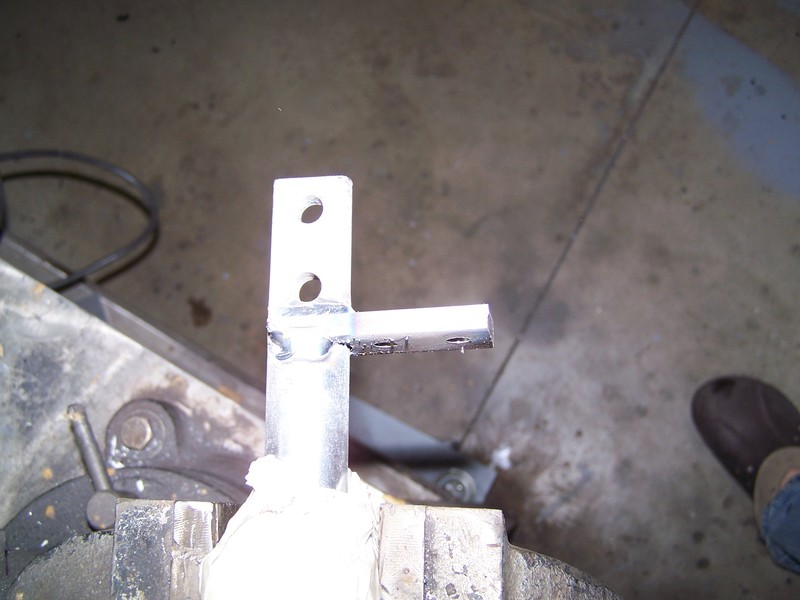

I notched the flat bar to fit over the flat part of the leaver then welded it on

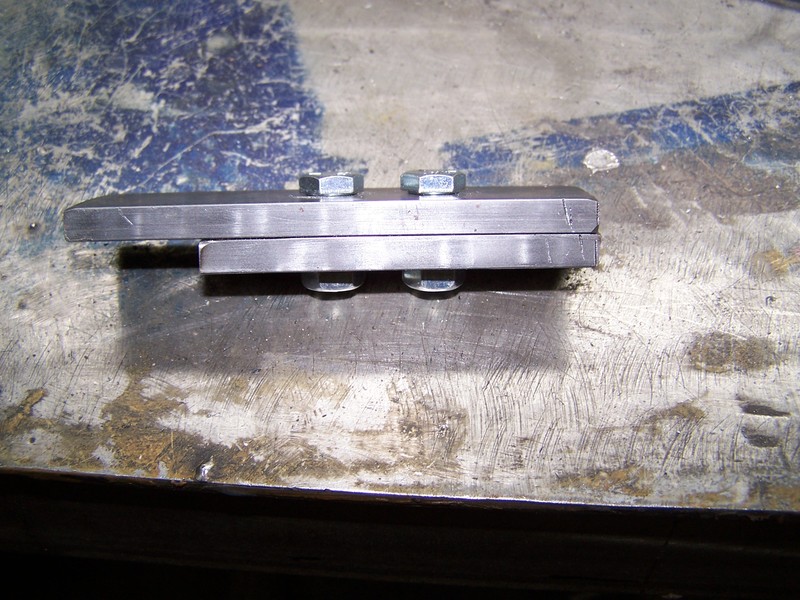

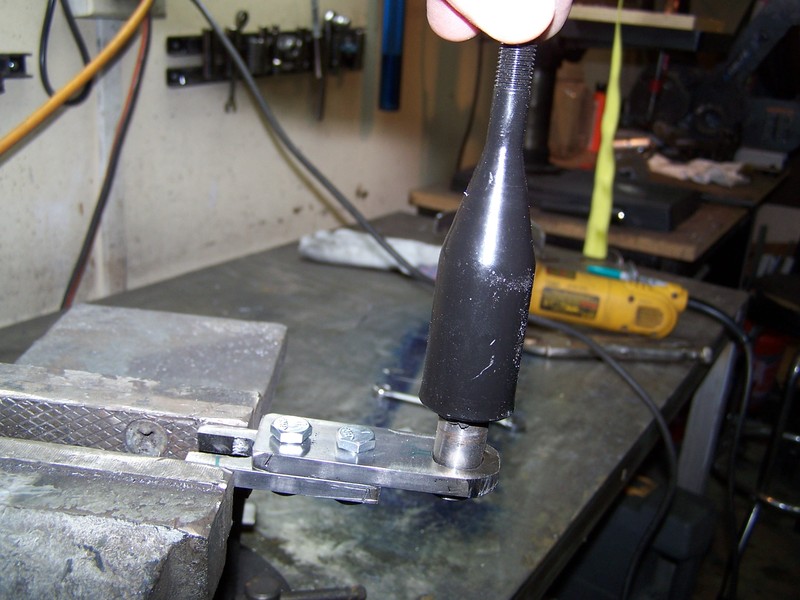

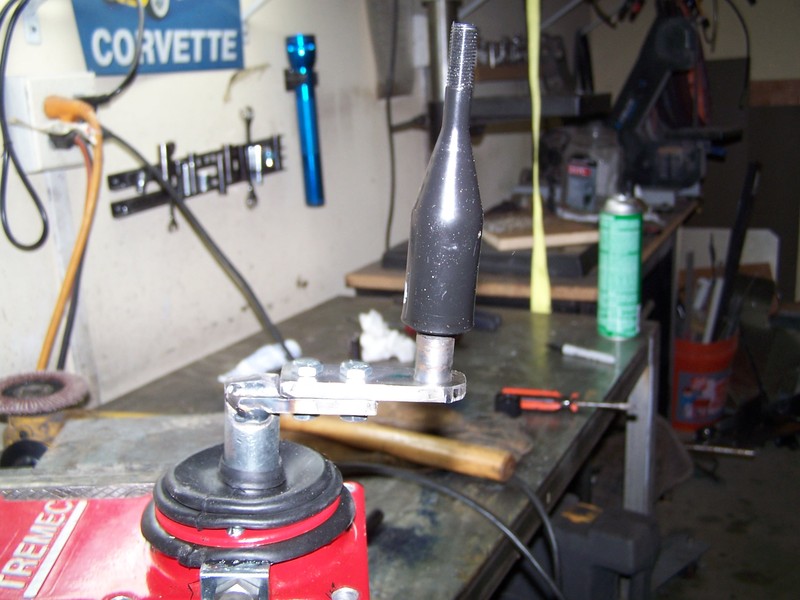

I made the offset in two peached to make it easier to instal the trans. I use the stock shift handle and just drilled a hole in the other end other flatbar for it ( I did have to change this latter)

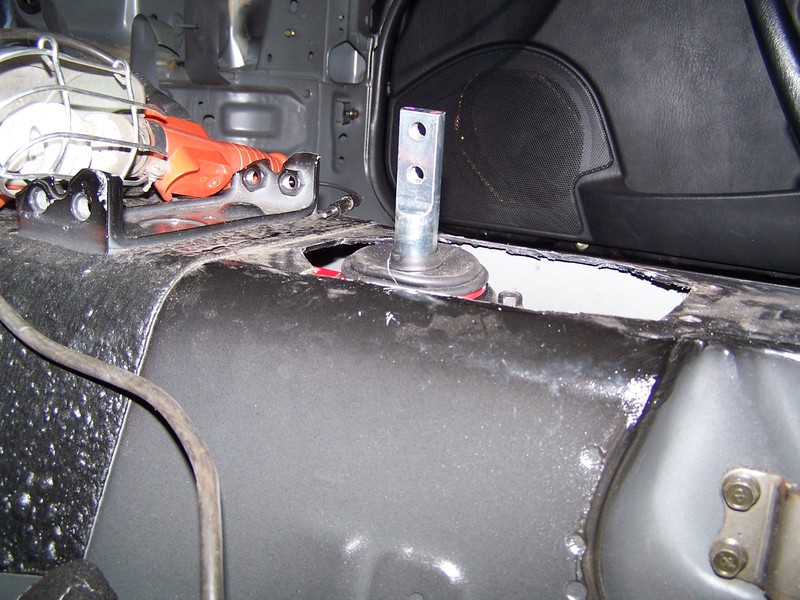

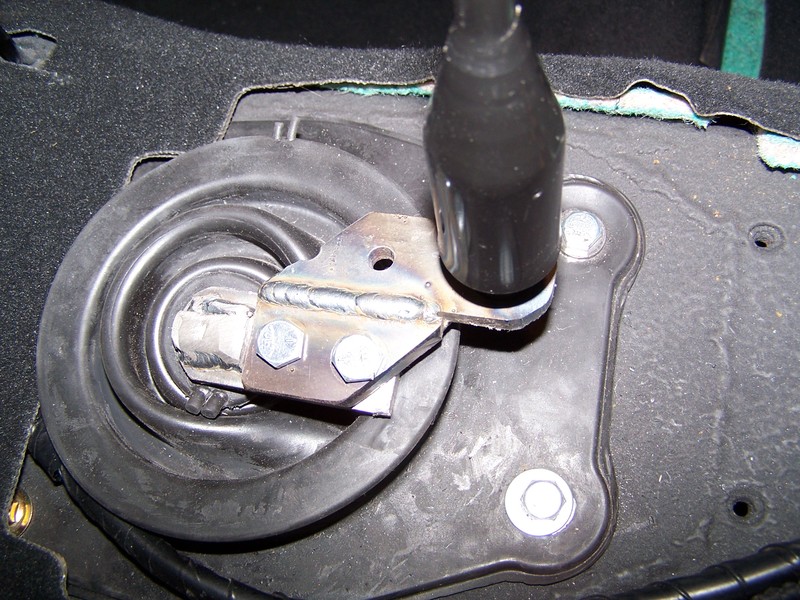

This is what it looks like install on the shiter

Jerryg

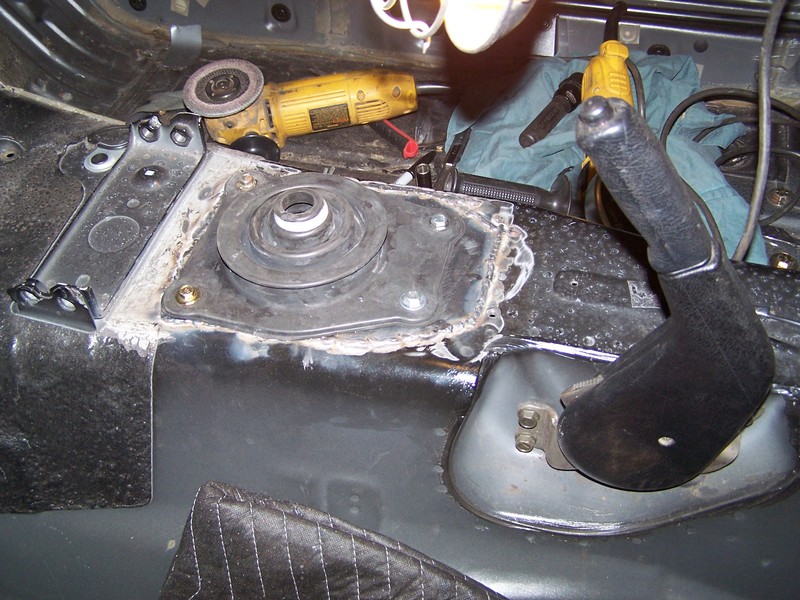

Now I had to relocate the inner shifter boot

Jerryg

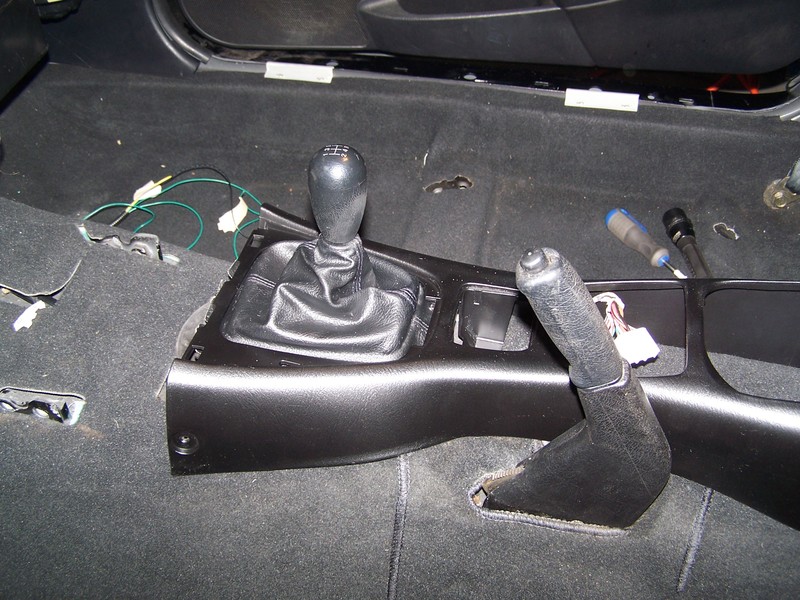

OK I had noticed from the begining that the shifter on the T56 was tilted toward the drivers side a little but I didn't think it was a big deal, well it was. when I put everyting together and install the center console for a test fit the shifter post would hit the consle when you shifted to 1st. so I have to mover it 1 inch over and tilt it back to level.



Well in the end it all worked
