How to connect LS driveshaft to Getrag Differential
#1
V8 Miata Enthusiast
Thread Starter
How to connect LS driveshaft to Getrag Differential
So I just finished replacing my Getrag differential in my LS2 swap car. I bought this car as is and did not have the pleasure of building it. When I removed the driveshaft, I noticed the large rubber circular spacer between the driveshaft and differential with 6 holes in it. I would assume this is there to absorb vibration and shock to the drive system.

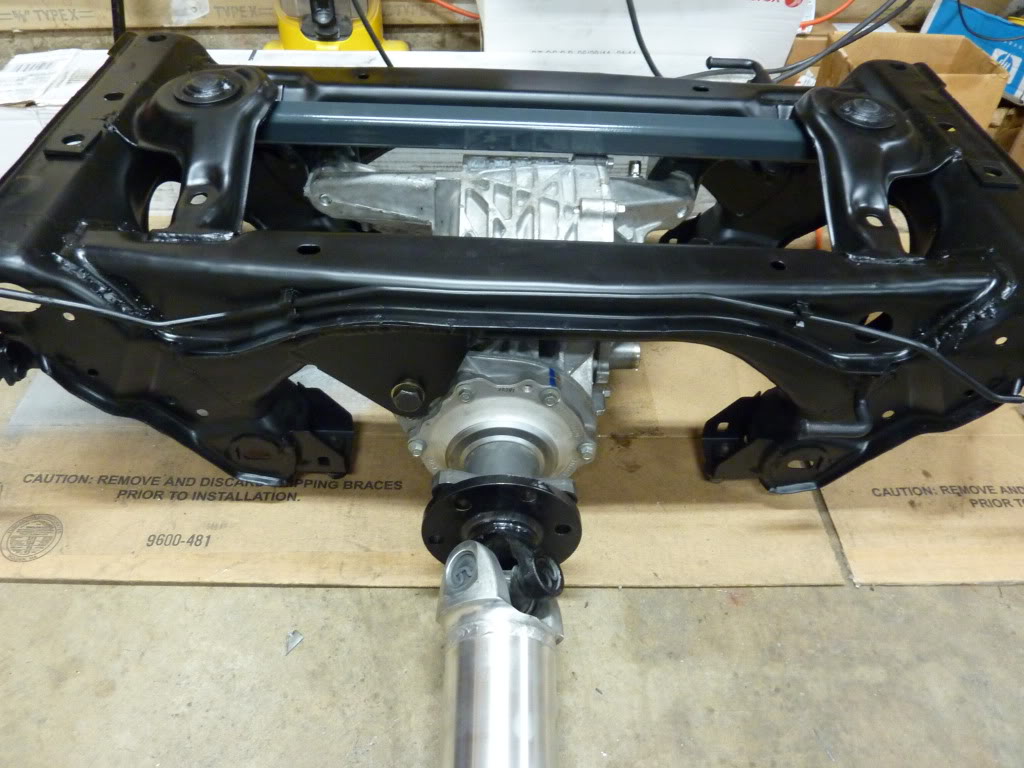

As it is now, the flange on the Getrag is a triangle, and the driveshaft flange is circular (FM stage 3 driveline kit). There are only 3 bolts that go through the driveshaft, through the rubber spacer, and attach to the ears of the triangle Getrag flange. This leaves 3 holes on the rubber spacer unused.
I noticed when I pulled the Getrag from a Cadillac STS, the design of that rubber spacer was used differently. In the Caddy, 3 holes of the black spacer were attached to the Getrag, and the remaining 3 holes were attached to the driveshaft. Meaning the driveshaft was not directly attached to the Getrag, but used the black spacer as the connection. This seemed like it would really take the shock off the differential under hard acceleration. I tried doing this on the Miata, but the circular driveshaft flange would not allow it.
How are others making this connection on their LS cars with the Getrag diff? Any thoughts?
As it is now, the flange on the Getrag is a triangle, and the driveshaft flange is circular (FM stage 3 driveline kit). There are only 3 bolts that go through the driveshaft, through the rubber spacer, and attach to the ears of the triangle Getrag flange. This leaves 3 holes on the rubber spacer unused.
I noticed when I pulled the Getrag from a Cadillac STS, the design of that rubber spacer was used differently. In the Caddy, 3 holes of the black spacer were attached to the Getrag, and the remaining 3 holes were attached to the driveshaft. Meaning the driveshaft was not directly attached to the Getrag, but used the black spacer as the connection. This seemed like it would really take the shock off the differential under hard acceleration. I tried doing this on the Miata, but the circular driveshaft flange would not allow it.
How are others making this connection on their LS cars with the Getrag diff? Any thoughts?
The following users liked this post:
charchri4 (05-27-2015)
#3
V8 Miata Enthusiast
Thread Starter

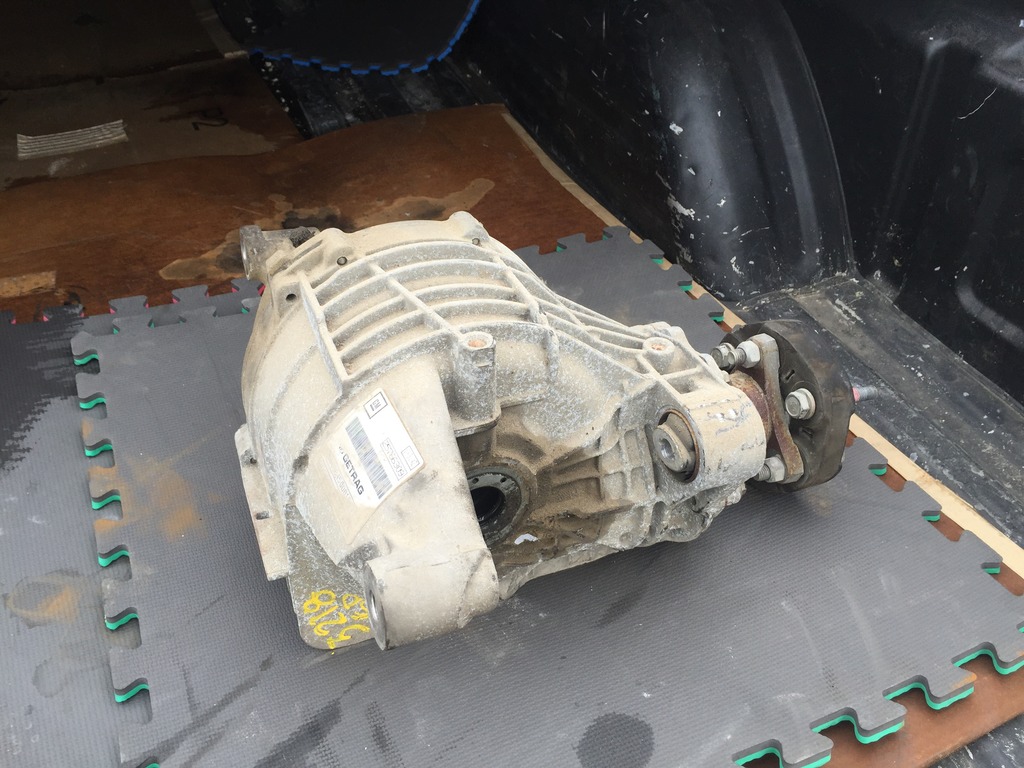

Looks like you ditched the rubber dampener all together. Here is a pic of what I'm talking about
