differental cover bracket


differential cover bracket is hitting the subframe,causing vibrations to come up through the floor,and causing a clunking, every time I let out the clutch,should I notch out the bracket,i am not sure what to do.

Whose mount are you using and what diff? Could you show us a photo or 2 of it?

I am using martins mount,and a 7.5 diff

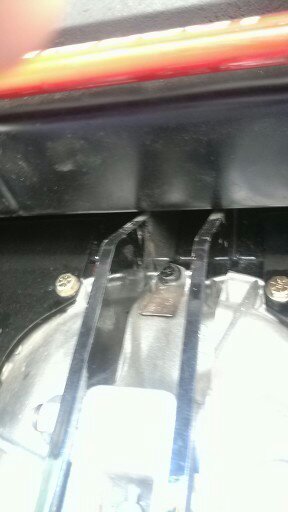

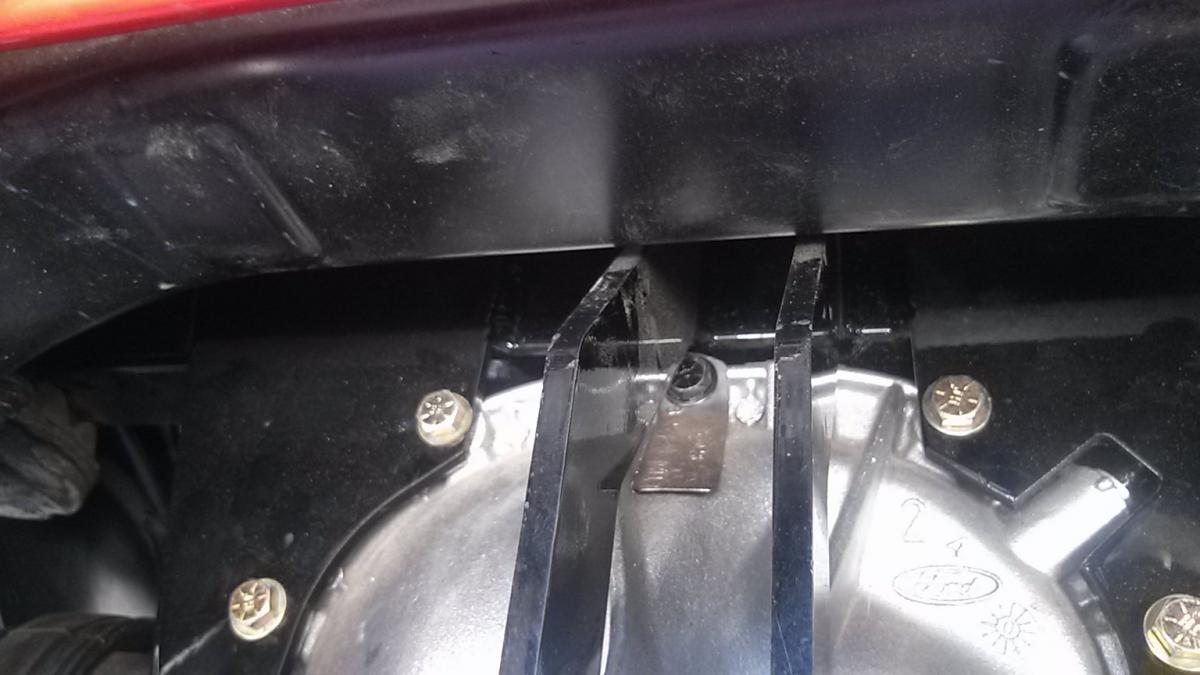

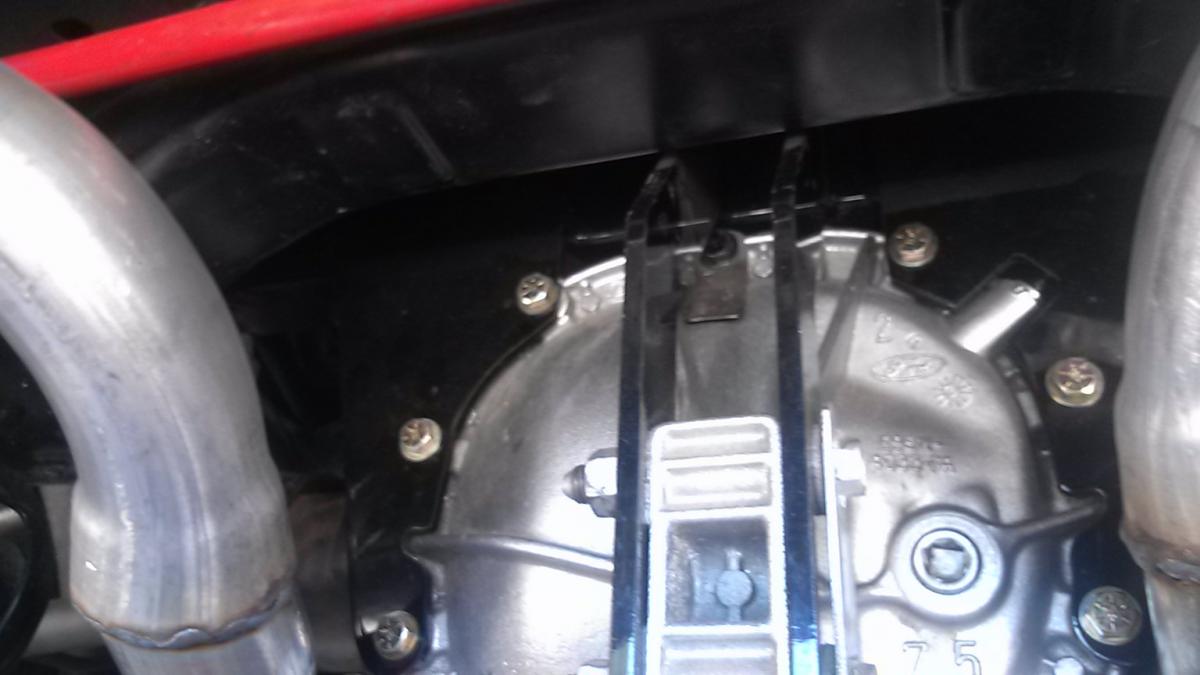

Attachment 563

Attachment 564

Attachment 565

What type of diff bushings are you using? The first car I built did this when I tried to reuse the original bushings. I replaced them and the front two with urethane and the issue went away.

Just to be on the safe side though I bashed the subframe in a little with a BFG in that spot on all the subsequent builds I did.

-Jason

I put new bushings on the bracket and installed new polyurethane on the front,should I notch the bracket,where it is hitting on the frame.

I installed washers on the top of the front bushings,to bring the pinion shaft down,because of a vibration,thats when it started to hit the frame.

Don't notch the frame, just dent it in a little. A combination of two small dents and taking a little material off the diff hanger should solve the problem.

Did you solve the vibration issue?

-Jason

not yet
