1990 LSx Build
Hey guys,
Wanted to use this as a build thread for the Miata that I picked up last weekend. I owned a '97 NA a few years ago and fell in love with the car. It was 100% stock with a 5 speed and the most fun I've ever had driving a car. I currently own a 2005 GTO with an LS2/T56 that is for sale and a '14 Infiniti Q50 for daily driving. I don't plan on tearing into the GTO to build the Miata, I just need some garage space. (Even though an LS2 Miata sounds like fun.) My brother spotted the Miata near where he lives in the Charlotte, NC area. I bought it for $800 and had it shipped down to Florida and began tearing into it. I plan on doing an LS/T56 build and will keep updating this thread with pictures. I've done some builds in the past on some other vehicles, but not anything to this degree. I'm definitely looking forward to this build. This looks like an awesome forum with some good guys on it. I'm amazed at some of your builds. Please be patient with me, I'm still doing a ton of research and will be asking a ton of stupid questions! |
3 Attachment(s)
Sitting up in NC with my brothers Charger:
https://www.v8miata.net/attachment.p...ine=1438022045 Here it is on the hauler coming home: https://www.v8miata.net/attachment.p...ine=1438022045 Parked next to her sister: https://www.v8miata.net/attachment.p...ine=1438022045 |
Looks awful clean to have gotten it for 800, good luck on the project!
|
3 Attachment(s)
Went through the engine bay and labeled all of the wiring that I could find. Hopefully this makes it easier when I'm ready to get it running:
https://www.v8miata.net/attachment.p...ine=1438086695 All stripped down: https://www.v8miata.net/attachment.p...ine=1438086695 Got the motor and tranny pulled out of it last weekend: https://www.v8miata.net/attachment.p...ine=1438086695 And out of the garage: http://i30.photobucket.com/albums/c3...pszze4lkzw.jpg |
Looking good so far. Your Miata project car does look clean and straight in these pics. Guess it had a color change somewhere in its former life. Now, are you sure you don't want to just lift the hood on that donor GTO sitting in the garage? :) I think the tears will stop flowing after you yank some stuff from under that hood!!
|
+1^^ I said the same thing about a Camaro I tried to sell for a couple of months....
Anyway welcome to the forum!! Thanks for doing this thread I'm excited to follow along with you. A agree that was a heck of a buy at 800 bucks. Was it a running driving car when you bought it? I know it's a bit late but I'm not seeing very many labels on your wires and hoses.... |
Originally Posted by stng_96
(Post 16409)
Looks awful clean to have gotten it for 800, good luck on the project!
Originally Posted by ToySnakePMC
(Post 16455)
Looking good so far. Your Miata project car does look clean and straight in these pics. Guess it had a color change somewhere in its former life. Now, are you sure you don't want to just lift the hood on that donor GTO sitting in the garage? :) I think the tears will stop flowing after you yank some stuff from under that hood!!
I really don't think I could tear into the Goat. I'll just keep it if I can't sell it!
Originally Posted by charchri4
(Post 16476)
+1^^ I said the same thing about a Camaro I tried to sell for a couple of months....
Anyway welcome to the forum!! Thanks for doing this thread I'm excited to follow along with you. A agree that was a heck of a buy at 800 bucks. Was it a running driving car when you bought it? I know it's a bit late but I'm not seeing very many labels on your wires and hoses.... There's a lot more labels than the picture shows. I've also added a few more to the hoses. |
8/1 Update:
I ordered the V8R kit last week, so now I need to find some time under the hood to get the notches cut out of the back of the bay and beat out the tunnel. I've started stripping the interior this week. The seats and top are out, along with the center console. I hope to get the dash out this weekend and post a few more photos. I've mainly just been doing research on every piece of the car on the forums. It's a little bit overwhelming at times. So much to read! |
3 Attachment(s)
8/3 Update:
Worked this weekend on getting the interior stripped out and disconnecting some wiring. Pulled the top and seats out: https://www.v8miata.net/attachment.p...ine=1438608328 And the dash: https://www.v8miata.net/attachment.p...ine=1438608328 Unfortunately, once the dash was out, I realized that the previous owner had hacked an aftermarket alarm into the harness behind the dash. I'm not sure how all of you guys feel about something like this, but it's definitely not something I was hoping to see. The aftermarket alarm rats nest: https://www.v8miata.net/attachment.p...ine=1438608328 I eventually got all of it cut out (I think). I have some research to do now on how to remove this harness from behind the dash. It looks like it continues through the firewall on both the passenger and the drivers side. So I'm a little bit confused at the moment on how I'm going to get it all out to do all of the welding and cutting around the tunnel. |
yes the harness is one entire piece. think of it as a U shape. It goes out the firewall on both sides all the way to the front lights. It's honestly not very hard to remove once you've got the dash and engine out.
|
5 Attachment(s)
8/10 Update:
Got into the body/frame modifications over the weekend. Here is the engine bay stripped out prior to the cutting of the back tabs: https://www.v8miata.net/attachment.p...ine=1439229848 Marked and ready to cut: https://www.v8miata.net/attachment.p...ine=1439229848 All cut out: https://www.v8miata.net/attachment.p...ine=1439229848 Went and bought the famous Harbor Freight spot weld drill bit: Spot Weld Cutter - 3/8" Spot Weld Cutter Drill Bit This made getting the transmission tunnel gusset plates much easier. https://www.v8miata.net/attachment.p...ine=1439229848 https://www.v8miata.net/attachment.p...ine=1439229848 Still need to make the cuts in the tunnel and bang it out with a hammer. I still have the front subframe in the car so I can move it around the garage. I'm still waiting on the V8R subframe to come in, so I don't want to drop the subframe out of it yet. |
Not too familiar with the na chassis but on the nb the passenger side trans tunnel needed 90% of the beating. As well as a dedicated dent for the reverse light connector on the t56, which ends up being close to that access hole below the tunnel gussett.
This was a tough time in the build for me, blindly beating on the car hoping if I was doing it right! I came within a 1/4" of going too far on the driver side, luckily I read Jims blog the night before since I was going off FM's instructions. Good luck and looking good so far! |
+1 on the T56 speedometer mod on the Miata transmission tunnel. Back when doing my build it was an area that I wished had been previously mentioned.
|
Could someone post some measurements and/or a pic of where the tunnel needs to be modded for the sensor? I'm going to have to do my tunnel stuff before I get a transmission
|
3 Attachment(s)
Must be and NB thing because mine didn't need to be modded at all. When I built it there as talk of needing to make more clearance for the sensors but I never could figure out what the issue was. I think Shannon used Vette sensors or something like that in his NA to solve the problem but I used the stock 02 Camaro sensor and didn't touch the tunnel there. The sensors are all in the trans in these photos so maybe someone and tell what they needed to mod on theirs.
https://www.v8miata.net/attachment.p...ine=1439428306 https://www.v8miata.net/attachment.p...ine=1439428306 https://www.v8miata.net/attachment.p...ine=1439428306 18000 miles and no issues with it. |
Search for the Ford back up switch to replace the GM one. The Ford one has a plug at 90 degree angle so you avoid that tight, RH side clearance issue with the GM one that faces the trans tunnel wall... It's plug n play as well. I have the part no (Ford Motocraft box) shown somewhere in the first 3-4 pages probably in my build thread.
|
2 Attachment(s)
8/17 Update: Made the cuts at the tunnel.
Marked: https://www.v8miata.net/attachment.p...ine=1439812458 And cut: https://www.v8miata.net/attachment.p...ine=1439812458 |
4 Attachment(s)
8/17 Update Continued:

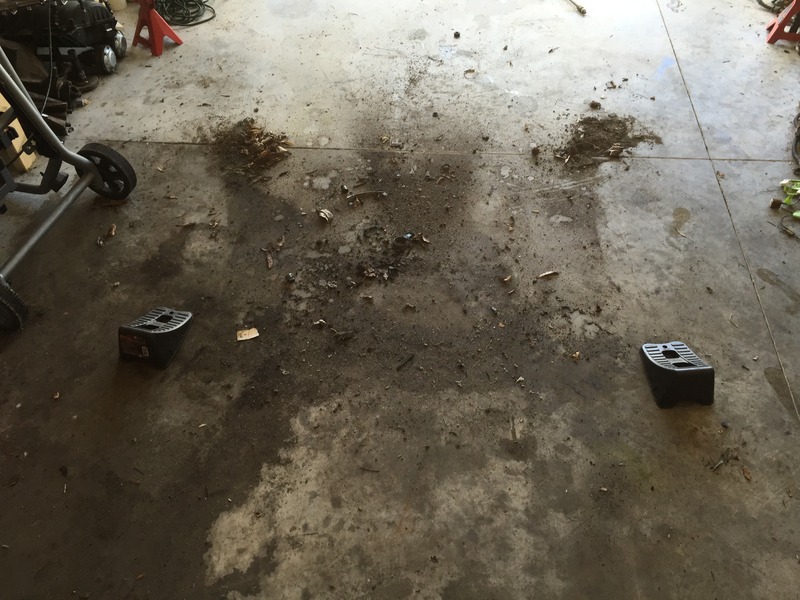

I pulled the Miata out of the garage for the first time since I got it. This thing must have been living under a tree for a while as there was more dirt/bugs/whatever everywhere in the car. Now that it's stripped down, I pressure washed the entire car inside and out. I also got underneath it, so it should be a little cleaner to work on for the remainder. A few before pictures: https://www.v8miata.net/attachment.p...ine=1439812485 https://www.v8miata.net/attachment.p...ine=1439812485 And after it was all cleaned: https://www.v8miata.net/attachment.p...ine=1439812606 http://i30.photobucket.com/albums/c3...psp1w00f9d.jpg I know it doesn't look like much, but it made all the difference. It also gave me a chance to clean up the garage from whatever had fallen out of it. Attachment 6281 |
1 Attachment(s)
8/17 Update Continued:
Dropped the front end out of the car. https://www.v8miata.net/attachment.p...ine=1439813171 I've ordered the V8R kit, V-MAXX Coil Overs, and Energy Suspension Bushings. So I'm hoping to get the front end put back together relatively soon. |
Aaah, your pics bring back such good memories! You're getting into the fun stuff now, cutting, cleaning, and ordering the go-fast parts! Having a clean chassis and work space will definitely get rid of some possible frustrations as well. Keep posting up, it's gonna look great.
|
2 Attachment(s)
Got the V8R kit in the mail today. This thing is beautiful.
https://www.v8miata.net/attachment.p...ine=1441206386 https://www.v8miata.net/attachment.p...ine=1441206386 |
4 Attachment(s)
Tore the front suspension down and realized this thing is in worse shape than I thought.
https://www.v8miata.net/attachment.p...ine=1441206710 https://www.v8miata.net/attachment.p...ine=1441206710 Every bushing, tie rod, ball joint, etc. are shot. So I ordered new upper control arms and ball joints for the lower control arms. I'm putting poly bushings in it, so it wasn't that big of a deal. Since I'm getting new upper control arms anyway, I figured I would paint up the lowers. https://www.v8miata.net/attachment.p...ine=1441206710 https://www.v8miata.net/attachment.p...ine=1441206710 |
3 Attachment(s)
9/11 Update:
I need some help on this. My upper control arms look funny now that they are installed. There is a gap between the bushing and the V8R Engine Mount. The sleeve for the bushing is touching the V8R mount directly. Do any of you guys have pictures of what yours looked like at this point? I am unable to tighten the long Upper Control Arm Bolt any further due to the sleeve. Here are some pictures of what I'm talking about: The gap here looks too big and has the sleeve touching the V8R kit directly https://www.v8miata.net/attachment.p...ine=1441980926 And looks the same on the front of the arm. This side will not allow the large washer to sit flush against the bushing: https://www.v8miata.net/attachment.p...ine=1441980926 Here is what it looked like before I sent took it apart: https://www.v8miata.net/attachment.p...ine=1441980926 |
4 Attachment(s)
9/21/15 Update:
I found a 5.3L LM7 motor on Craigslist early last week and finally got some time to look at it. It was in a 1999 Silverado, so I took the truck for a test drive. It ran great with no issues. I went and pulled it out this weekend and got it on the stand. In the truck: https://www.v8miata.net/attachment.p...ine=1442848129 Pulling it Out: https://www.v8miata.net/attachment.p...ine=1442848129 Just got her home: https://www.v8miata.net/attachment.p...ine=1442848129 On the Stand: https://www.v8miata.net/attachment.p...ine=1442848129 |
10/15/15 Update:
Ordered the heads/cam combo today. PRC Stage 2.5 Heads Texas Speed 228R 7.375 Pushrods LS6 Oil Pump Cloyes LS1/LS6 Single Roller Timing Chain Set And all the gaskets/bolts, etc. Still need to decide on an oil pan. |
