Supercharged 331 SBF
14 Attachment(s)

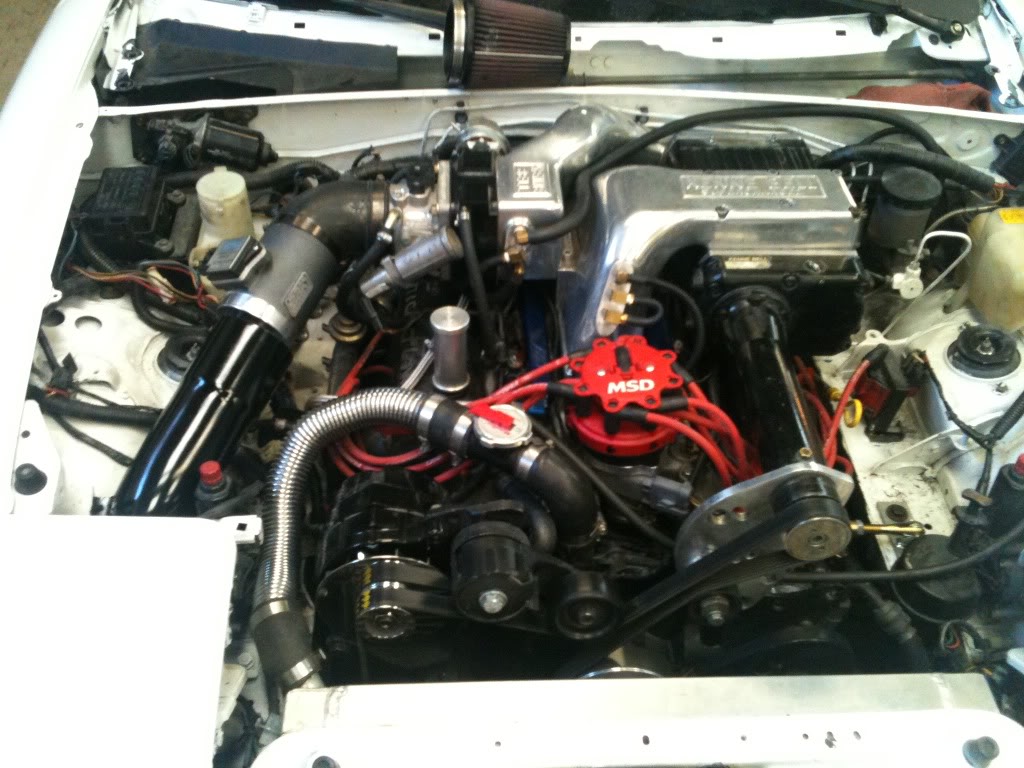

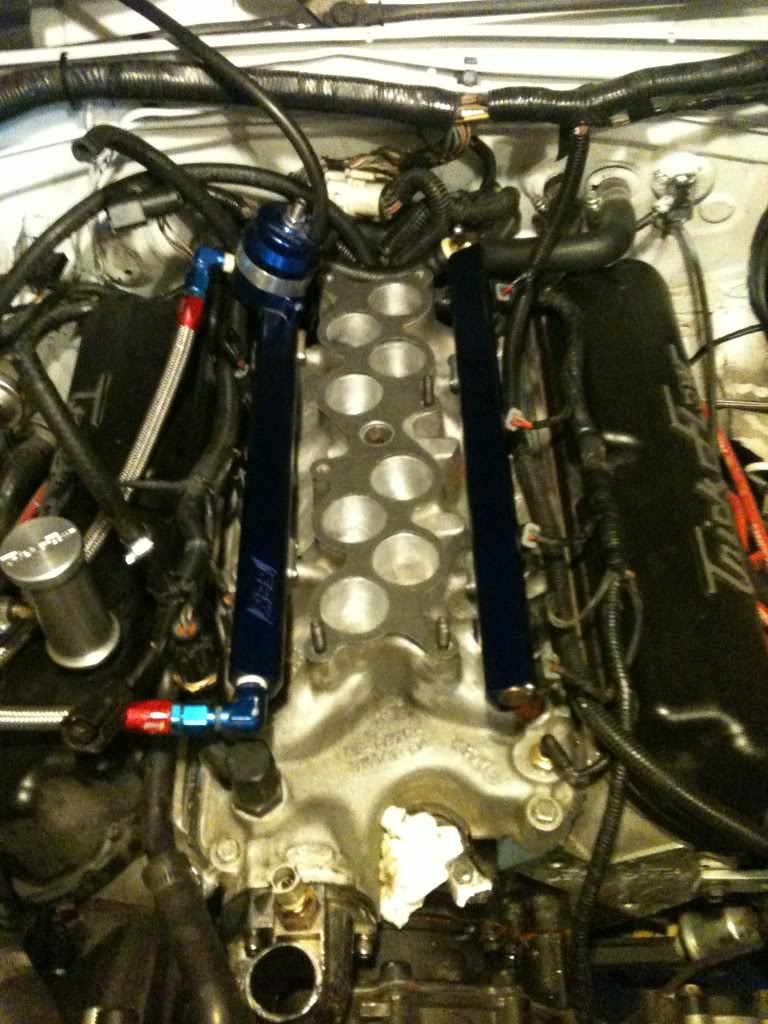

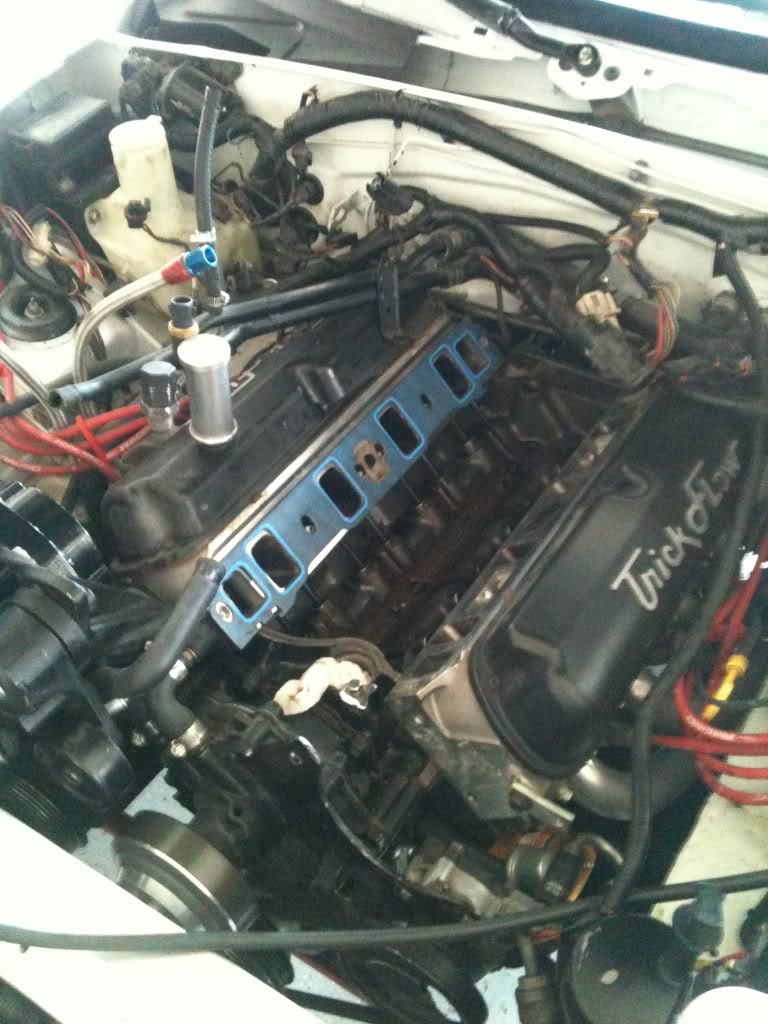

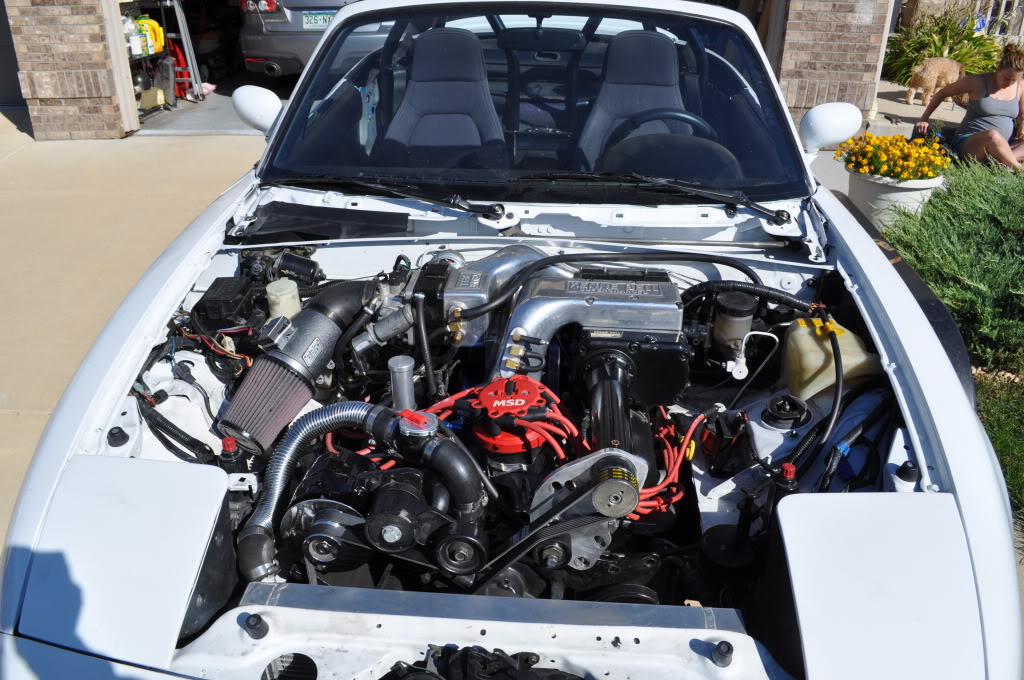

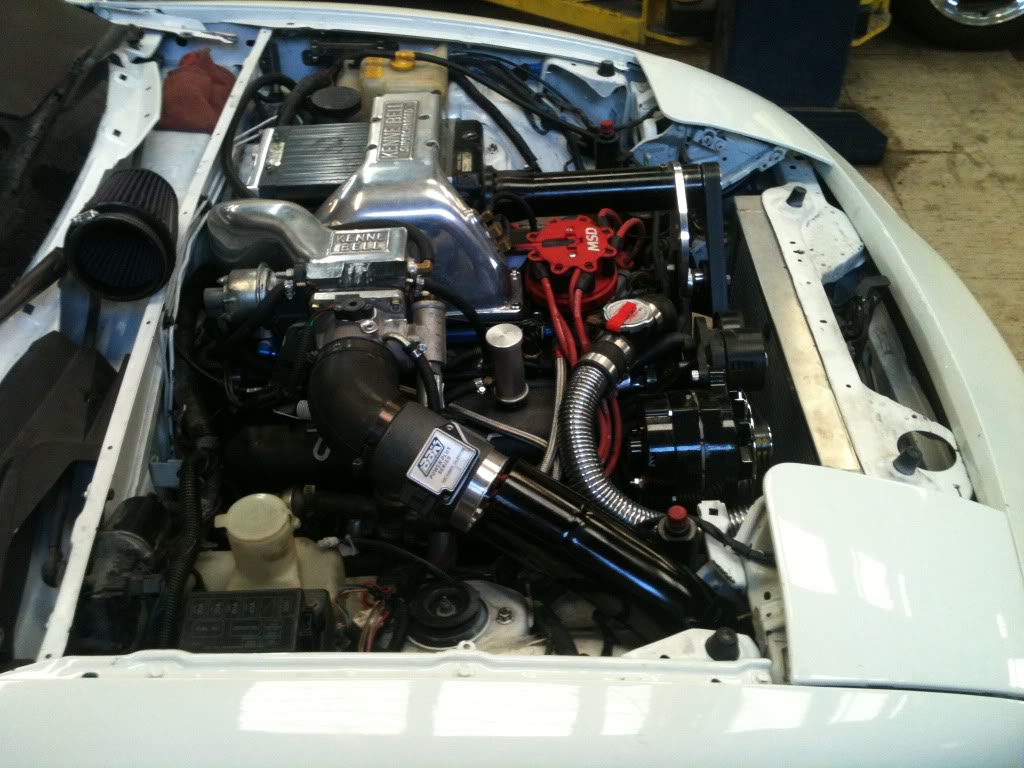

I had always had plans to one day add a supercharger to my car but an awesome Craigslist find move it to the top of the list. I found a Kenne Bell 1.5 for the 5.0 on Craigslist and was able to talk the guy down to a really good price. I also added a FM Big Fuel pump rated at 300lph and did a cold air intake. The hood was modified to clearance the blower and is awaiting paint.
I am scheduled to tune on Wednesday and would like to see 390 HP's so wish me luck. Here are some pics. Attachment 8022 Attachment 8023 Attachment 8024 https://www.v8miata.net/attachment.p...ine=1316324052 http://i278.photobucket.com/albums/k...a/DSC_0807.jpg Attachment 8025 Attachment 8026 Attachment 8027 Attachment 8028 https://www.v8miata.net/attachment.p...ine=1316324052 https://www.v8miata.net/attachment.p...ine=1316324052 https://www.v8miata.net/attachment.p...ine=1316324052 https://www.v8miata.net/attachment.p...ine=1316324052 https://www.v8miata.net/attachment.p...ine=1316324052 https://www.v8miata.net/attachment.p...ine=1316324052 |
Take some video when you go to the dyno... :)
|
Good luck! The intake air temps. will hold it back.
|
Originally Posted by tbone heller
(Post 2627)
Good luck! The intake air temps. will hold it back.
Back form the Dyno and this thing is one step closer to being road ready. They tries to email me the files but didn't go through and their printer was down. Am going to stop by tomorrow and see if I can grab the files to post up. Here are the numbers, peak HP was 351 and 400 ft-lbs off 5 lbs of boost. The SC has an 8 psi pulley on it but the elevation here in Denver causes it to drop. The numbers are a little deceiving because in the middle of the power band I picked up 75 ponies and 95 ft-lbs over my previous tunes. It is almost to much torque but pulls like a freight train ( I said almost to much). The car is definitely going to be a hand full but just need some seat time to dial it in. Here is a video off my phone . |
4 Attachment(s)
Here are some pics of hood all painted up and the graphs from the dyno. It shows two runs, before and after the supercharger.
https://www.v8miata.net/attachment.p...ine=1316754267 https://www.v8miata.net/attachment.p...ine=1316754267 https://www.v8miata.net/attachment.p...ine=1316754267 https://www.v8miata.net/attachment.p...ine=1316754267 |
Very cool. Good job.
-Jason |
3 Attachment(s)

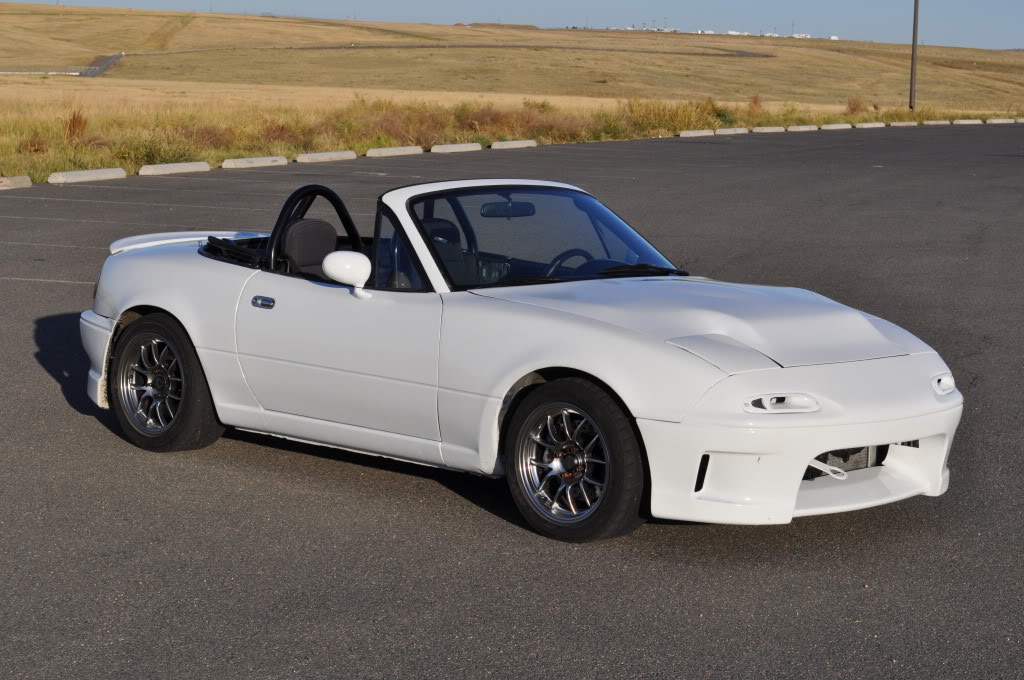

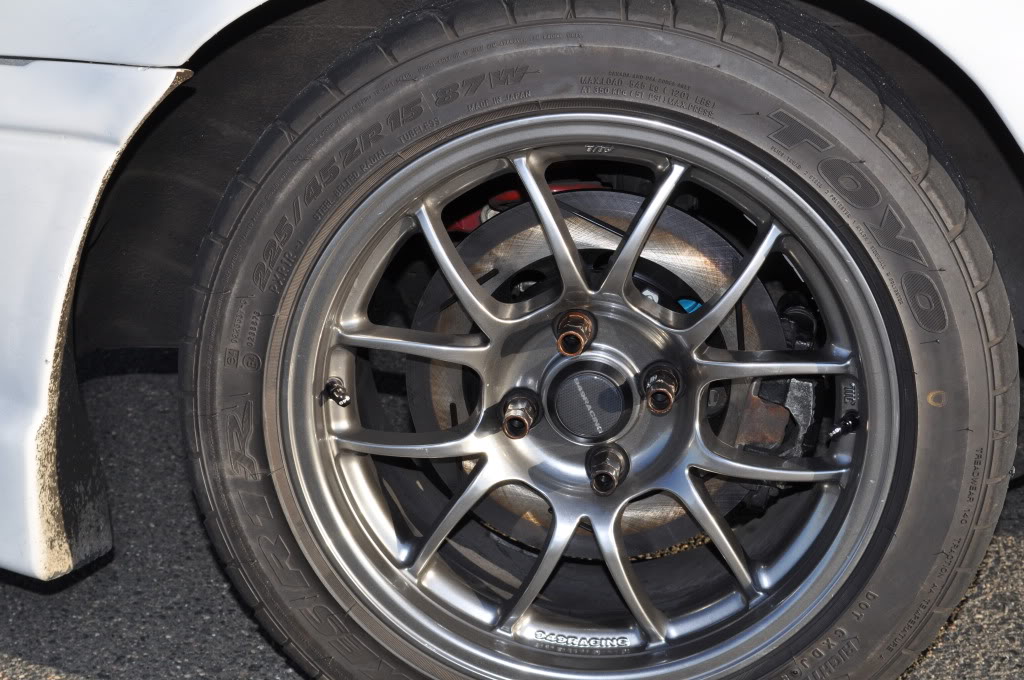

Some new pics of the hood on the car and brake upgrades
Attachment 8020 https://www.v8miata.net/attachment.p...ine=1317854298 http://i278.photobucket.com/albums/k...a/DSC_0819.jpg Attachment 8021 |
very nice! I keep going back an forth on doing an LS2 vs the 5.0. There's just something about the mustang 5.0 sound that can be matched and then you went and supercharged it!
|
Go 5.0. Easier build, more bang for your buck, better sound, more support, more tried and true...Just my humble opinion.
To be fair, I also am pretty wrapped up in the Ford end of this whole thing, my opinion may be a little slanted.. -Jason |
Originally Posted by MRM331
(Post 2690)
Go 5.0. Easier build, more bang for your buck, better sound, more support, more tried and true...Just my humble opinion.
To be fair, I also am pretty wrapped up in the Ford end of this whole thing, my opinion may be a little slanted.. -Jason |
