Default 2000 Miata Project (LS1, T56, Getrag)

Bought my Miata new in 2000. Added some misc goodies along with an MP45 blower. Worked really well, but when I saw an LS conversion... I had to have one. Ended selling the engine & trans to the new owner in Arizona. Called my friend Brad and he soon came up with a used 2004 LS1 & T56 Tremec tranny. Purchased a new Getrag diff & the V8Roadsters kit.

Project took me about three months to complete. Here's some pics & details.

Used LS1 just off the truck
Click the image to open in full size.

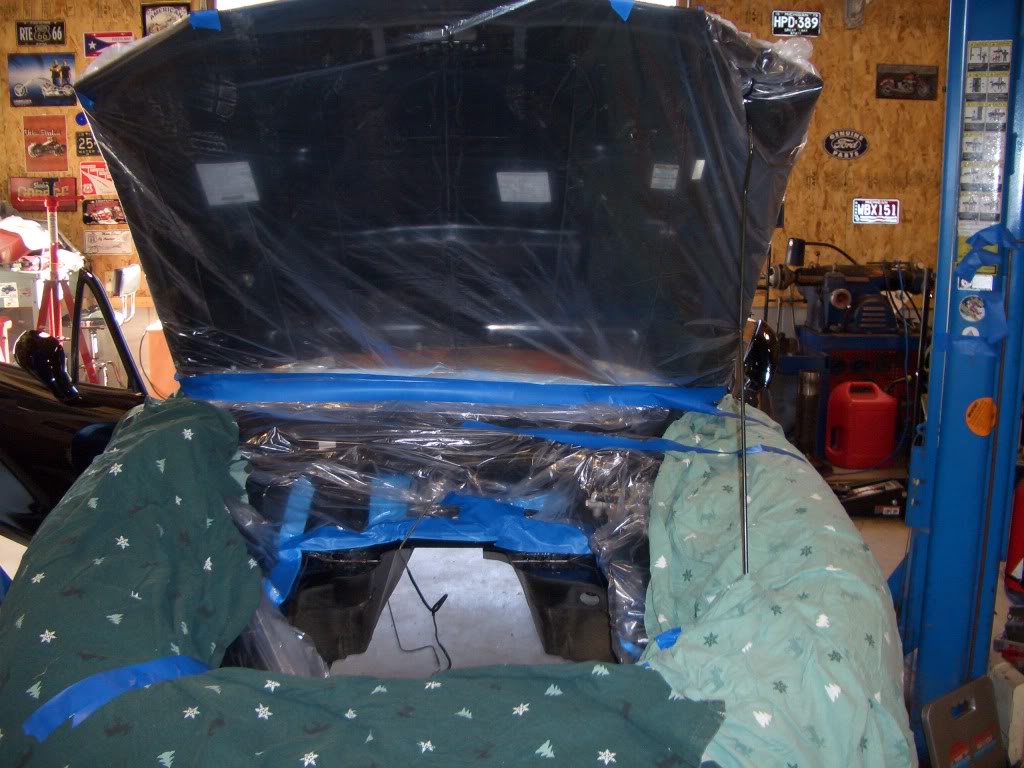

Car & engine bay covered before firewall mods
Click the image to open in full size.

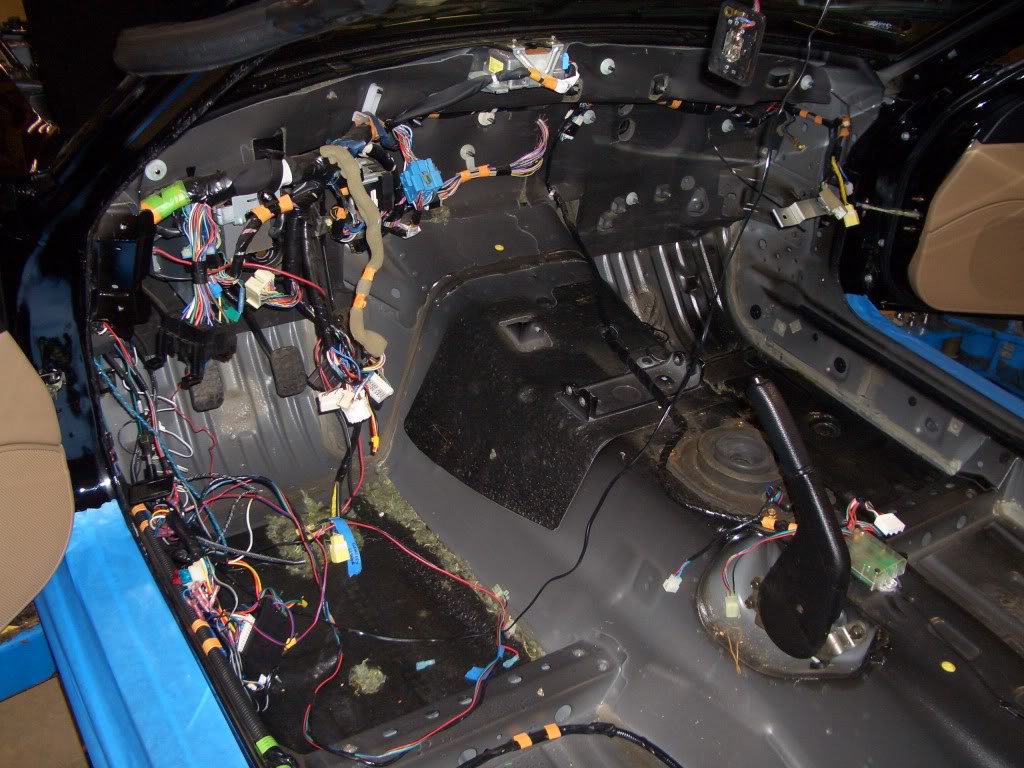

Interior gutted
Click the image to open in full size.

Firewall work compete, primed & painted
Click the image to open in full size.

Gold foil material is suppose to reflect 78% (trying to keep the interior temp down)
Click the image to open in full size.

Machine 0.760" off the alternator bracket to match the LS2 water pump
Click the image to open in full size.

Engine & tranny rebuilt & mounted on V8Roadsters K-member
Click the image to open in full size.

Decided to put together my own harness (won't do that again...)
Click the image to open in full size.

Interior going back together
Click the image to open in full size.

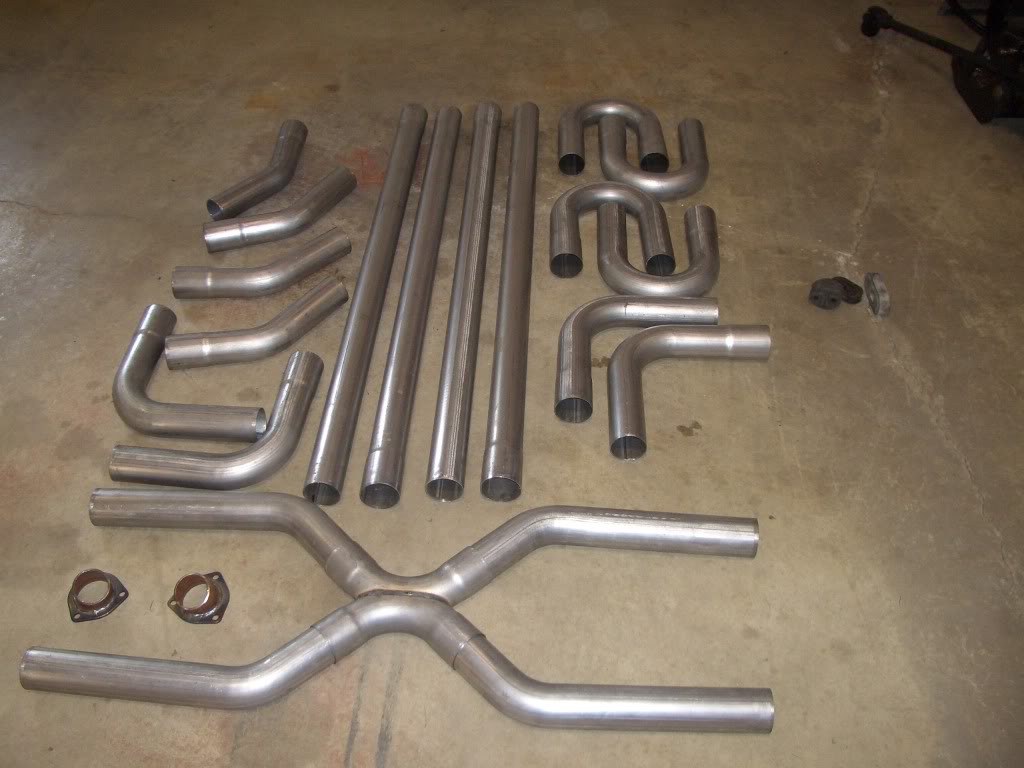

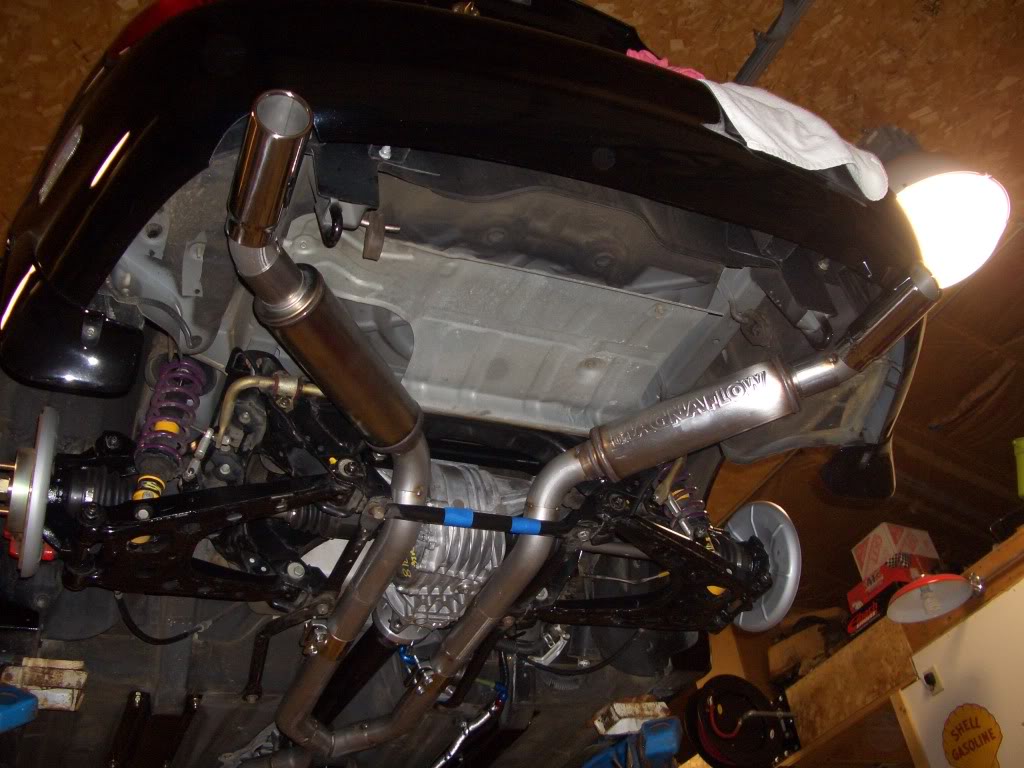

Used a Jegs 2 1/2" universal kit w/cross-over
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

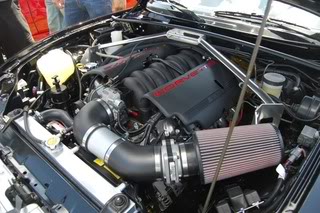

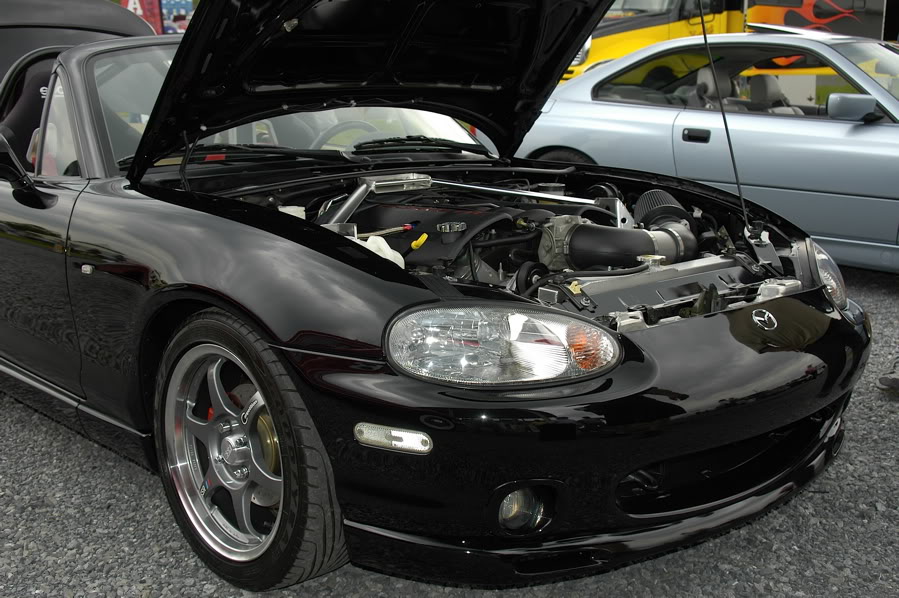

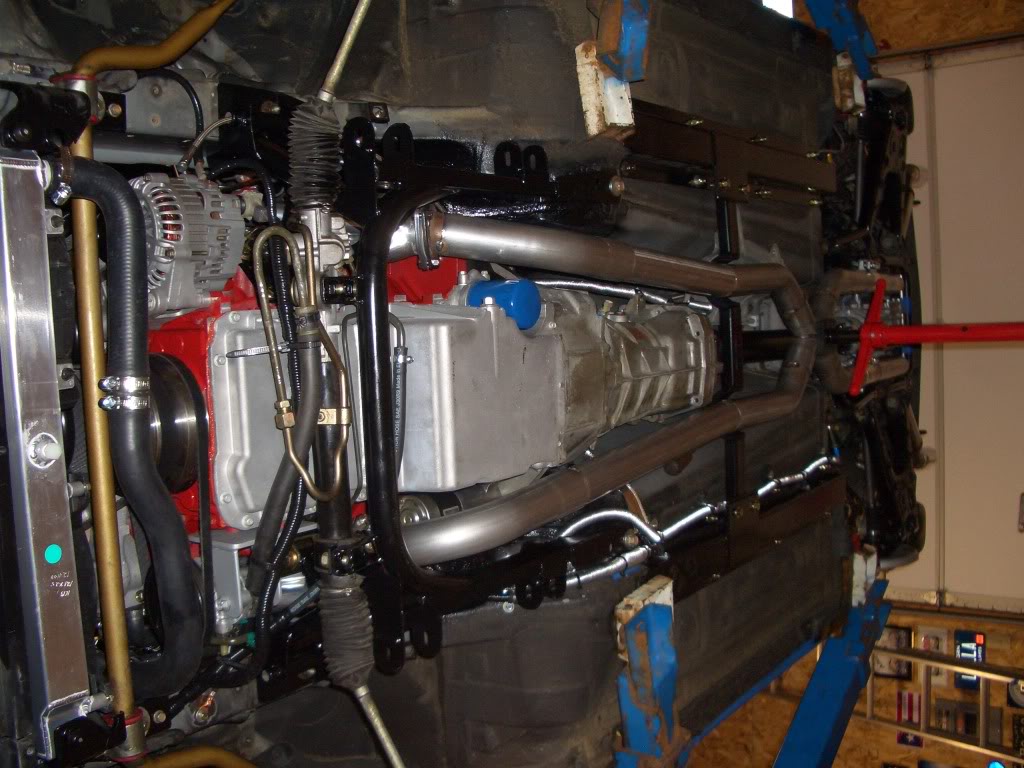

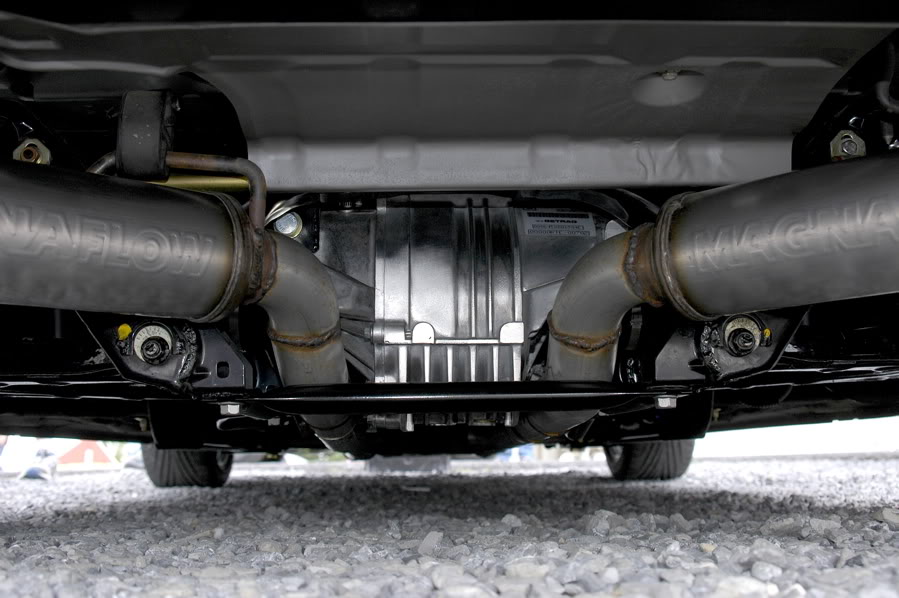

Finished photos
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.


Last edited by chpmnsws6; 03-08-2013 at 11:22 AM..
MX52NR is offline   Reply With Quote
Old 03-06-2013, 11:20 AM   #2
V8 Miata Aficionado

tbone heller's Avatar

Join Date: Mar 2010
Location: Canton, Georgia
Posts: 884
Thanked 13 Times in 12 Posts
Default

That looks good!!
__________________
1991 Miata, 5.0 Ford, Twisted Wedge heads, F-cam, FMS rockers, GT-40 lower intake, 70mm t/b, 80mm MAF, 42lb. injectors, Kenne Bell blowzilla/flowzilla, custom tune by Injected Engineering, 382rwhp/376tq.
tbone heller is offline   Reply With Quote
Old 03-06-2013, 01:16 PM   #3
V8 Miata Habitué

Join Date: Feb 2010
Location: Sarasota, FL
Posts: 200
Thanks: 0
Thanked 1 Time in 1 Post
Default

Very nice!

Is there a part number for that exhaust kit or did you piece it together? I couldn't find it on Jegs website.

Thanks, Mike
cvx_20 is offline   Reply With Quote
Old 03-06-2013, 02:16 PM   #4
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks guys.

Jegs "Street Rod Exhaust Kits"
2 1/4", #555-30670
2 1/2", #555-30671
3", #555-30672

Jegs, Universal X-Pipes
2 1/4", #555-30660
2 1/2", #555-30661
3", #555-30662

I used Sanderson Headers (#V8RLS1-P). Had to dipple the #1 & #7 tubes to clear the steering shaft. Maybe their headers have changed since 2009 to accommodate the shaft?

Good luck with your builds!
MX52NR is offline   Reply With Quote
Old 03-06-2013, 07:14 PM   #5
V8 Miata Participant

Join Date: Oct 2012
Location: Fuquay Varina, NC
Posts: 280
Thanked 6 Times in 6 Posts
Default

Very impressive build. Really like how clean and detailed the motor looks. I guess you painted the alum block red or orange? What suspension, radiator, etc did you elect to use with this LS bundle of joy?
__________________
94 MX5 - LS2 - T56 - V8R kit - 8.8 Diff - FM Goodies
ToySnakePMC is offline   Reply With Quote
Old 03-06-2013, 08:01 PM   #6
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks.

The block was degreased, etched with Purple Power cleaner, rinsed, dried, prepped with thinner, then sprayed with Duplicolor Red Caliper paint.

Other details:
-Spaks coil-overs
-Fly'n Miata competition radiator (stock fans)
-Summit Racing under-drive harmonic balancer
-Custom P/S bracket for Miata pump
-Pro 1 short-shifter
-Getrag differential w/G80 LSD option
-Dual oil pressure sending unit (revised stock gauge & idiot LED next to speedo)
-Heat sheathing throughout the cabin

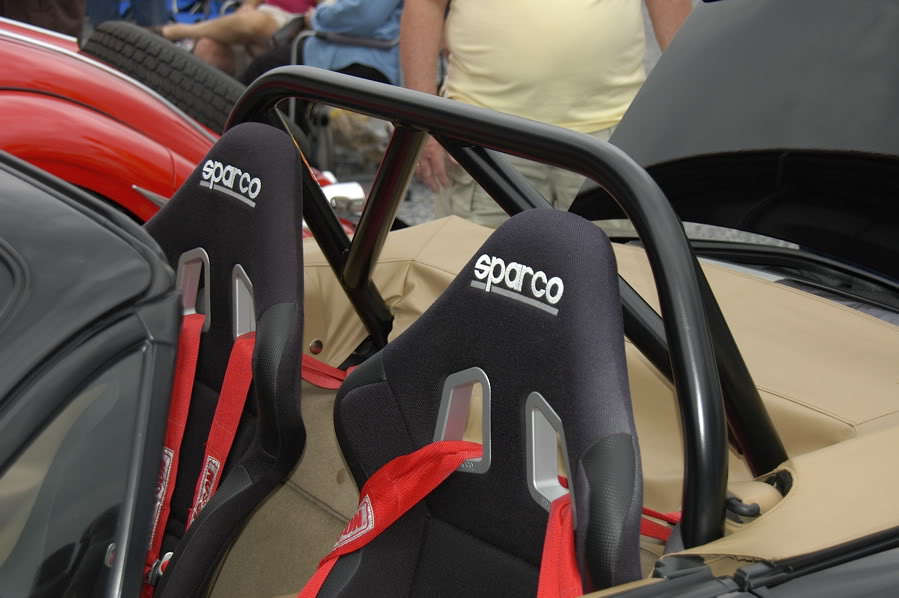

-Sparco, Roadster seats (custom seat brackets)
-Dakota Digital speedo signal converter

I'm sure I missed a few things. The swap has about 14k on it.
Thanks for your interest.
MX52NR is offline   Reply With Quote
Old 03-07-2013, 08:30 AM   #7
Jim Stainer

charchri4's Avatar

Join Date: Jul 2011
Location: Sunny SW Minnesota
Posts: 2,109
Thanked 28 Times in 24 Posts
Default

Wow this is the best build thread I have ever seen! Thank you so much for posting it! What a sweet build. Very well thought out and detailed. I really appriate the numbers on the exhaust and how you approched that. You have given me much hope!!
__________________
Jim Stainer
96 Miata powered by a 2002 Camaro SS
95 Miata automatic all options, mostly stock with a few NB and MG bits but if an LFX auto came along cheap...
http://jimsmiata.blogspot.com/
charchri4 is offline   Reply With Quote
Old 03-07-2013, 04:01 PM   #8
Moderator

Join Date: Nov 2009
Location: Springfield IL
Posts: 442
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Great looking build!
__________________
1990 Smurf blue Miata- V8R equipped.
chpmnsws6 is offline   Reply With Quote
Old 03-07-2013, 04:49 PM   #9
Junior Member

Join Date: Nov 2012
Location: Midland, TX
Posts: 20
Thanks: 0
Thanked 0 Times in 0 Posts
Default

That is a VERY nice build! The work is neatly done, and the finished product is lovely indeed. You do good work, Bro. Thanks for posting this fine thread.

Lynn B.
LynnB is offline   Reply With Quote
Old 03-08-2013, 05:40 AM   #10
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks

Wasn't able to edit the initial post to insert this video? It was taken by someone at a local show.

MX52NR is offline   Reply With Quote
Old 04-03-2013, 07:26 PM   #11
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thought I'd share a few more details.

Used a Getrag differential. There was a service bulletin that addressed fluid leakage through the vent during high temps and high speed usage.

The GM fix to the dealers was to pop the top off the vent, attach a 12" piece of hose, insert a new vent at the other end and wire-tie approx. 4" above the original point.

I took a slightly different angle.
Removed the stock vent and machined a spool piece which was pressed in place
Click the image to open in full size.

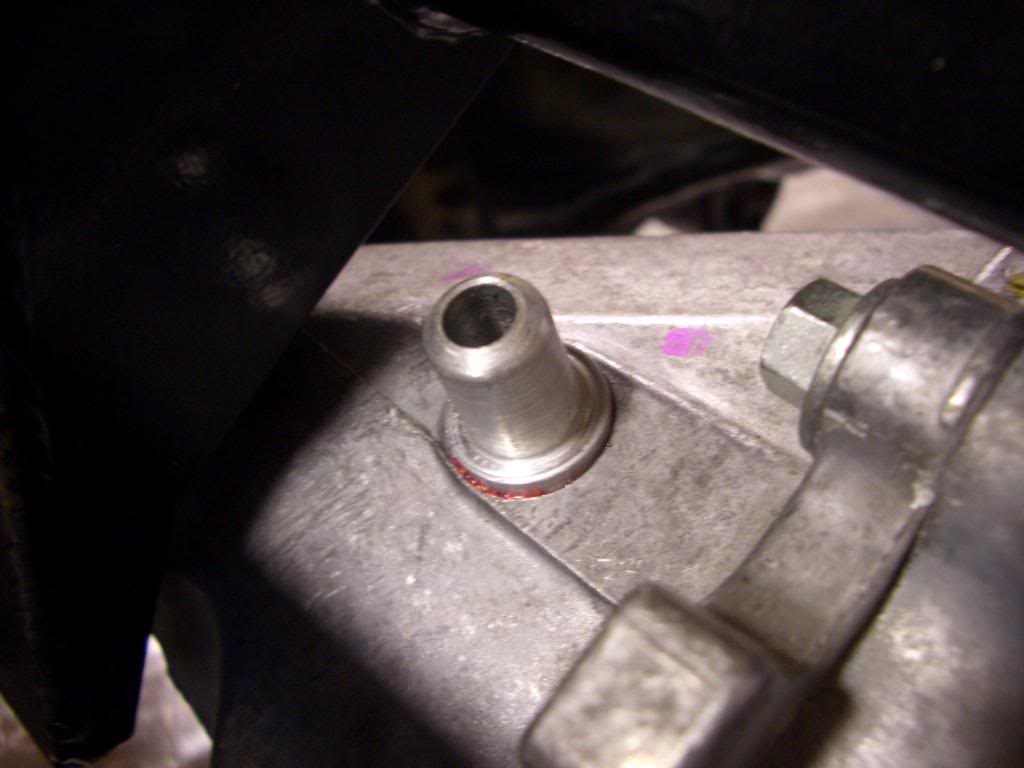

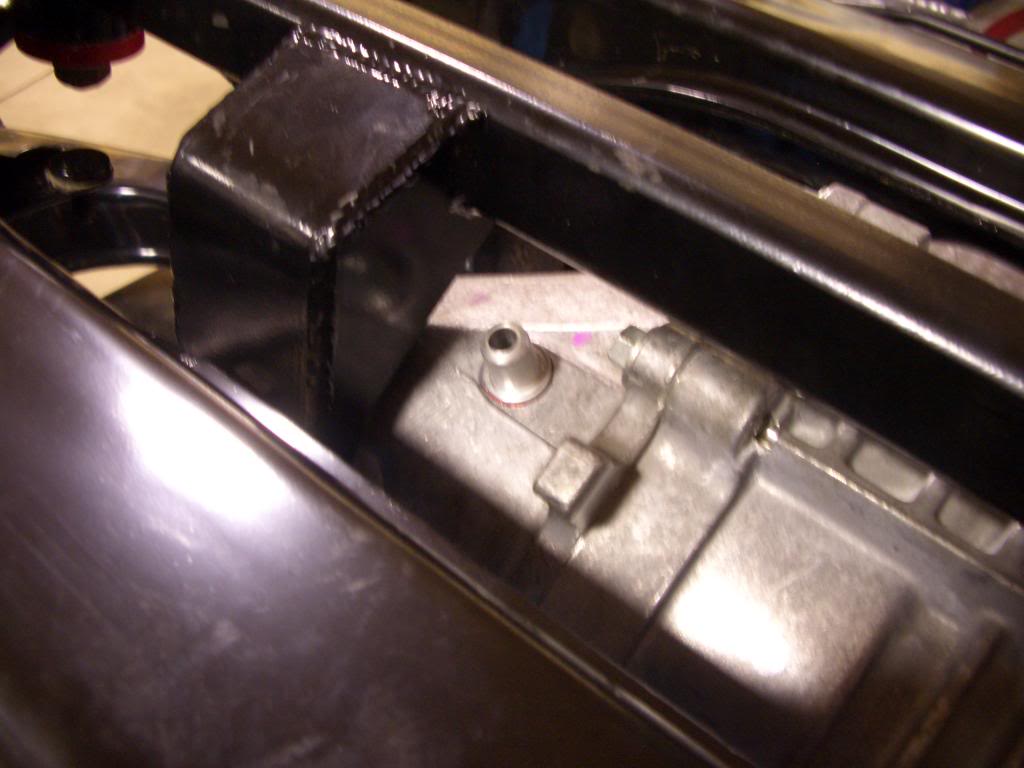

Here's a close up. Red stuff is loctite sealer
Click the image to open in full size.

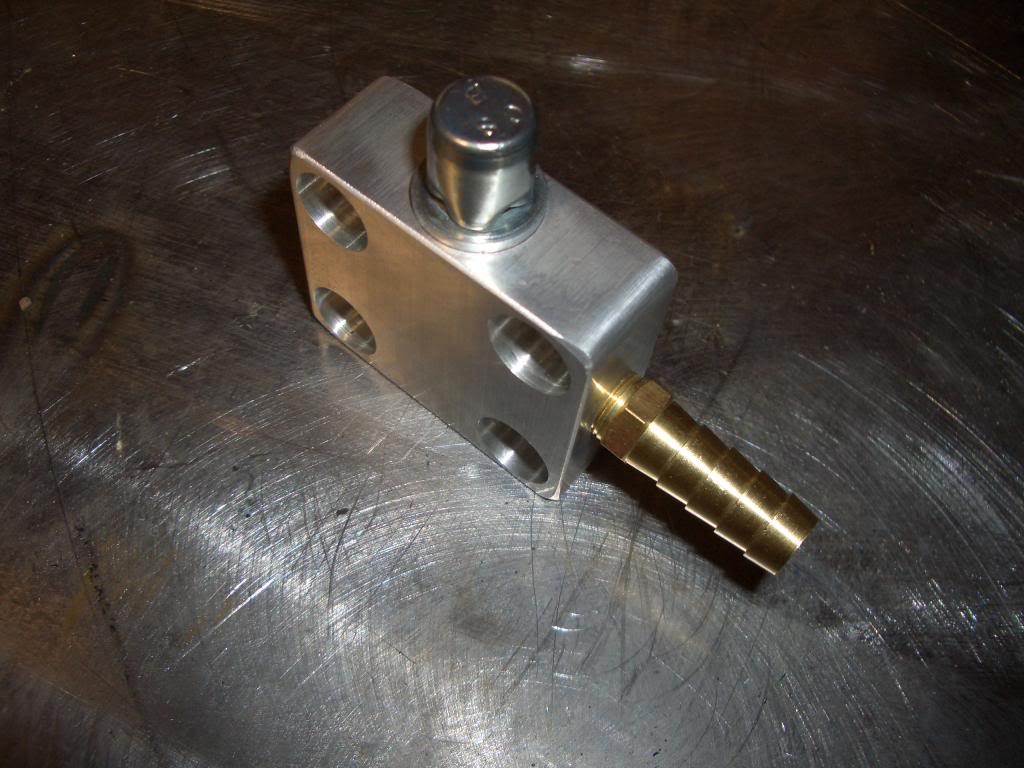

Machined an aluminum block to accept the stock vent and threaded barbed hose fitting.
Click the image to open in full size.

Mounted it above the differential sub-frame, on the frame header, ran a hose to the diff.
Click the image to open in full size.

Some choose to "delete" the power steering. I'm too soft; so P/S was a must.

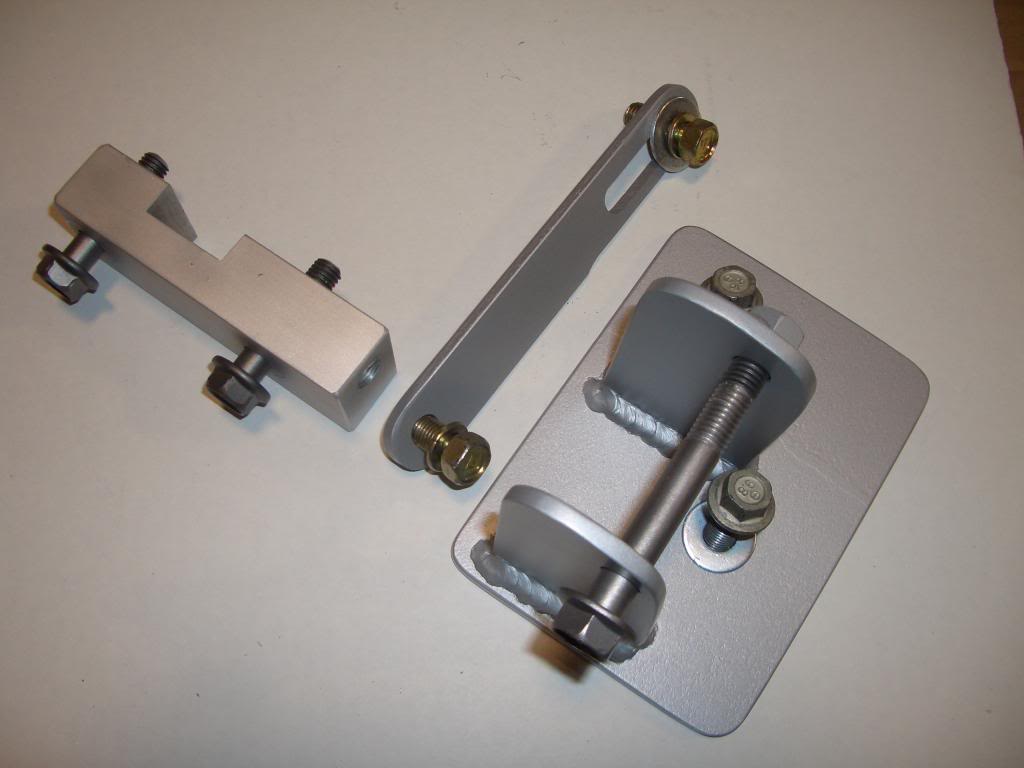

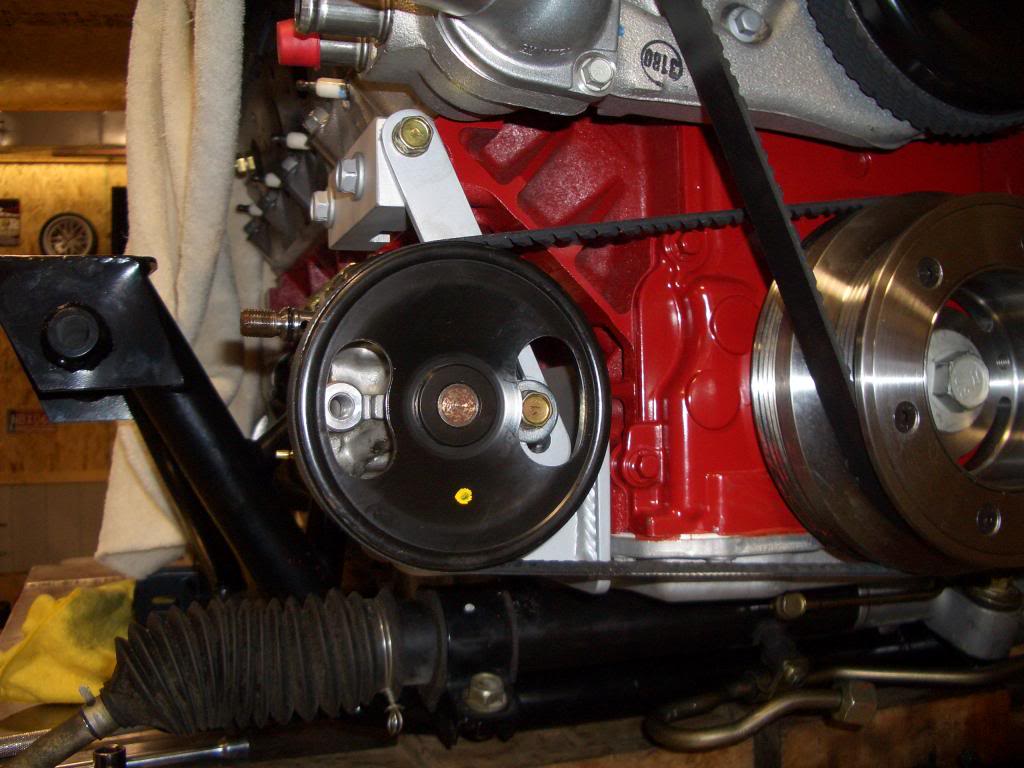

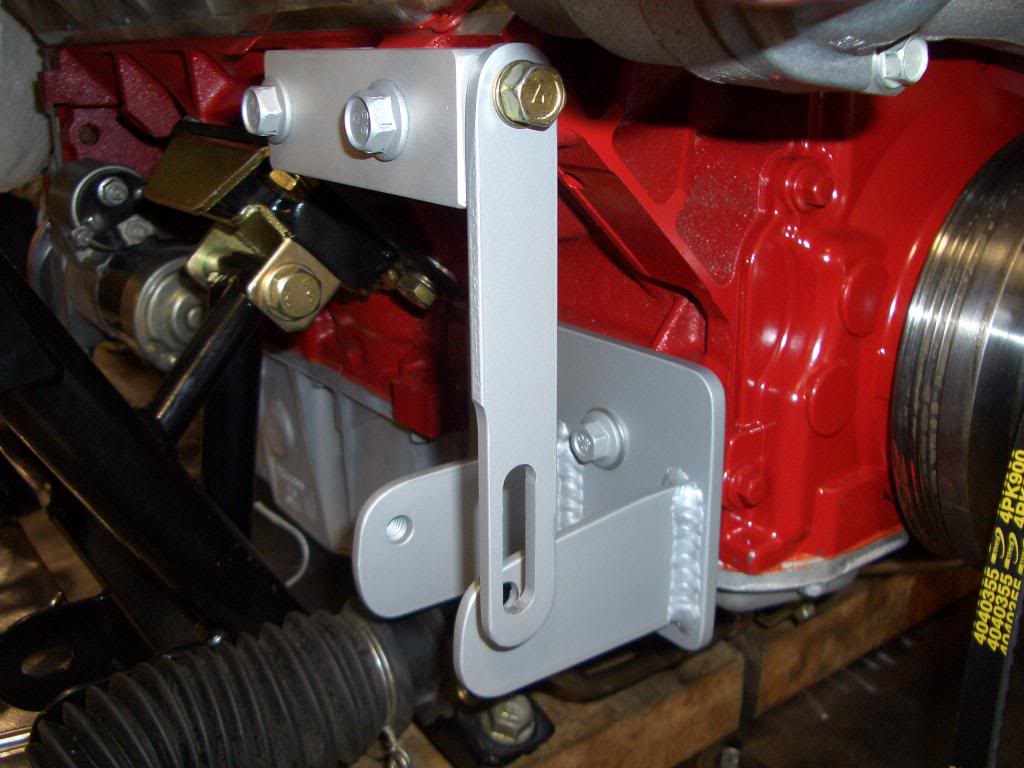

Here's the bracket I made and how it fits (stock Miata pump)
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

The V8Roadsters kit came with a couple of plates to mount the differential. I had to first notch out one of the plates, then set the pinion angle, then tack the plates in place
Click the image to open in full size.

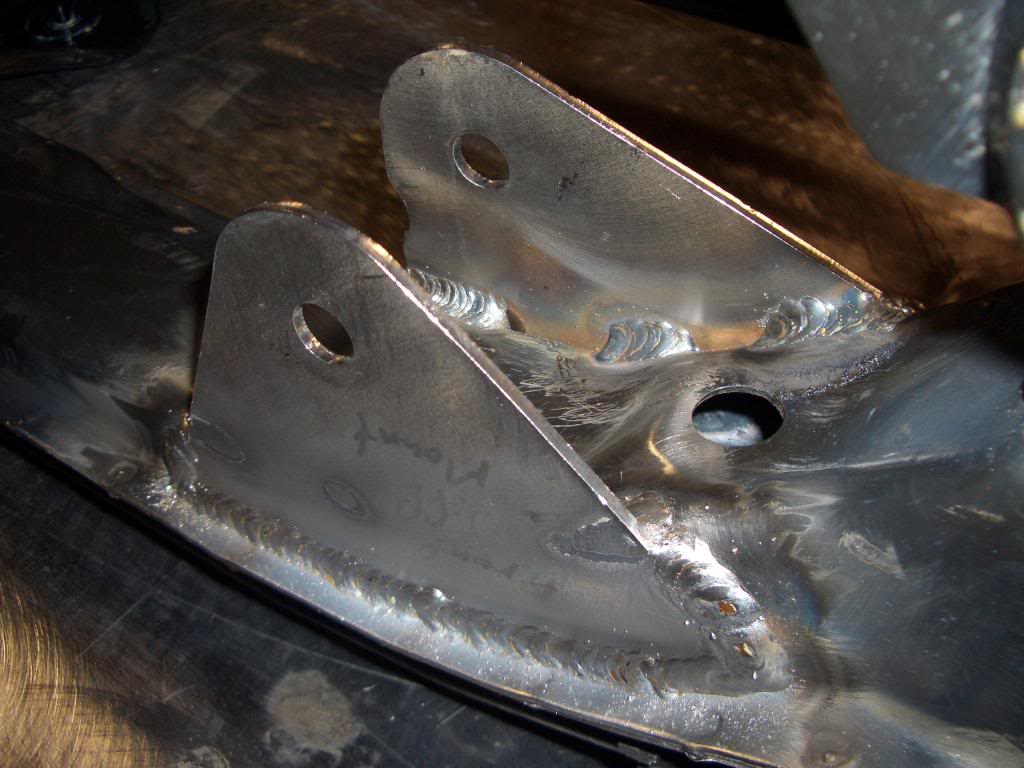

Completed welding
Click the image to open in full size.

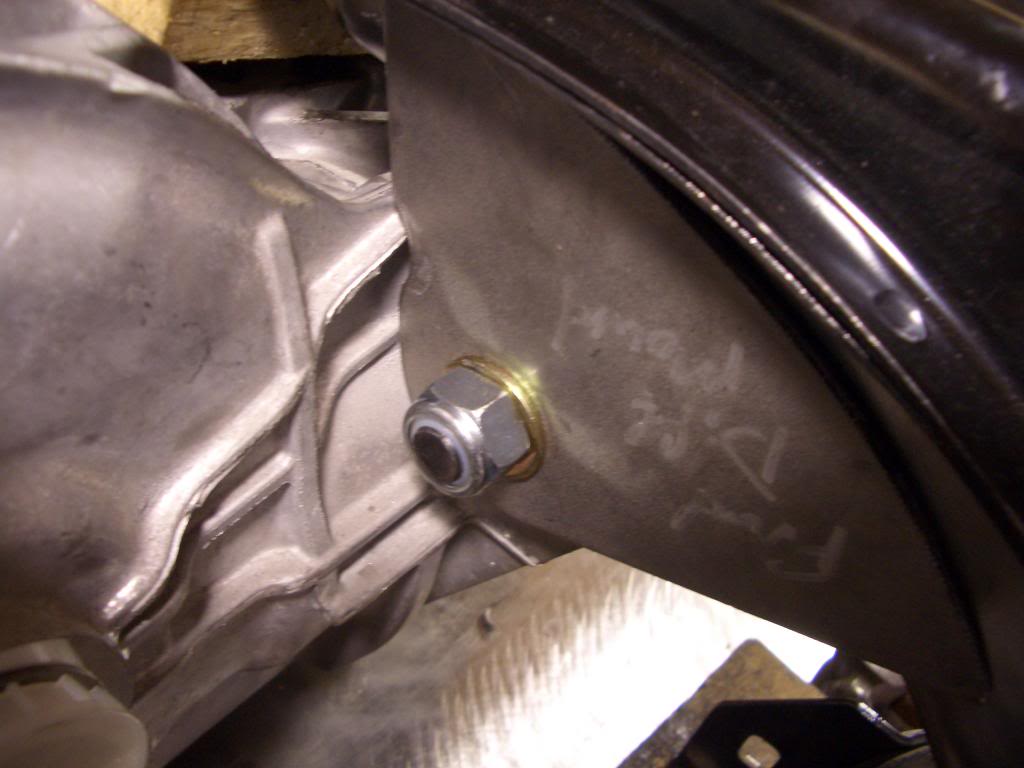

Diff with bracket in place. Ready to be installed in the car.
Click the image to open in full size.

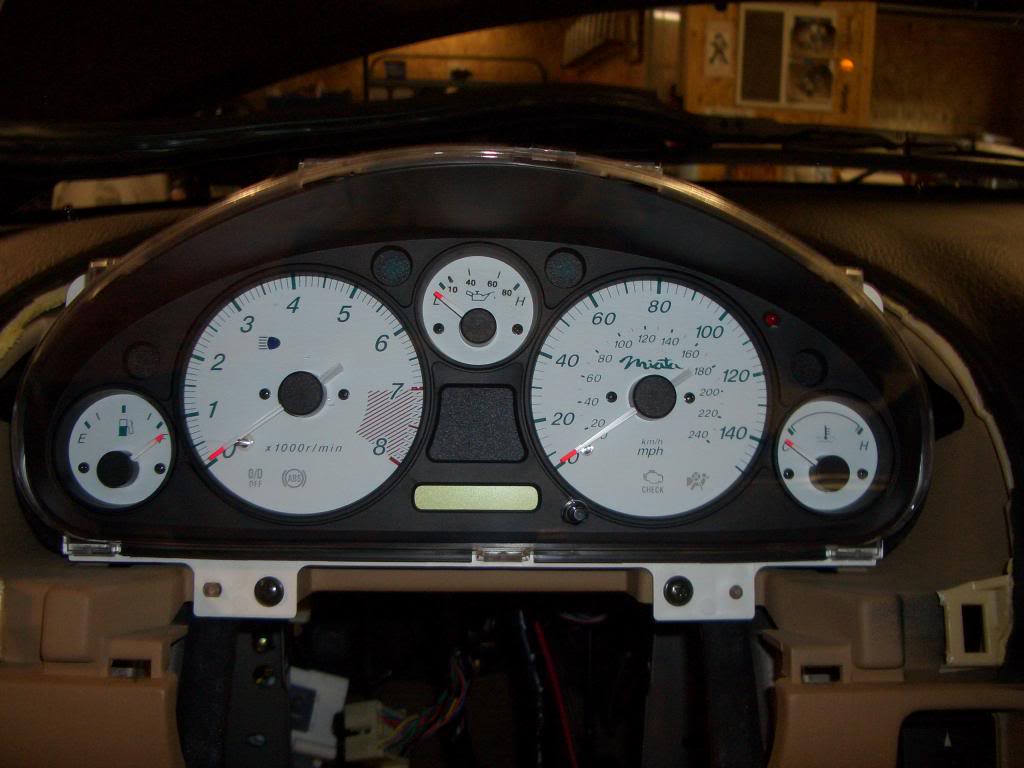

The car came with an "idiot" oil pressure gauge. It only registered one position once oil pressure was established. Found where others used a couple of 180 ohm resistors in the gauge & a new sending unit to have a functional gauge. I took a step further and used a dual sending unit and installed a red LED (just to the right of the speedo, 110mph). The LED is now the idiot light. Goes out when oil pressure exceeds 12psi.
Click the image to open in full size.
MX52NR is offline   Reply With Quote
Old 04-10-2013, 07:38 AM   #12
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

My tranny was off an '04 GTO. Didn't know it at the time, but the GTO T56 has a longer shifter shaft than the standard F body model. Since I already had the Pro One short shifter for a F body; decided to shorten the shaft, but first had to grind the hardening from the shaft before drilling the new hole. Remember this part well because a couple of my friends were over, and they kept telling me I was crazy... "just get the shifter for the GTO". I'm stubborn. Took the right size drill, inserted in the original hole (tight fit). Used this as a reference so I could line up the new hole (13mm forward). Wanted it to be at the same angle. Took me about 3 hrs, and countless visits with the Drill Doctor (sharpening). After the hole was drilled; I used my Dremel tool with a cut-off wheel and removed the 13mm to make it work. Dressed up the end, blew out the shavings & dust, then installed the short shifter. Works great!

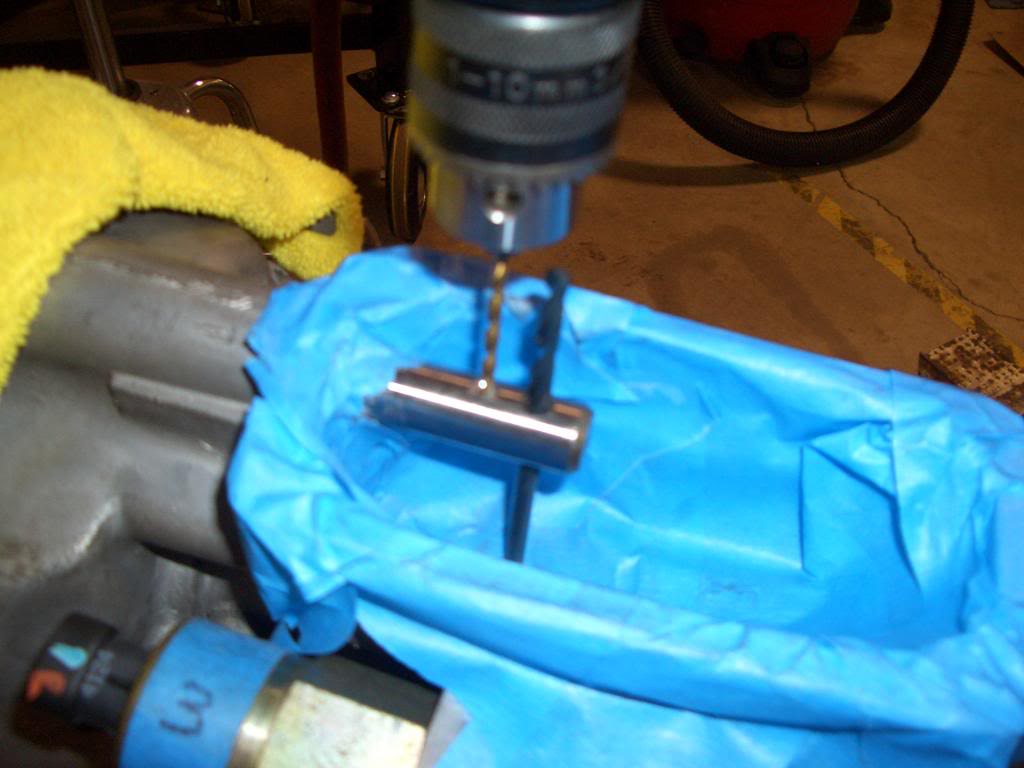

Here's a pic after taping, grinding the hardness off, and then setting the drill to make the new hole.
Click the image to open in full size.

Last edited by MX52NR; 04-10-2013 at 07:46 AM..
MX52NR is offline   Reply With Quote
Old 04-10-2013, 07:43 AM   #13
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

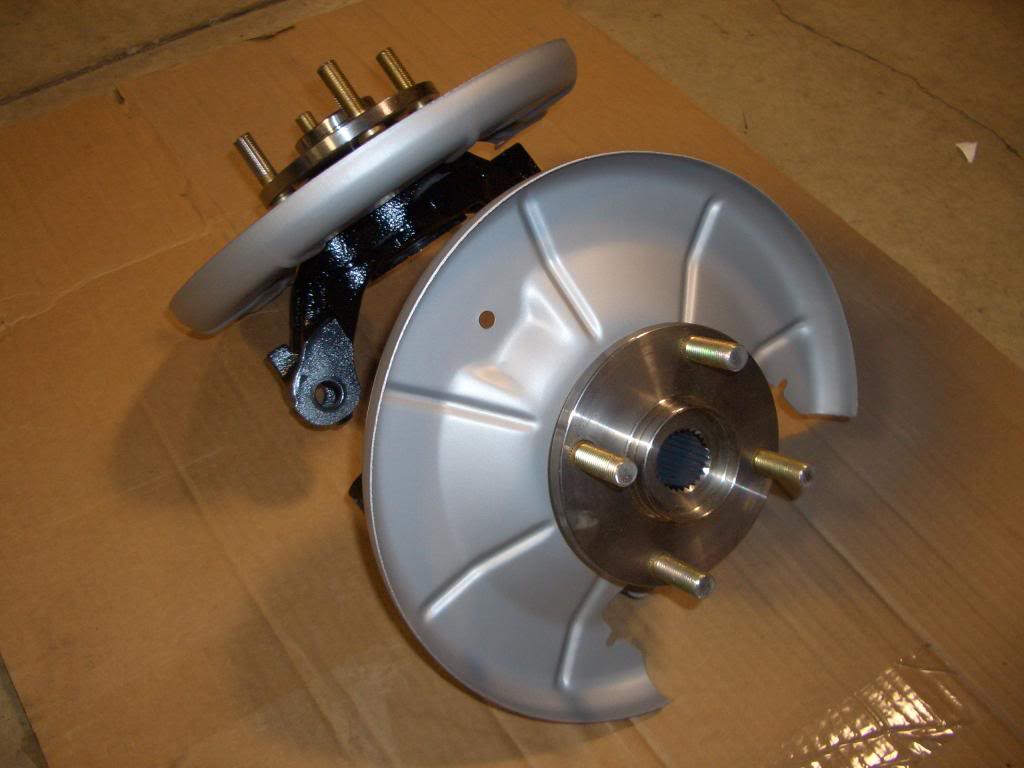

The V8Roadster kit came with new hubs, bearings & ARP studs.

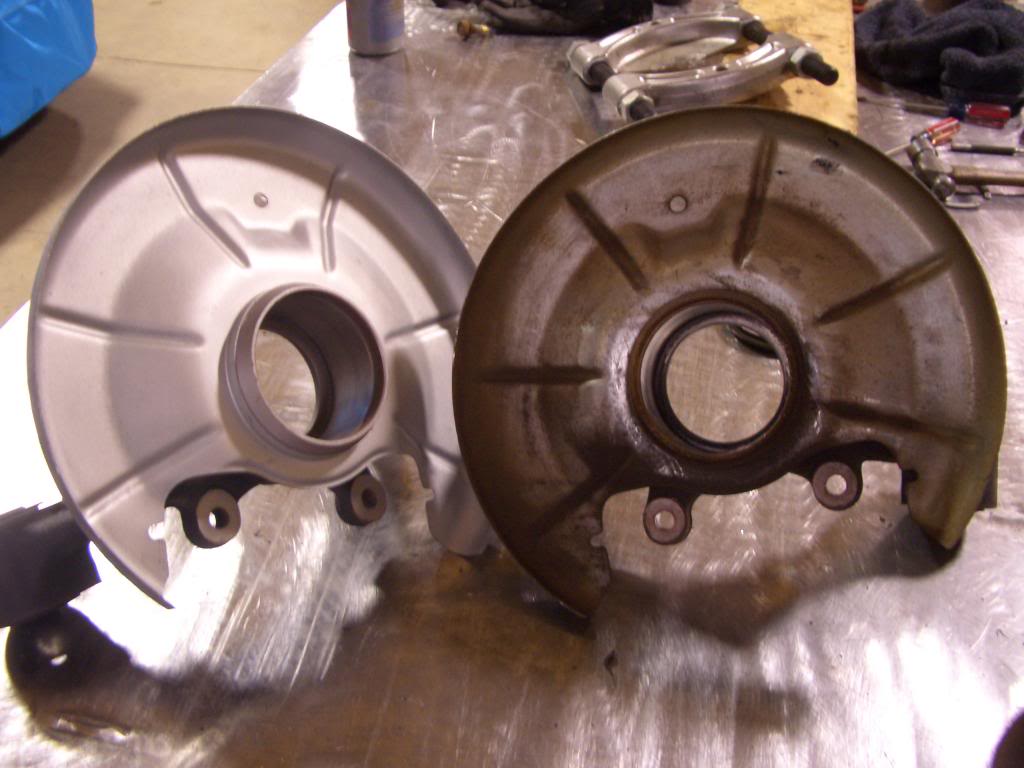

Before & during dis-assembly
Click the image to open in full size.

After w/new parts & paint
Click the image to open in full size.
MX52NR is offline   Reply With Quote
Old 10-29-2013, 04:25 PM   #14
Senior Member

Join Date: Sep 2013
Location: Upstate South Carolina
Posts: 102
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Really enjoying this sweet build. Any word on current state of build or car?
Old Chuck is offline   Reply With Quote
Old 10-30-2013, 03:38 AM   #15
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Conversion was finished in May/2009. I've got about 16,000 miles on it since. No problems. Thinking about replacing the Sparco seats for the original seats (modified - low back, with new upholstery to mimic the bomber types).
MX52NR is offline   Reply With Quote
Old 01-30-2015, 04:25 PM   #16
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Winter is in full swing here, but we did have a couple of 40deg days in December. I like to fire up the vehicles every now & then.

I'm technically challenged when it comes to video, but here's a short clip of the Miata.

MX52NR is offline   Reply With Quote
Old 01-30-2015, 04:54 PM   #17
V8 Miata Follower

Join Date: Jun 2013
Location: OH, the Arctic rain forest
Posts: 115
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Looks good. Get 'er to The Mitty w/ all of us in April.
__________________
03 Munster

1 of 1 V8 Miata designed to & capable of putting power to pavement.
523-LSX-NB is offline   Reply With Quote
Old 01-31-2015, 10:06 AM   #18
V8 Miata Participant

Join Date: Jul 2013
Posts: 263
Thanks: 0
Thanked 1 Time in 1 Post
Default

Love your work. Looks really nice. I really like the strut tower brace. Do you remember what brand/model that is?
WolfGT is offline   Reply With Quote
Old 01-31-2015, 11:01 AM   #19
V8 Miata Habitué

Join Date: Jun 2014
Location: Moorhead, MN
Posts: 225
Thanks: 0
Thanked 1 Time in 1 Post
Default

Nice job mate. Do you think that gold foil works, or just not possible to tell? Good idea either way. Aluminum on the interior side works alright.
V8droptop is offline   Reply With Quote
Old 02-01-2015, 10:41 AM   #20
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Thanks guys

Can't make the Mitty, got something on the calendar already. Maybe some other event?

Strut tower brace is from Moss Miata and still available. Its made for the stock Miata engine with the MP45 blower, so it's offset to the drivers side. The cool feature is the center attachment point mounts to the firewall with its own brace.
MossMiata.com - Parts & Accessories for Your Mazda Miata

Didn't do a before & after test, but the foil patent was released by NASA. It's about the only thing that would work with tight clearances. Cnet.com was selling it back in 2009.
MX52NR is offline   Reply With Quote
Old 02-01-2015, 10:53 AM   #21
Member

Join Date: Mar 2013
Location: Lawton, Michigan
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Did some searching on the foil...

Test video.... ?

Where to purchase. I'm sure there's other vendors
http://www.full-race.com/store/therm...tive-film.html

Last edited by MX52NR; 02-01-2015 at 10:57 AM..
MX52NR is offline   Reply With Quote
Old 02-03-2015, 10:16 AM   #22
V8 Miata Habitué

Join Date: Jun 2014
Location: Moorhead, MN
Posts: 225
Thanks: 0
Thanked 1 Time in 1 Post
Default

Right, but its supposed to reflect radiant heat, not withstand fire. Wouldn't call it overly scientific of a test, but in reading up in it, I can see the engine bay being an ideal place for it. It should keep heat in the engine bay from transmitting through the firewall, if you cover the areas hot air is going to pass through. The highest efficicency stuff, in the 90s, would basically make it never hot in the passenger compartment. My transmission tunnel used to be screaming hot with my turbo after a hard run of it. I think your use is sound, I wouldn't have thought of it myself. I can see that it is common in motorsports and a few different car makes where turbo heat kills electronics.

Last edited by V8droptop; 02-03-2015 at 10:20 AM..
V8droptop is offline   Reply With Quote
Old 02-03-2015, 10:31 AM   #23
V8 Miata Habitué

Join Date: Mar 2012
Location: Greenville, SC
Posts: 206
Thanks: 0
Thanked 4 Times in 4 Posts
Default

I've used the DEI Silver Reflect-a-Cool to line the interiors of all of my Cobra replica builds. The tape shown is for seaming the same (also available in the silver). Line the entire interior of your Monster Miata build, then place your carpet over the top and you'll love it right from the start.



Bill S.
mrmustang is offline   Reply With Quote



submit to reddit
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
How to connect LS driveshaft to Getrag Differential Gunpilot V8 Miata Drivetrains 11 05-29-2015 09:41 AM
Getrag diff identification needed Van B V8 Miata Drivetrains 1 03-01-2015 10:34 PM
Breeding a 2000 Miata with a '93 5.0 Mustang (Jacksonville, FL) qurtrn10 Introductions 8 10-01-2014 02:34 PM
LS2/T56/Getrag Swap Saying Hello Staffah Introductions 3 12-30-2013 12:39 PM
99 Miata LS1 Swap Project - SOLD - wally5.0 Cars For Sale 5 04-21-2013 08:39 PM


All times are GMT -5. The time now is 11:53 AM.
